HYDRAULIC SYSTEM
8. Install the seal and the back-up ring following
steps 3 and 4.

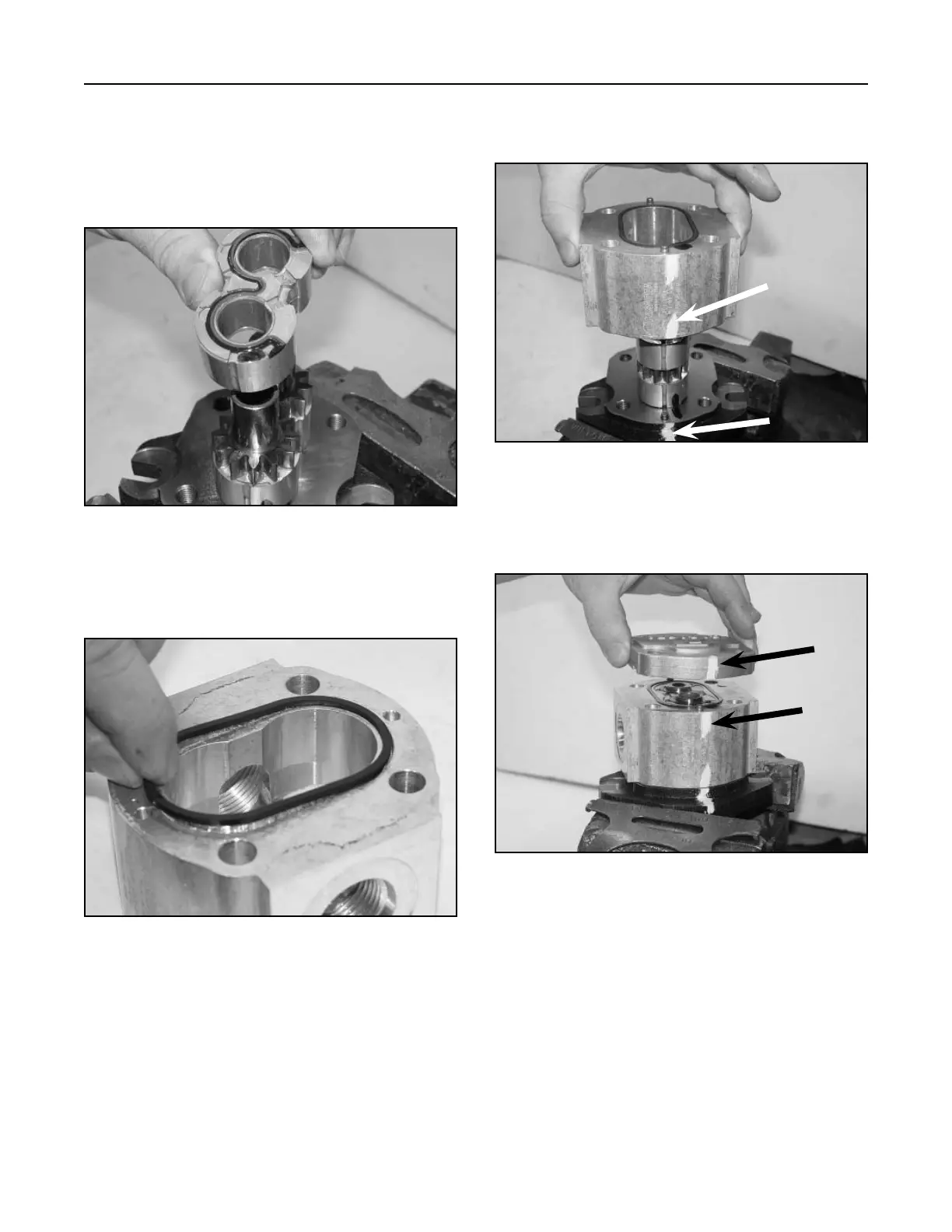

9. Lubricate and install the thrust plate with the
seals facing the rear cover and the alignment
mark facing you (Fig. 181).
Figure 181 DSC-1489
10. Lubricate and install new seals on the both ends
of the body (Fig. 182).
Figure 182 DSC-1490
11. Install the body on the front cover, making sure
the marks are aligned (Fig. 183).
Figure 183 DSC-1491
12. Install the rear cover on the body; again, make
sure the marks are aligned (Fig. 184).
Figure 184 DSC-1492
