Toro ProLine H600 - Page 68

g434467

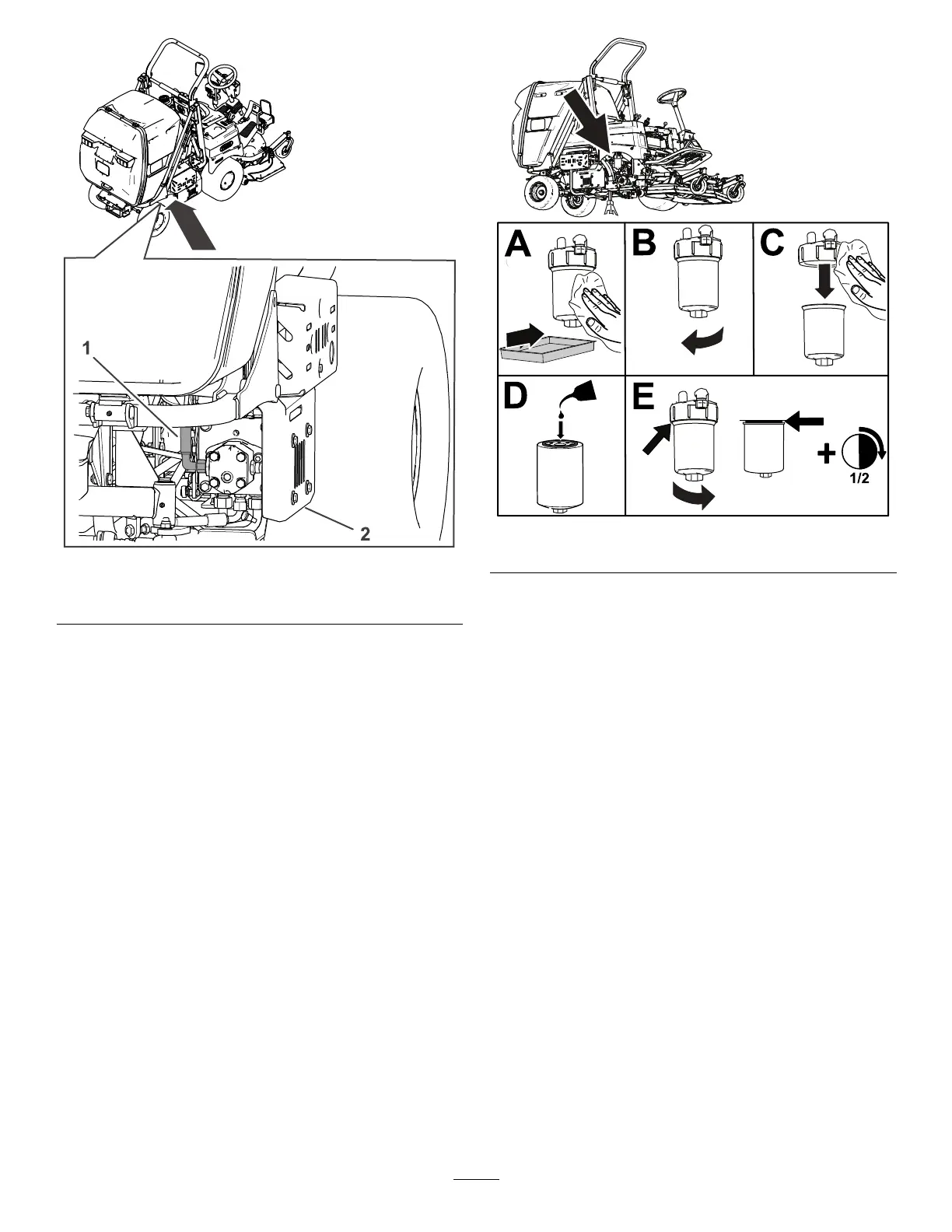

Figure 84
1. Hydraulic hose
2. Cover
6. Remove the front right tire.
7. Replace the hydraulic lter as shown in Figure
85 .
g435853
Figure 85
8. Add the specied hydraulic uid into the ll tube
until you can see that the uid level is between
the 2 marks the dipstick ( Figure 82 ).
Important: Do not ll the hydraulic tank
with hydraulic uid above the upper mark in
the dipstick.
9. Install the front right tire; refer to T orquing the
Wheel Lug Nuts ( page 58 )
10. Start the engine, cycle the steering wheel and
deck-lift cylinders, and check for uid leaks.
Allow the engine to run for about 5 minutes, then
shut it of f.
1 1. After 2 minutes, check the level of the hydraulic
uid; refer to Checking the Hydraulic-Fluid Level
( page 67 ) .
68
