Toro ProLine H800 Service Manual

ServicingtheBladeSpindle
g290843

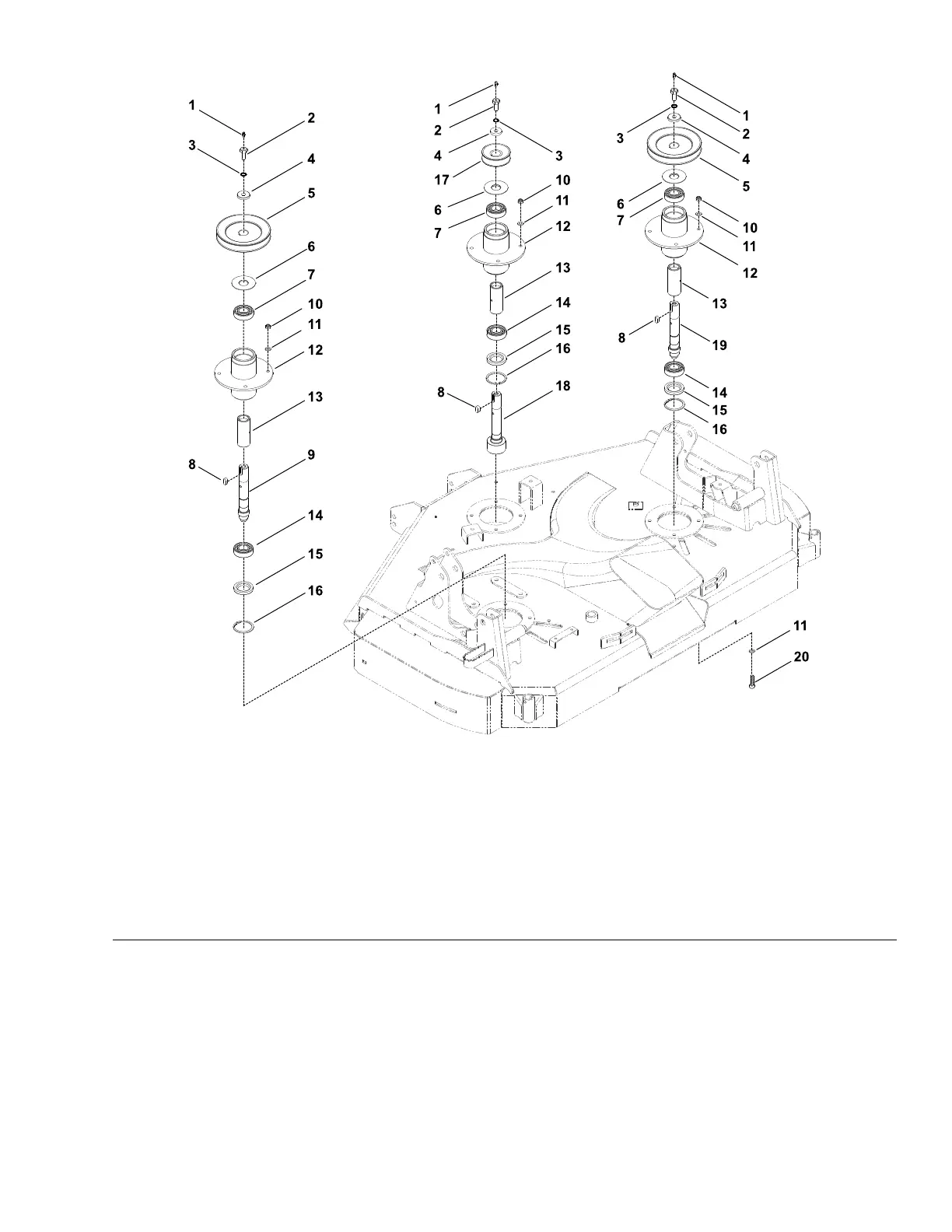

Figure180
1.Greasetting8.Shaftkey15.Oilseal
2.Bolt
9.LHspindleshaft
16.Retainingring
3.Seal
10.Nut17.Pulley
4.Thrustwasher11.Washer
18.Centerspindleshaft
5.Pulley
12.Spindlehub19.RHspindleshaft
6.Cover13.Spacer20.Socketheadscrew
7.Bearing14.Bearing
DisassemblingtheBladeSpindle
1.Removethegreasetting(1)fromthebolt(2).
2.Removethebolt(2),seal(3)andthrustwasher(4)thatsecuresthepulley(5
or17)tothespindleshaft.
3.Slideandremovethepulleyfromthespindleshaft.
4.Locateandretrievetheshaftkey(8).
5.Removethecover(6)fromthespindlehub.
ProLineH800
Page10–9
CuttingUnit:ServiceandRepairs
19241SLRevB
