Rev. A
Reelmaster 5200-D/5400-D Page 5 - 3 Electrical Systems
Toro Automated Control Electronics Diagnostic Tool
Diagnostic ACE Display
The diagnostic display is connected to the wiring
harness connector located inside the control console to
help the user verfiy correct electrical functions of the ma-
chine (Fig. 3 and 4).
ACE Display (Toro Part No. 85-4750)
Overlays for RM 5200/5400:
Unit Serial No. 80001 -209999999
(Toro Part No. 100-3700)
Unit Serial No. 210000001 & Up
(Toro Part No. 104-9270)
Note: Overlays in Dutch, Finish, Italian, German,
French, Danish, Japanese, Norwegian, Polish, Span-
ish, and Swedish are available. Refer to Reelmaster
5200-D/5400-D Parts Catalog.

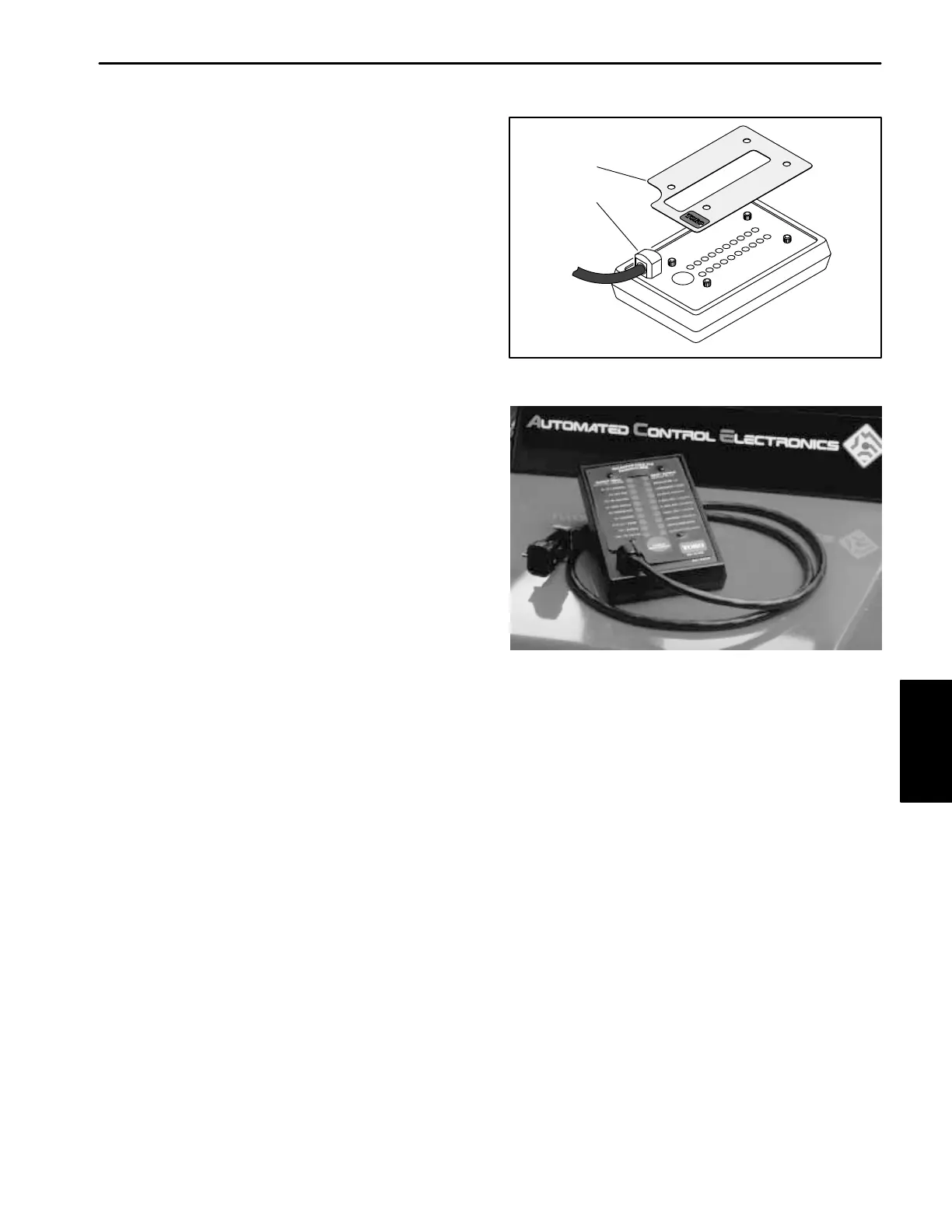

Figure 3
Overlay
Diagnostic
ACE Display
Figure 4
Electrical
System
