Reelmaster 5200-D/5400-DHydraulic System Page 4 - 6
Check Transmission Fluid
The front axle housing acts as the reservoir for the trans-
mission. The transmission and axle housing hold about
5 quarts (4.7 L) of Mobil 424 hydraulic fluid. Check level
of transmission oil daily.
1. Position machine on a level surface, lower cutting
units, and stop the engine.
2. Remove floor panel.
3. Unscrew dipstick cap from the transmission filler
neck; wipe it with a clean rag. Screw dipstick into filler
neck. Remove dipstick and check level of oil. If level is
not within 1/2 inch (1.3 cm) from the groove in the dip-
stick, add enough oil to raise the level to the groove
mark. Do not overfill by more than 1/4 inch (0.6 cm)
above the groove.
4. Screw dipstick filler cap finger-tight onto filler neck.
It is not necessary to tighten cap with a wrench.

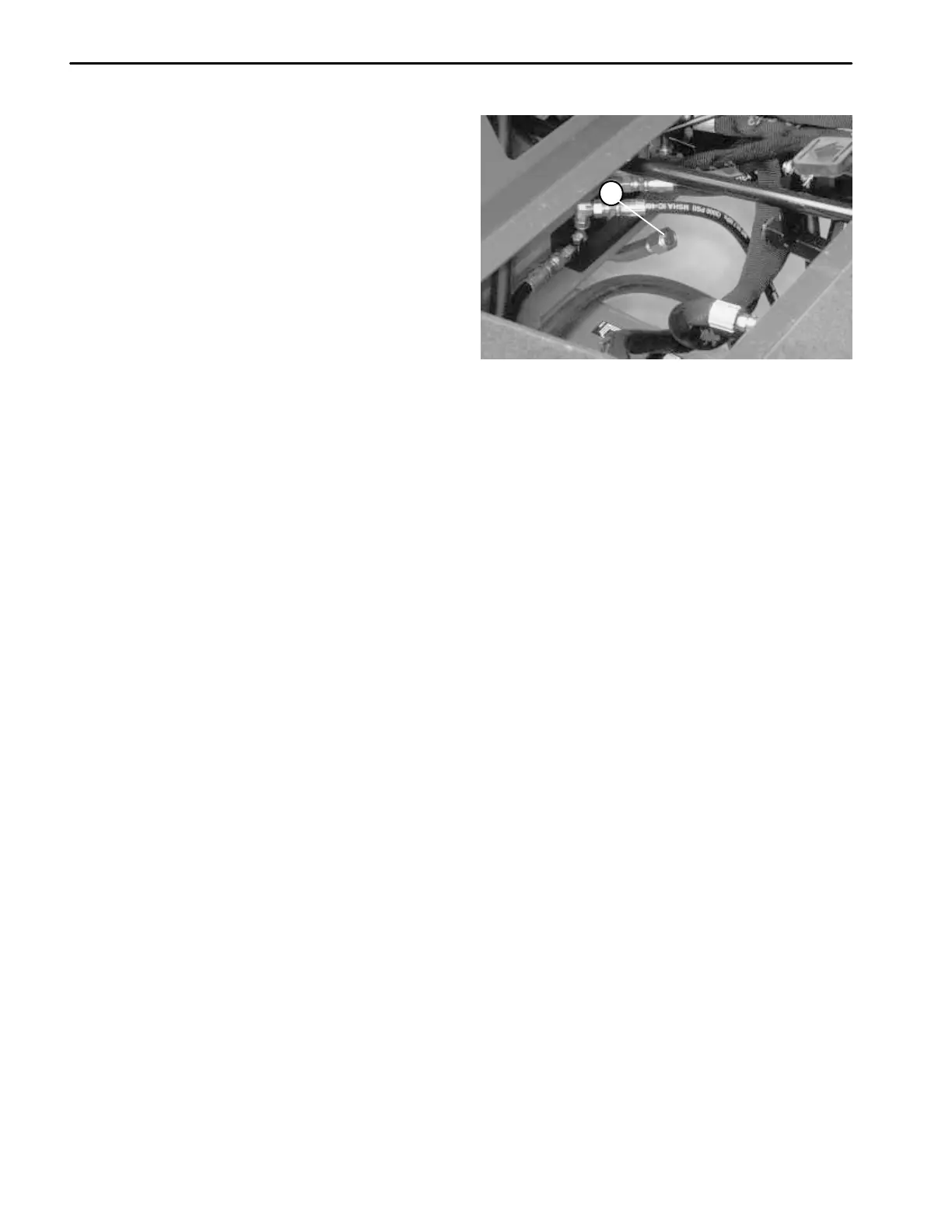

1. Transmission dipstick cap
Figure 8
1
