Toro Reelmaster 5200-D Service Manual

Reelmaster 5200-D/5400-DSteering and Brakes Page 7 - 10
Service and Repairs
Steering Wheel
Removal
1. Remove cover from center of steering wheel.
2. Remove the locknut that secures the steering wheel
to the shaft. Pull the steering wheel and foam seal off the
steering valve shaft (Fig. 14).
Note: It may be necessary to use a jaw-type puller to
remove the steering wheel from the steering shaft.
IMPORTANT: DO NOT hit the steering shaft with a
hammer. This could damage the steering valve com-
ponents.
Installation
1. Use the steering wheel to put the rear wheels in the
straight ahead position.
2. Slide the foam seal and the steering wheel onto the
steering shaft and secure the steering wheel in place
with the jam nut (Fig. 14). Tighten the nut to 10 to 15 ft-
lbs. (13 to 20 Nm).
3. Install steering wheel cover.

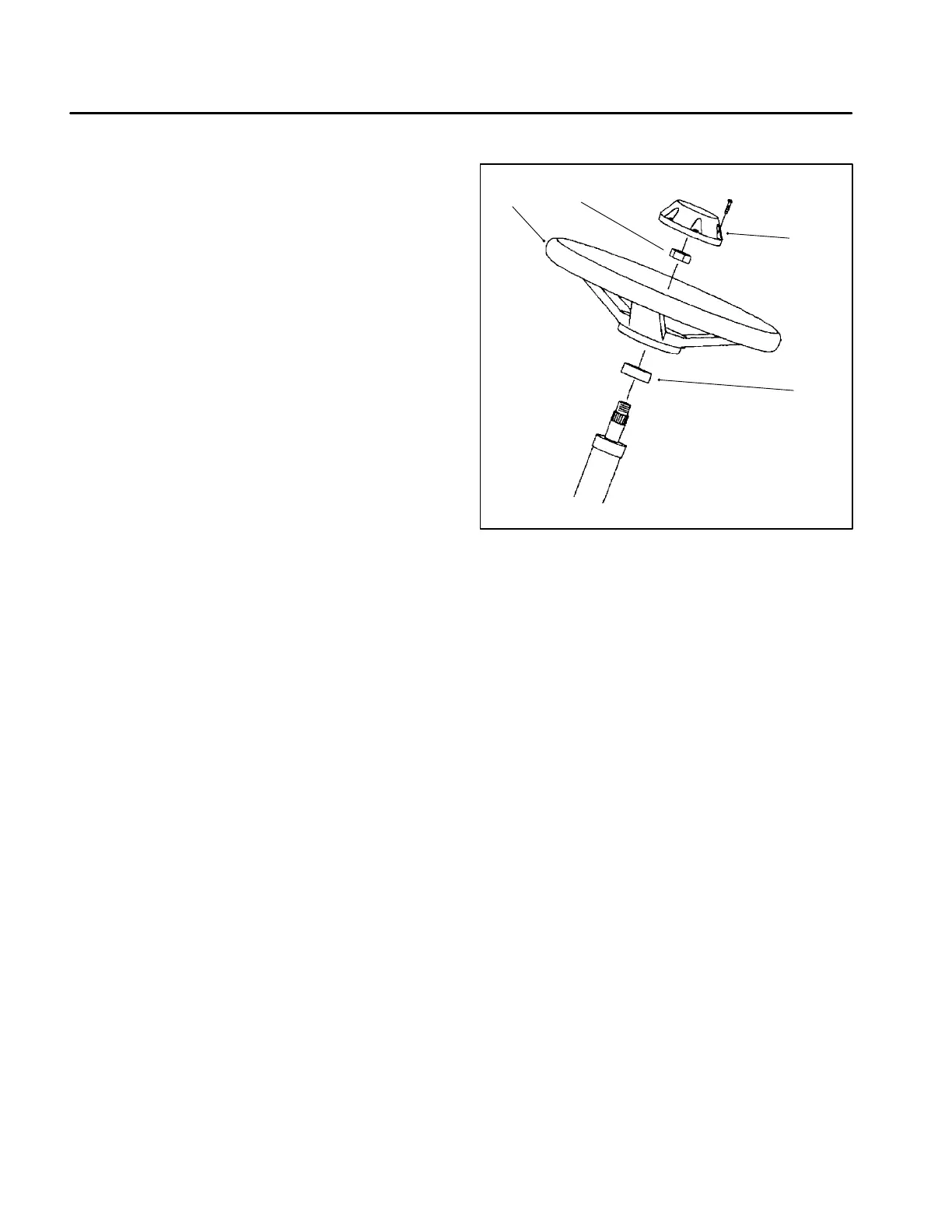

Figure 14
1. Steering wheel
2. Locknut
3. Cover
4. Foam seal
1
2
3
4
