Reelmaster 5200-D/5400-DPage 3 - 18Kubota Diesel Engines
Engine

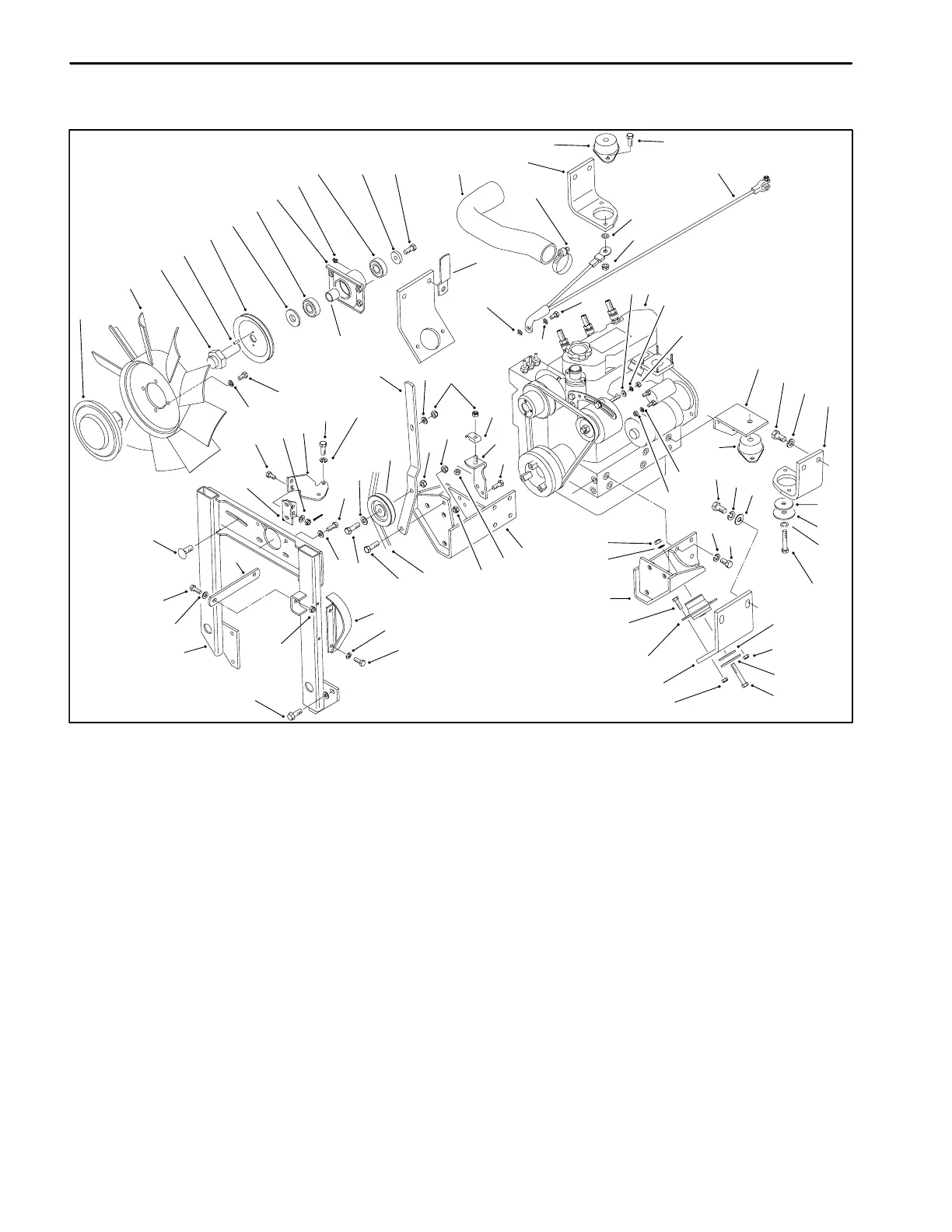

Figure 25
1. Fan clutch
2. Fan
3. Fan shaft
4. Roll pin
5. Fan pulley
6. Spindle spacer
7. Ball Bearing
8. Bearing spacer
9. Fan drive hub
10. 45 grease fitting
11. Fan spacer
12. Cap screw
13. Carriage bolt
14. Hose clamp
15. Cap screw
16. Lock washer
17. Battery ground cable
18. Engine assembly
19. Lock nut
20. Flat washer
21. Lock washer
22. Hex nut
23. Lock washer
24. Lock nut
25. Rear engine bracket (LH)
26. Rear engine bracket (RH)
27. Cap screw
28. Lock nut
29. Snubbing washer
30. Flat washer
31. Cap screw
32. Lock washer
33. Cap screw
34. Flat washer
35. Cap screw
36. Engine mount washer
37. Engine mount
38. Cap screw
39. Front engine bracket (LH)
40. Engine mounting bracket (RH)
41. Engine fan support
42. Fan idler bracket
43. Lock washer
44. V-belt
45. Cap screw
46. Idler pulley
47. Throttle mounting bracket
48. Fan support bracket
49. Cap screw
50. Lock washer
51. Cable clamp
52. Toothed lock washer
53. Cap screw
54. Fan mounting plate
55. Flange screw
56. Lock nut
57. Fan mounting bracket
58. Rear engine bracket (LH)
59. Front engine bracket
60. Cap screw
61. Lock washer
62. Flat washer
63. Alternator shield
64. Cap screw
65. Air cleaner hose
66. Retaining clamp
67. Flange nut
31
32
33 LH
34
27
36
37
38
39
40
41
42
43
44
45
46
47
48
49
51
52
53
54
55
56
57
58
59
60
61
62
63
1
2
3
4
5
6
7
8
10
16
17
18
19
20
21
22
23
24
25,26
27 RH
28
29
30
11
12
13
14
15
7
9
43
64
34
12
19
53
34
19
53
34
19
53
19
67
19
23
37
60
61
36
29
15
16
58
37
38
52
19
65
66
30
50
