Rev. A
Reelmaster 5200-D/5400-DDifferential Axle Page 6 - 4
Axle Shafts and Wheel Bearings (Serial No. 80001 - 200000200)
Disassembly

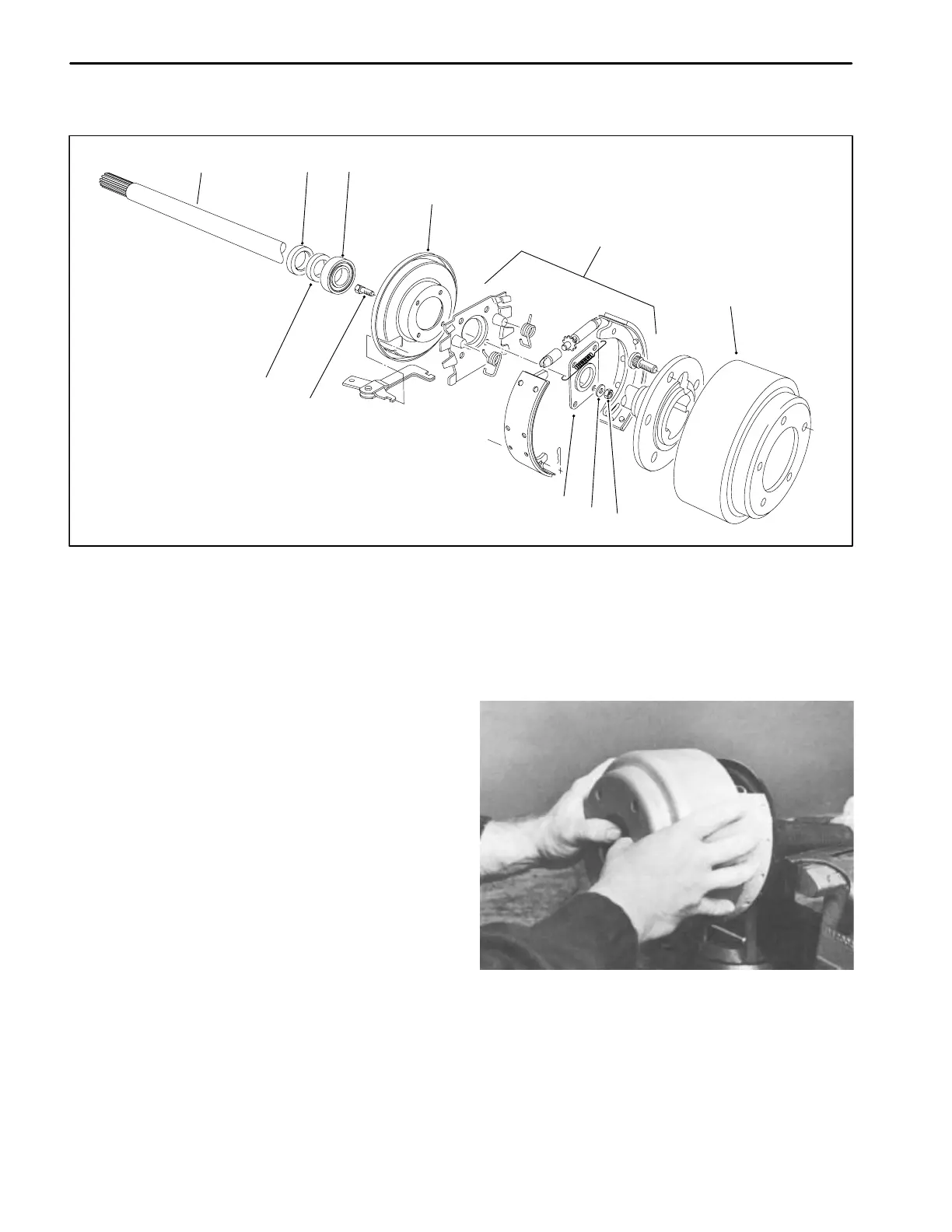

Figure 5
1. Brake drum
2. Bearing retainer/seal plate screw
3. Outer seal plate
4. Washer
5. Locknut
6. Axle shaft
7. Axle shaft inner seal
8. Bearing retainer
9. Bearing
10. Brake backplate
11. Brake assembly
679
10
1
3
2
5
4
8
11
1. Remove axle from traction unit.
2. Slide the brake drum off of the axle flange (Fig. 6).
NOTE: If the brake drum is severely worn, it may be
necessary to loosen the brake shoes before removing
the brake drum. Loosen the brake shoes by turning the
star wheel inside the brake drum assembly (See Chap-
ter 7 - Steering and Brakes).
Figure 6
