Toro Reelmaster 5200-D Service Manual

Rev. A
4WD Rear Axle
Unit S/N 80001 Ć 99999
Reelmaster 5200-D/5400-D 4WD Rear AxlePage 9 - 11
(Unit Serial No. 80001 - 99999)
4
3
5
6
9
12
8
11
10
1
2
2
7
14
13

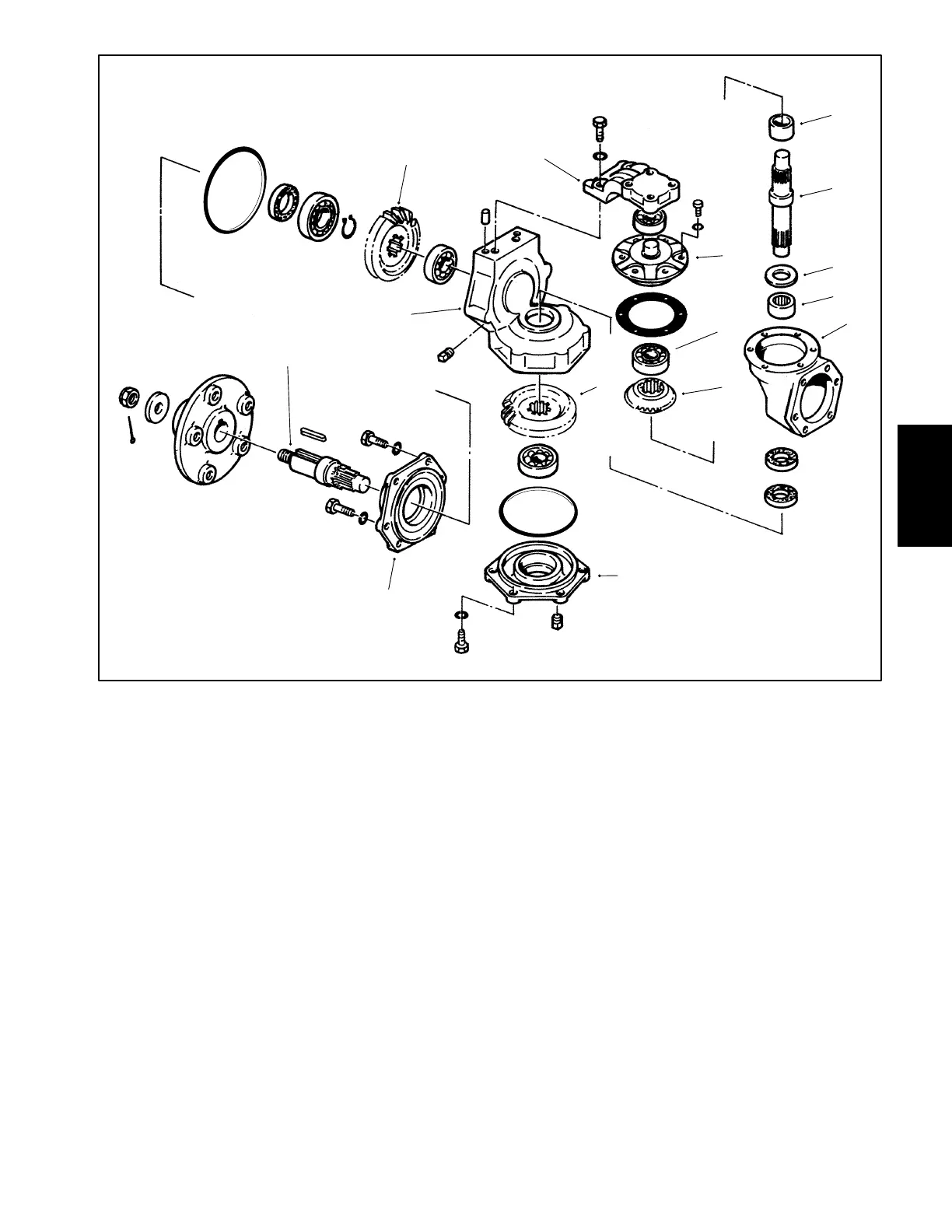

1. Gearbox housing
2. Knuckle cover
3. Knuckle housing
4. Outer axle shaft
5. Outer axle bevel gear
6. Knuckle arm
7. Bearing retainer
8. Knuckle pin
9. Inner bevel gear
10. Needle bearing
11. Washer
12. Spacer
13. Bearing
14. Outer bevel gear
Figure 12
7. Remove knuckle cover bolts. Separate knuckle cov-
ers from knuckle housing. Remove outer bevel gear
(Fig. 12).
8. Remove outer axle shaft and bevel gear from
knuckle housing.
9. Remove the steering arms (Fig. 10).
10.Remove knuckle arm capscrews. Pull the knuckle
arm from the gearbox housing.
11.Pull the knuckle housing from the gearbox housing.
12.Remove the bearing retainer screws. Separate the
bearing retainer from the gearbox housing.
13.Remove the knuckle pin and the inner bevel gear.
Inspection
1. Inspect all gears, shafts, bearings, cases, and cov-
ers for damage and wear. Replace components as ne-
cessary.
Note: Differential ring and pinion gears are a matched
set, and must be replaced as a set.
