Reelmaster 5200-D/5400-DPage 5 - 22Electrical Systems

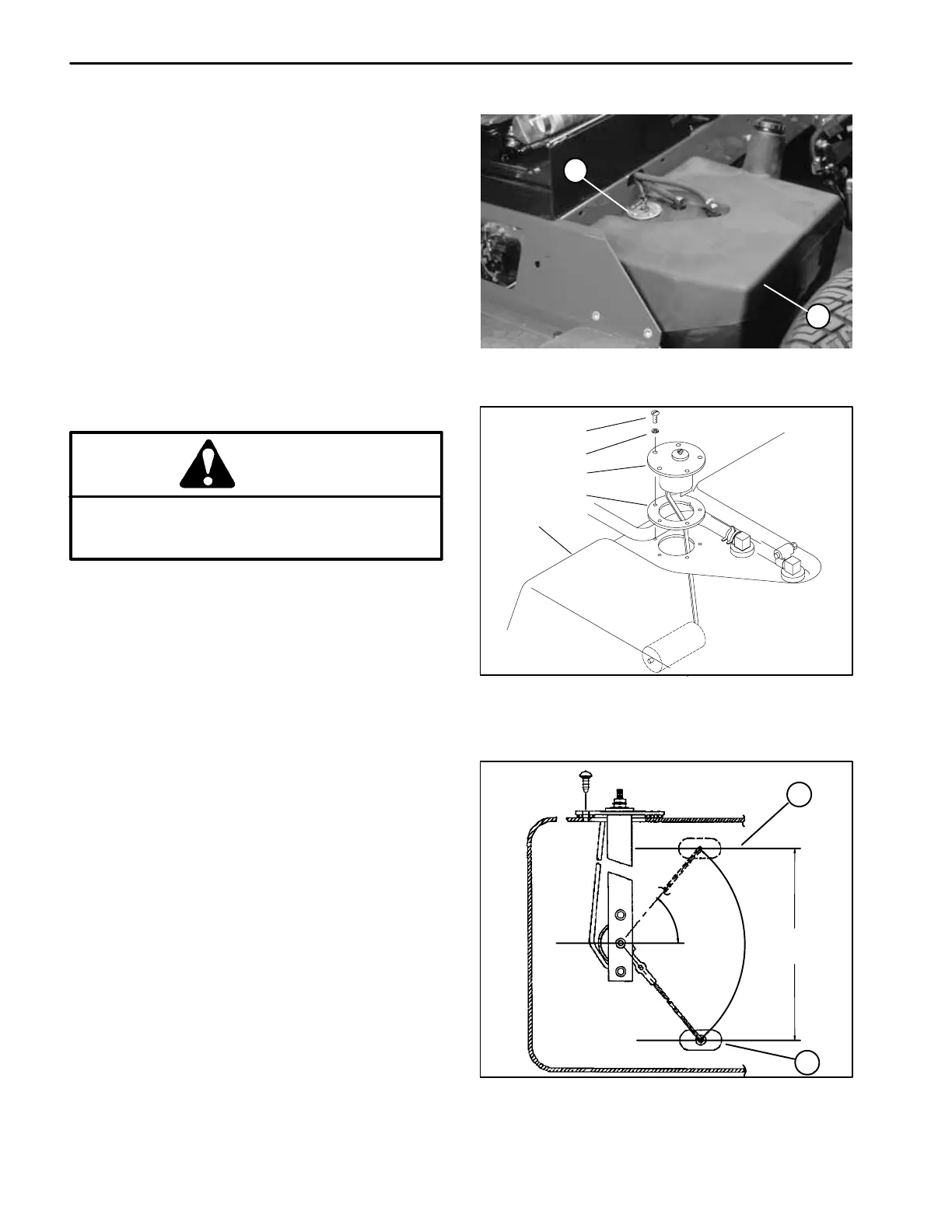

Fuel Sender
The sender is located on top of the fuel tank under the
right, front fender.
1. Remove blue/green wire and black ground wire
from the sender.
2. Remove round head screws and lock washers from
the sender and fuel tank.
3. Remove sender and gasket from the fuel tank.
Clean any fuel from the sender.
Note: Before taking small resistance readings with a
digital multimeter, short test leads together. The meter
will display a small resistance value. This internal resis-
tance of the meter and test leads should be subtract
from the measured value of the component.
CAUTION
Make sure sending unit is completely dry (no fuel
on it) before testing. Perform test away from the
tank to prevent an explosion or fire from sparks.
4. Check resistance of the sender with a multimeter.
A. Resistance with the float in the full position
should be 27.5 to 39.5 ohms.
B. Resistance with the float in the empty position
should be 240 to 260 ohms.
5. Replace sender as necessary. Reinstall sender into
fuel tank. Connect wires.
1. Tank 2. Fuel sender
Figure 25
2
1
1. Round head screw
2. Lock washer
3. Fuel sender
4. Gasket
5. Fuel tank
Figure 26
2
3
1
4
5
Figure 27
1. Full position 2. Empty position
50
100
7.62 inch
(19.4 cm)
1
2
