Toro Reelmaster 5200-D Service Manual

Rev. A
Steering
and Brakes
Reelmaster 5200-D/5400-D Steering and BrakesPage 7 - 7
Testing
Note: For testing the gear pump section that supplies
the steering circuit, see Test No. 8 in Chapter 4–Hydrau-
lic System of this manual.
Steering Cylinder Internal Leakage Test
1. Engage the parking brake, and lower the cutting
units to the floor.
2. Turn the steering wheel all the way to the left (coun-
terclockwise) so the steering cylinder rod is extended all
the way.
3. Turn the engine OFF
4. Disconnect the hydraulic hose from the fitting on the
rod end of the cylinder (Fig. 8). Put a plug in the end of
the hose to prevent contamination.
5. With the engine OFF, continue turning the steering
wheel to the left (counterclockwise) with the cylinder rod
completely extended and observe the open fitting on the
steering cylinder. If oil comes out of the fitting while turn-
ing the steering wheel to the left, the steering cylinder
has internal leakage and must be repaired or replaced.
Note: DO NOT turn the steering wheel to the right
(clockwise) or the steering valve will meter oil out the dis-
connected hydraulic hose.

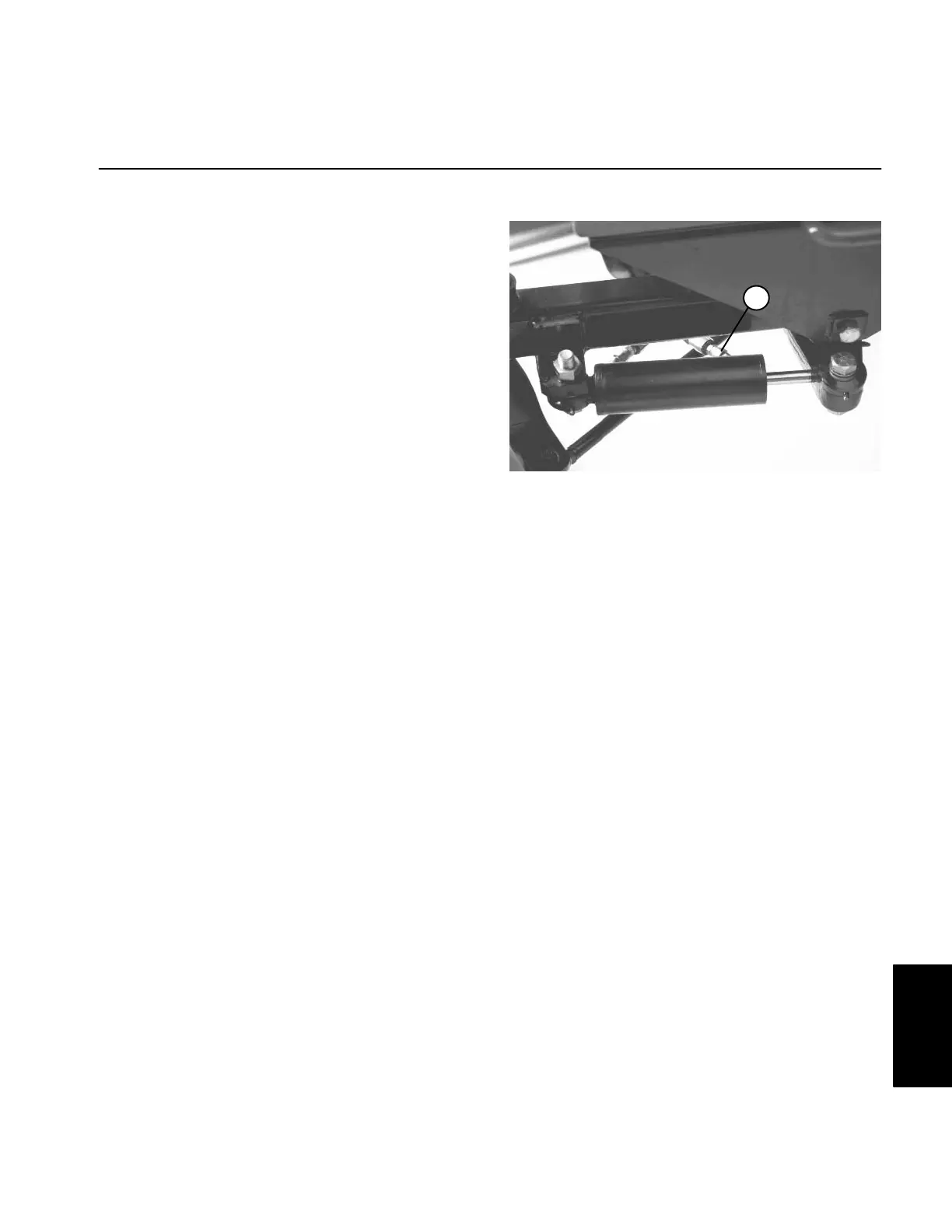

Figure 8
1. Hydraulic hose and fitting (2WD shown)
1
