Toro Reelmaster 5200-D Service Manual

Rev. A
Cutting Units
Model 03506 & 03509
Reelmaster 5200-D/5400-D Page 8 - 3 Cutting Units
(Model 03506, S/N 80001 - 209999999)
(Model 03509, S/N 80001 - 209999999)

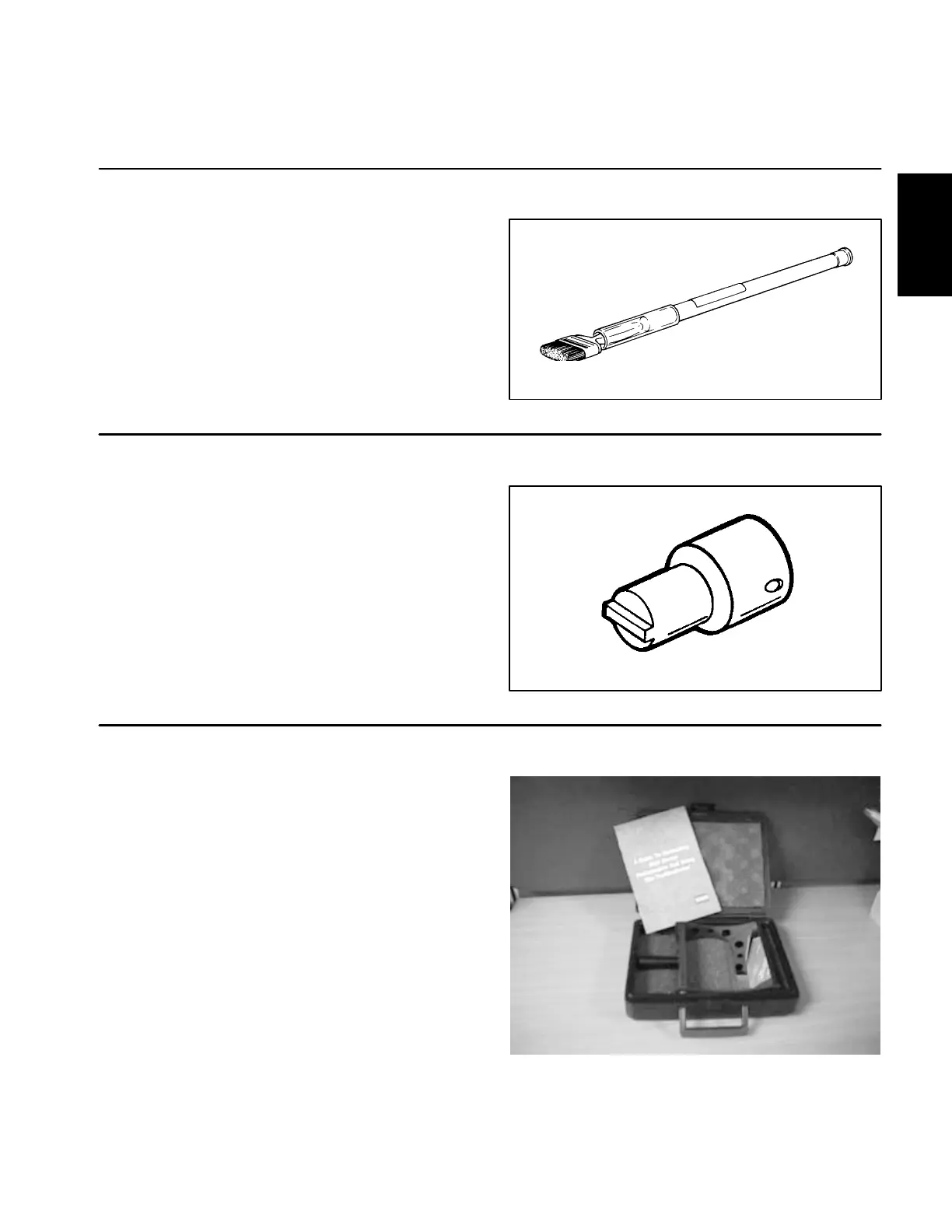

Special Tools
Order special tools from the TORO SPECIAL TOOLS
AND APPLICATIONS GUIDE (COMMERCIAL PROD-
UCTS).
Some tools may have been supplied with your machine
or available as TORO parts. Some tools may also be
available from a local supplier.
Handle Assembly - TOR299100
For applying lapping compound to cutting units while
keeping hands a safe distance from the rotating reel.
Figure 2
Bedknife Screw Tool - TOR510880
This screwdriver type bit is made to fit Toro bedknife at-
taching screws. Use this bit with a torque wrench to se-
cure the bedknife to the bedbar.
IMPORTANT: Do not use an air or manual impact
wrench with this tool.
Figure 3
Turf Evaluator Tool - Toro Model No. 04399
Many turf discrepancies are subtle and require closer
examination. In these instances, the TurfEvaluatort
grass viewing tool is helpful. It can assist turf managers
and service technicians in determining causes for poor
reel mower performance and comparing the effective
height of cut of one mowed surface to another. This tool
should be used with the Toro Guide to Evaluation Reel
Mower Performance and Using the TurfEvaluator (Toro
Part No. 97931SL)
Figure 4
