Toro Reelmaster 5200-D Service Manual

Reelmaster 5200-D/5400-D Page 3 - 7 Kubota Diesel Engines
Adjust Alternator/Fan Belt
The condition and tension of all belts should be checked
periodically as recommended in the maintenance
schedules in Chapter 2 - Product Records and Manuals.
1. Park machine on a level surface, lower cutting units,
stop engine, engage parking brake, and remove key
from the ignition switch. Open hood.
Alternator Belt (Fig. 7)
2. Check tension by depressing belt midway between
alternator and crankshaft pulleys with 22 lb. (98 N) of
force. Belt should deflect 7/16 in. (11 mm). If the deflec-
tion is incorrect, proceed to the next step. If the deflec-
tion is correct, continue operation of the machine.
3. Loosen bolt securing brace to engine and bolt secur-
ing alternator to brace.
4. Insert pry bar between alternator and engine and pry
out on alternator.
5. When proper tension is achieved, tighten alternator
and brace bolts to secure adjustment.
Cooling Fan Belt (Fig. 8)
IMPORTANT: Make sure both lock nuts are loosen
before setting cooling fan belt tension. Not loosen-
ing the bottom nut may result in bending the belt
tensioner lever.
6. Loosen upper and lower lock nuts on the belt tenĆ
sioner lever.
7. Apply 5 to 10 lb. (22 to 44 N) of force at the end of the
lever to set the proper tension on the fan belt.
8. Tighten both lock nuts to secure the adjustment.

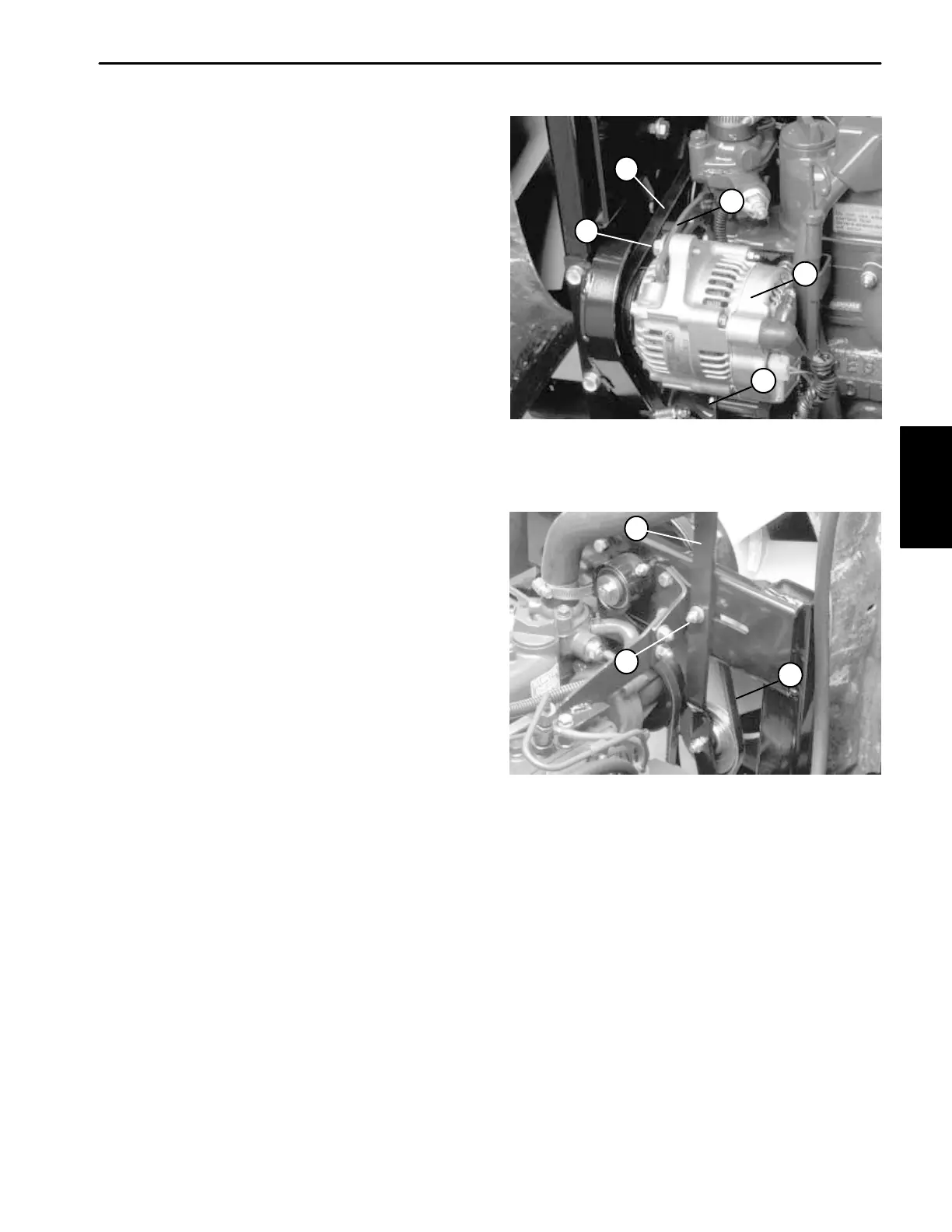

Figure 7
1. Belt
2. Bolt
3. Bolt
4. Support bracket
5. Alternator
2
1
4
5
3
Figure 8
1. Upper lock nut
2. Belt tensioner lever
3. Cooling fan belt
2
1
3
Kubota Diesel
Engines
