Toro Reelmaster 5200-D Service Manual

Reelmaster 5200-D/5400-D Page 5 - 15 Electrical Systems
Component Testing
For accurate resistance and/or continuity checks, elec-
trically disconnect the component being tested from the
circuit (e.g. unplug the ignition switch connector before
doing a continuity check).
NOTE: For more component testing information, see
the Kubota Workshop Manual, Diesel Engine, 05 Series
at the end of Chapter 3 - Kubota Diesel Engines.
CAUTION
When testing electrical components for continu-
ity with a multimeter (ohms setting), make sure
that power to the circuit has been disconnected.

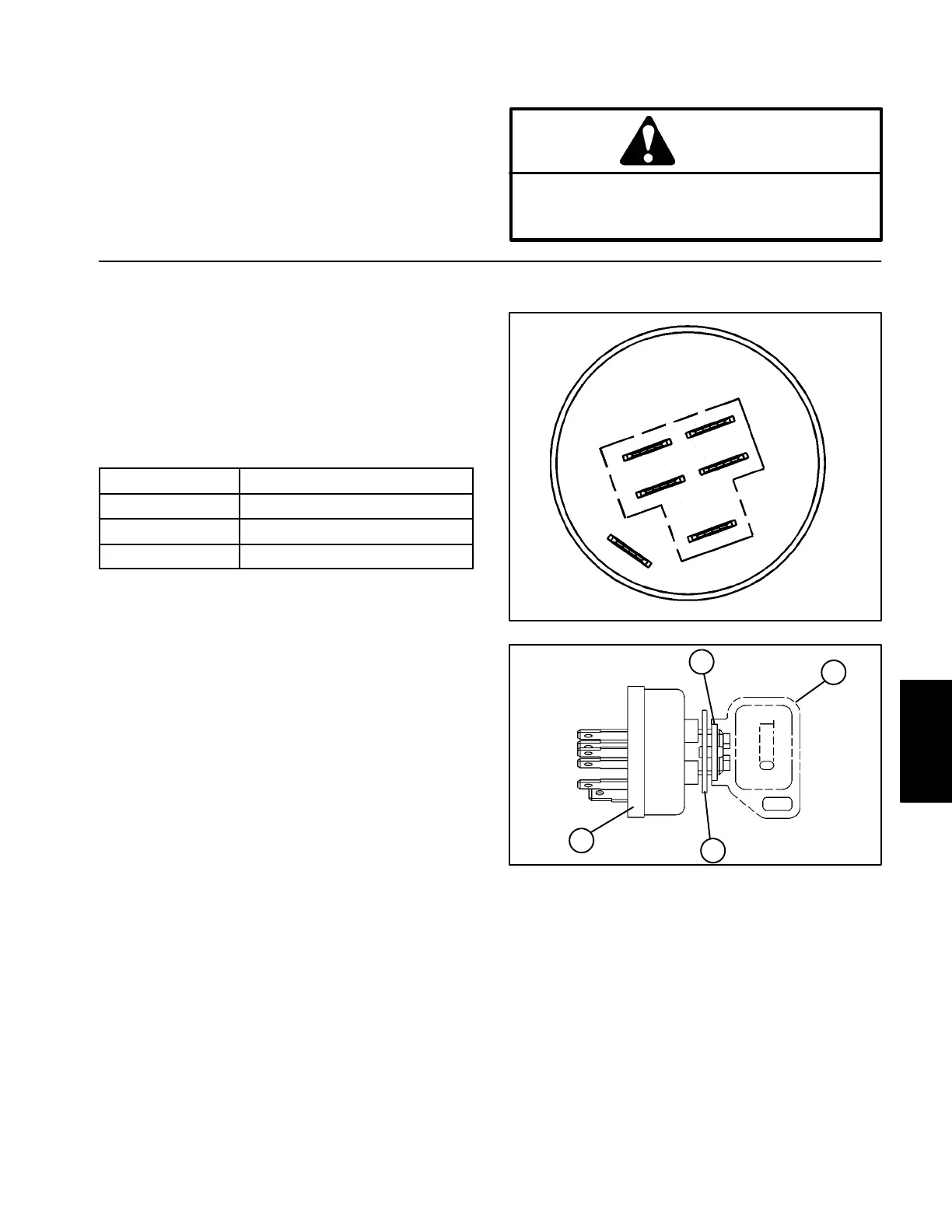

Ignition Switch
The ignition (key) switch has three positions (OFF, RUN,
and START). The terminals are marked as shown. The
circuit wiring of the ignition switch is shown in the chart.
With the use of a multimeter (ohms setting), the switch
functions may be tested to determine whether continuity
exists between the various terminals for each position.
Verify continuity between switch terminals.
POSITION
CIRCUIT
OFF NONE
RUN B + I + A, X + Y
START B + I + S
A
B
S
Y
X
I
Figure 11
1. Key
2. Hex nut
3. Lock washer
4. Ignition switch
3
1
2
4
Electrical
System
