Reelmaster 5200-D/5400-D4WD Rear Axle Page 9.1 - 14
(Unit Serial No. 200000001 & Up)
13.Tighten axle cover screws to 17 to 20 ft-lbs. (23 to
27 Nm).
14.Coat a new O-ring with grease and install the bevel
gear case/axle case assembly on the axle support.
Tighten mounting screws and nuts to 35 to 41 ft-lbs. (47
to 56 Nm) (Fig. 11).
Differential Shafts
The following procedures assume the rear axle assem-
bly has been removed from the machine.
Removal
IMPORTANT: Do not interchange right and left dif-
ferential shafts assemblies.
1. Remove the mounting screws, nuts, and lock wash-
ers. Remove the bevel gear case/axle case assembly
and O-ring from the axle support (Fig. 21).
2. Mark and pull the differential shaft assembly from the
axle support.
3. Remove the retaining ring and bevel gear (Fig 22).
4. Drive the differential shaft out of the bearings and
spacer. Remove the bearings and bearing shims.
5. Inspect all gears, shafts, bearings, spacers, and
cases for damage and wear. Replace components as
necessary.
Installation
1. Press bearings onto differential shaft. Place correct
combination of bearing shims in spacer and drive differ-
ential shaft and bearing assembly into spacer.
2. Install bevel gear and retaining ring.
3. Coat new O-ring with grease. Align differential shaft
splines with differential gear assembly and slide differ-
ential shaft assembly onto axle support.
4. Install bevel gear case/axle case assembly (see
Bevel Gear Case/Axle Case Assembly in this section of
this manual).

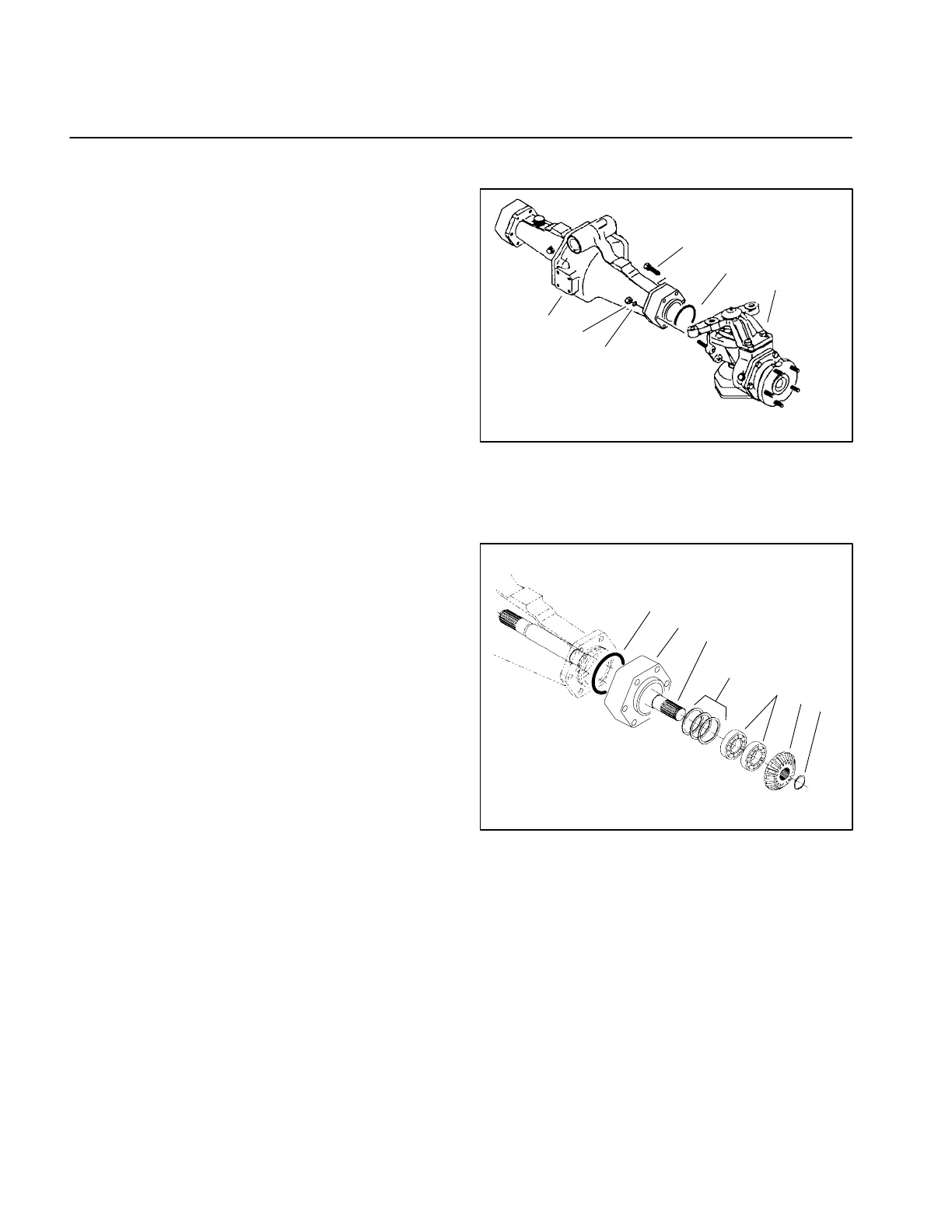

1. Cap screw
2. Lock nut
3. Lock washer
4. Axle support
5. Bevel gear case/axle
case assembly
6. O-ring
Figure 21
1
2
3
4
5
6
1
2
3
4
5
6
7
1. Retaining ring
2. Bevel gear
3. Differential shaft
4. Bearing
5. Spacer
6. Bearing shims
7. O-ring
Figure 22
