Reelmaster 5200-D/5400-DHydraulic System Page 4 - 44
Transmission
1. Bolt torque decal
2. Lug nut
3. Valve stem
4. Lock nut
5. Gear tooth sensor
6. Cap screw
7. Lock washer
8. Cap screw
9. Gear cover
10. Axle gasket
11. Sensor mounting plate
12. Machine screw
13. Cap screw
14. Transmission collar
15. Transmission pilot sleeve
16. Lock nut
17. bolt decal
18. O-ring
19. Hydraulic straight fitting
20. O-ring
21. Hydraulic hose
22. O-ring
23. Hydraulic test port fitting
24. Test port cap
25. O-ring
26. 90 hydraulic fitting
27. Hose clamp
28. Hose
29. Cap screw
30. Hydraulic hose
31. Oil filter
32. Cap screw
33. Lock washer
34. Transmission
35. Lock nut
36. O-ring
37. Pinion gear
38. retaining ring
39. Transmission support
40. 90 hydraulic fitting
41. In-lin strainer
42. 45 hydraulic fitting
43. Axle shim
44. Flat washer
45. Lock nut
46. Front axle
47. Oil fill tube
48. Axle dip stick
49. Cap screw
50. Jam nut
51. O-ring
52. Rim
53. Tire
54. Flat washer

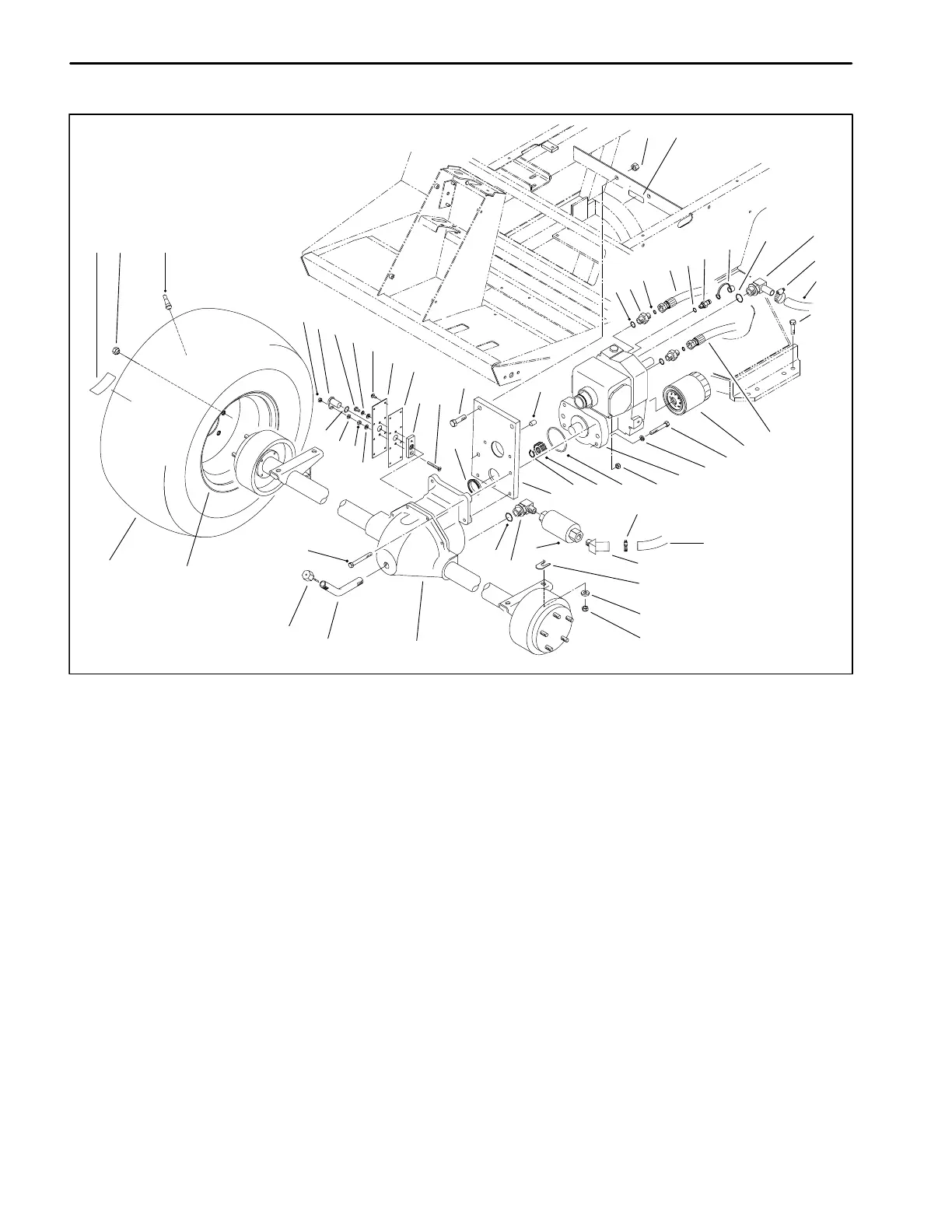

Figure 38
6
7
13
19
26
31
24
12
11
23
47
4
29
21
20
30
38
43
42
28
37
45
34
36
32
33
18
5
48
8
10
27
9
21
39
46
35
44
27
53
28
3
16
17
25
14
15
25
40
41
49
4
50
51
52
22
54
