Reelmaster 5200-D/5400-DPage 5 - 12Electrical Systems
1. Overlay decal (English shown)
2. “Inputs Displayed” LED (Red)
3. “Outputs Displayed” LED (Green)
4. Toggle button
3
2
1
4

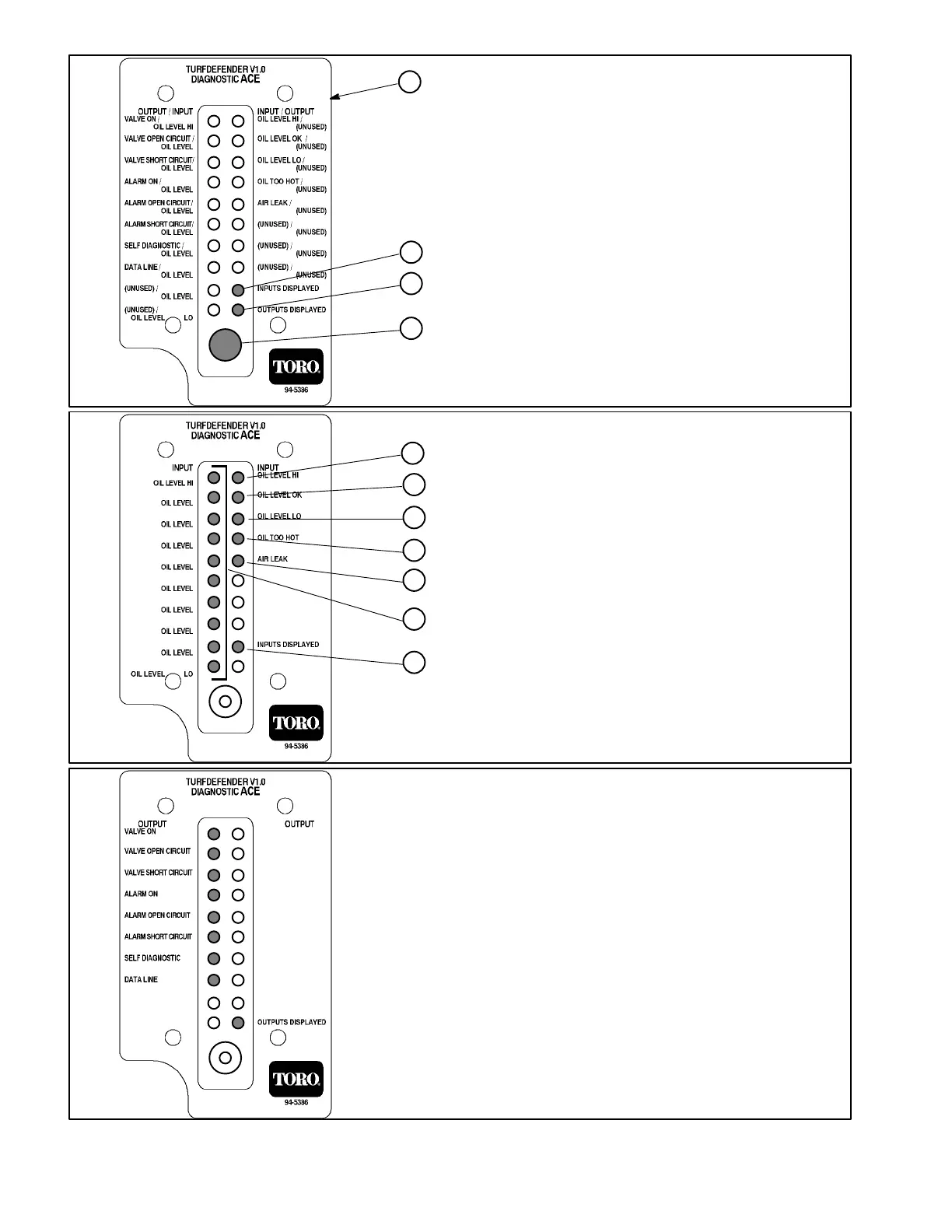

Diagnostic ACE Display Functions
Figure 8
3
2
1
7
1. LED lit if oil level is too high
2. LED lit if oil level is OK
3. LED lit if oil level is too low
4. LED lit if oil is too hot
5. LED lit if system air leak has been
detected
6. One or two LED’s lit displaying
relative position of the Turfdefender’s
internal float.
7. “Inputs Displayed” LED “ON” (Red)
Normal Operation:
a. “Oil Level OK” LED lit
b. 1 or 2 LED’s lit on left column
Using “Inputs Displayed” (Red Text)
4
5
6
a.
b.
Figure 9
Normal Operation:
a. “Valve ON” LED lit steadily
b. “Self Diagnostic” LED lit steadily
c. “DATA LINE” LED lit steadily
d. “Alarm ON” LED lit temporarily
Using “Outputs Displayed” (Green Text)
Problem Diagnosed:
The appropriate LED will blink to
identify the problem
Figure 10
