Toro Reelmaster 5200-D Service Manual

Rev. A
Cutting Units
(Model 03527, S/N 210000001 & Up)
(Model 03528, S/N 210000001 & Up)
Reelmaster 5200-D/5400-DPage 8.1 - 4

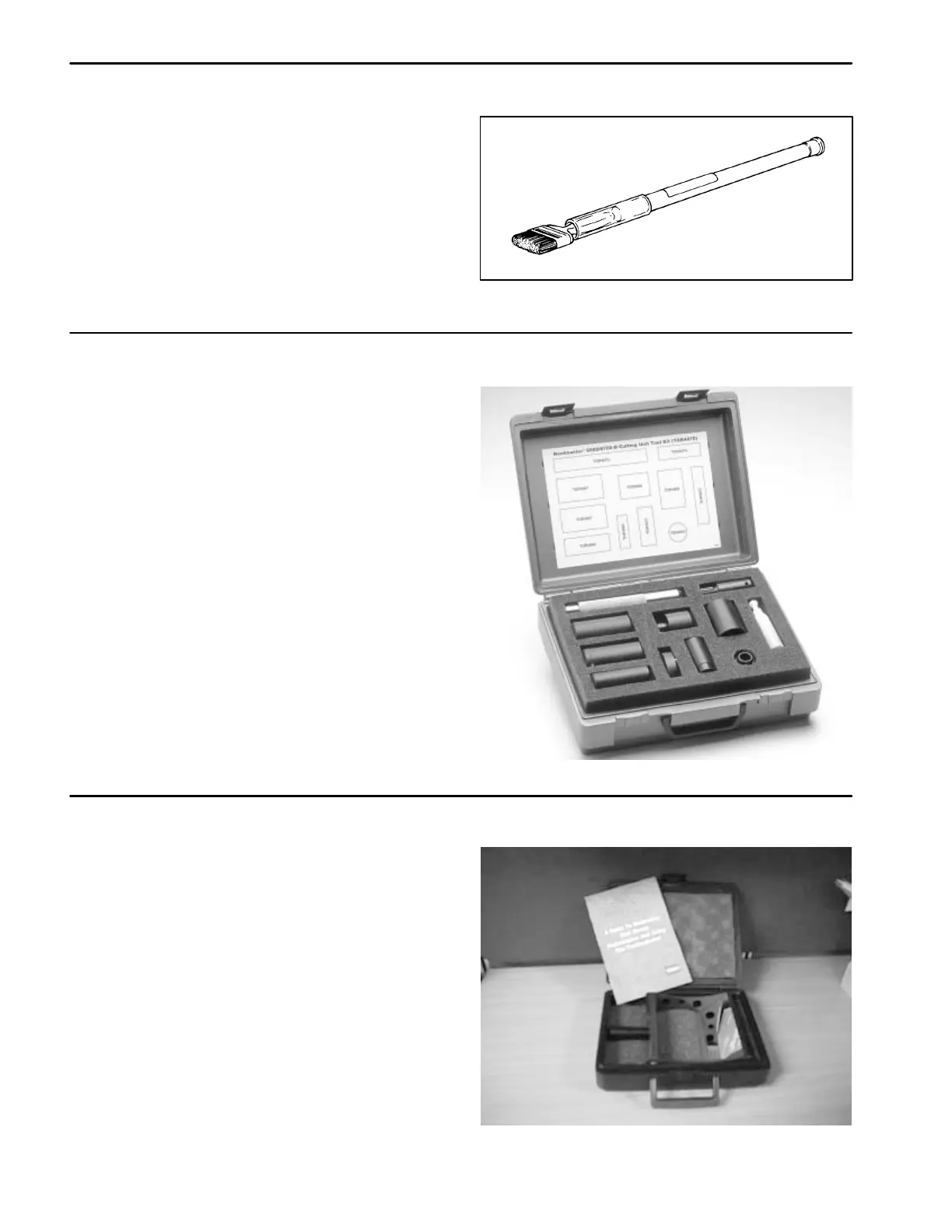

Handle Assembly - TOR299100
For applying lapping compound to cutting units while
keep hands a safe distance from the rotating reel.
Figure 5
Cutting Unit Tool Kit -TOR4070
This tool kit includes special tools required for rebuilding
the cutting units on the Reelmaster 5200-D/5400-D.
TOR4064 Spanner Wrench
TOR4065 Inner Oil Seal Installer
TOR4066 Bearing Installer
TOR4067 Shaft Support Tool
TOR4068 Inner Seal Installer
TOR4869 Outer Seal Installer
TOR4071 Outer Oil Seal Installer
TOR4072 Reel Motor Shaft Seal Protector
TOR4073 Handle
TOR4074 Spline Insert Tool
Figure 6
Turf Evaluator Tool – Toro Model No. 04399
Many turf discrepancies are subtle and require closer
examination. In these instances, the TurfEvaluatort
grass viewing tool is helpful. It can assist turf managers
and service technicians in determining causes for poor
reel mower performance and comparing the effective
height of cut of one mowed surface to another. This tool
should be used with the Toro Guide to Evaluation Reel
Mower Performance and Using the TurfEvaluator (Toro
Part No. 97931SL)
Figure 7
