8. Apply lapping compound with the long handled
brush supplied with machine (Fig. 33).
CAUTION
Contact with the reel or other moving parts can
result in personal injury.
Stay away from the reel and other moving parts
while backlapping.
9. To make an adjustment to the cutting units while
backlapping, turn the reels Off by moving the lower
mow/raise lever rearward, move the enable/disable
switch to Disable, and turn the engine off. After adjust-
ments have been completed, repeat steps 3-7.
10.Repeat the procedure for the remaining cutting units.
11.When the backlap operation is completed, return the
backlap switch to Off, set the reel speed controls to the
desired mowing setting, and wash all lapping compound
off of the cutting units.
Note: Additional instructions and procedures on
backlapping are available in the Toro Sharpening Reel
and Rotary Mowers Manual, Form No. 80-300PT.
Note: For a better cutting edge, run a file across the
front face of the bedknife when the lapping operation is
completed. This will remove any burrs or rough edges
that may have built up on the cutting edge.

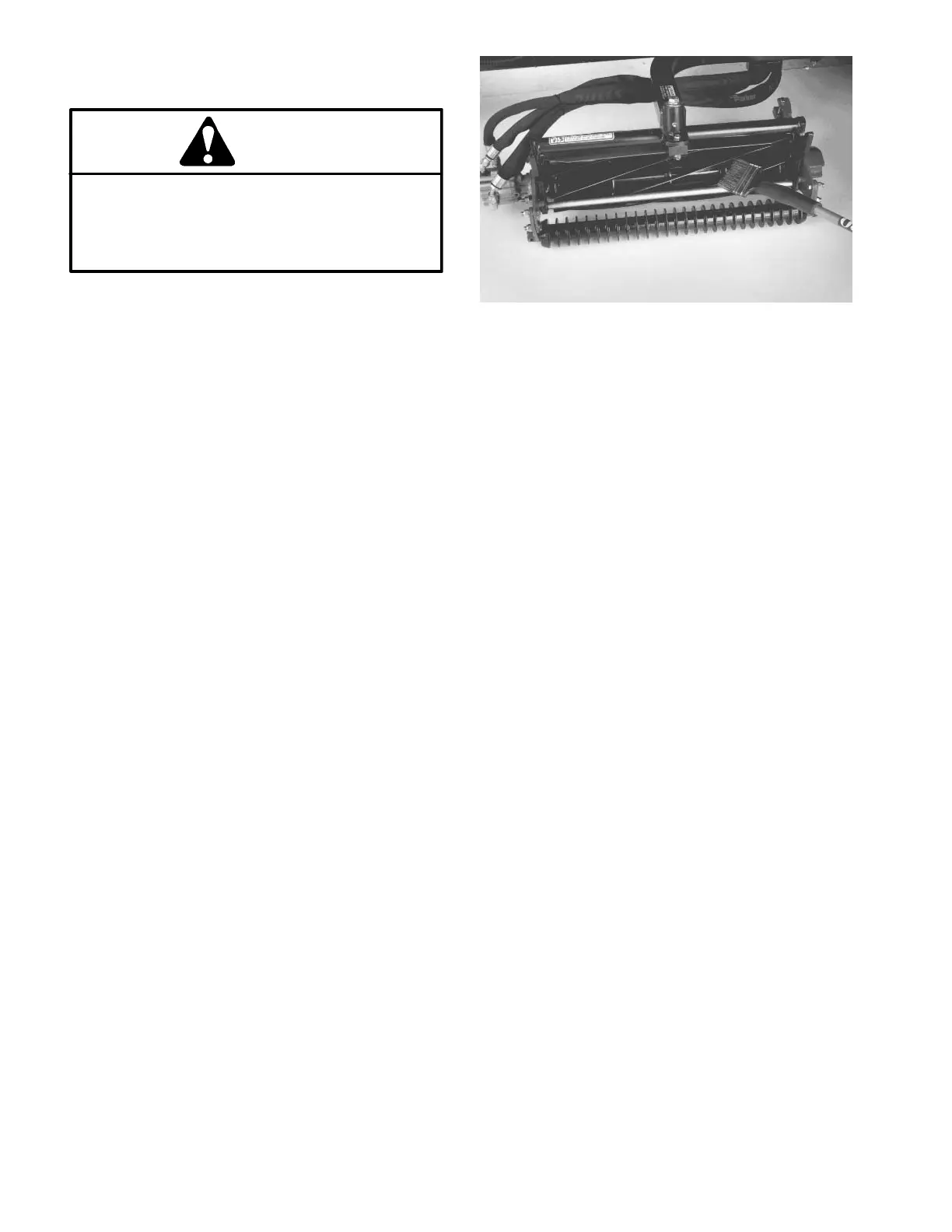

Figure 33
