Toro Reelmaster 5200-D Service Manual

Rev. A
Reelmaster 5200-D/5400-D4WD Rear Axle Page 9.1 - 8
(Unit Serial No. 200000001 & Up)

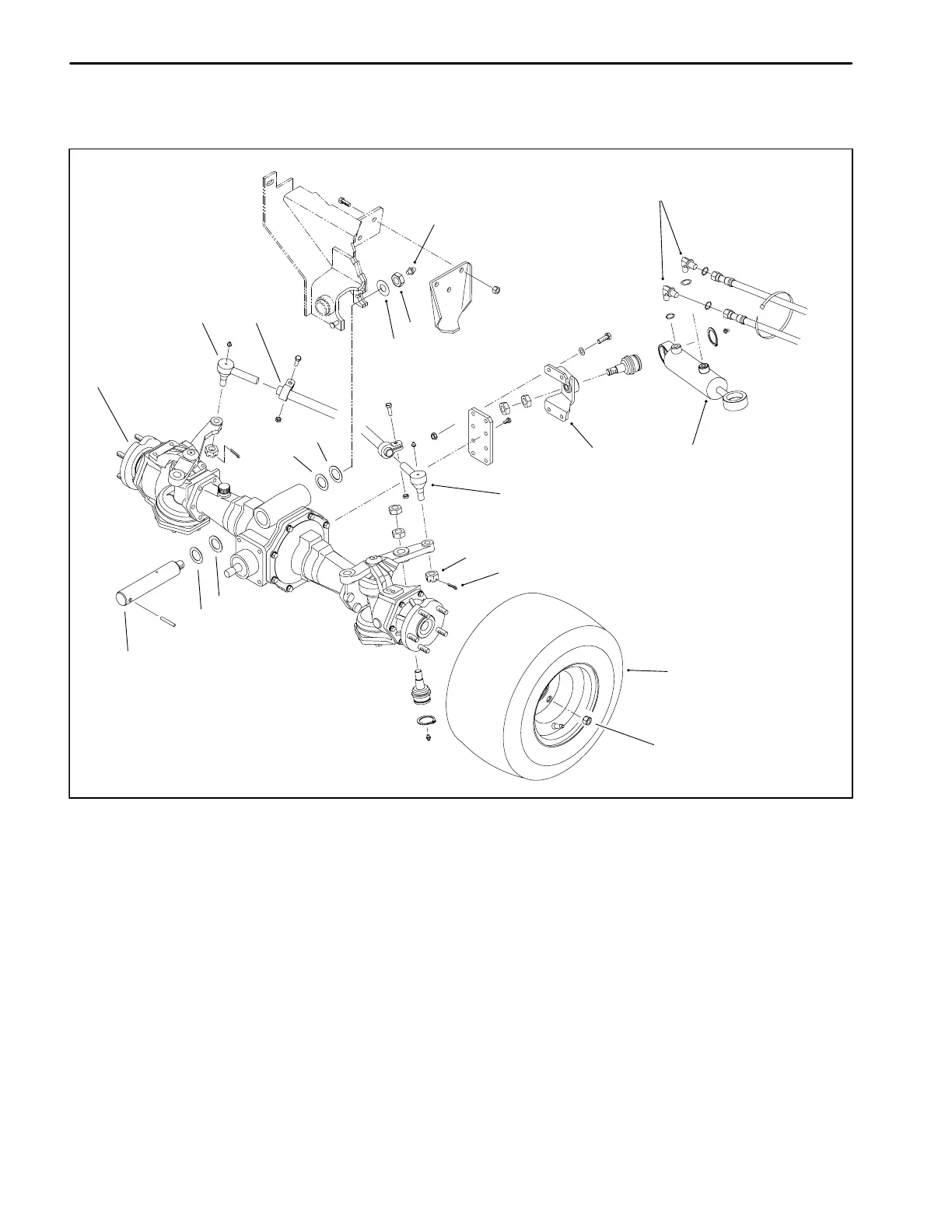

4WD Rear Axle
Note: For information on 2WD rear axle service and repairs, see Chapter 7–Steering and Brakes in this manual.
1. Rear axle assembly
2. Pivot pin
3. Thrust washer
4. Thrust washer
5. Thrust washer
6. Jam nut
7. Grease fitting
8. Lug nut
9. Rear wheel & tire
10. Tie rod assembly
11. Tie rod ball joints
12. Slotted hex nut
13. Cotter pin
14. Cylinder mounting bracket
15. Steering cylinder
16. Hydraulic hoses
Figure 10
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
4
3
11
