Toro Reelmaster 5200-D Service Manual

Reelmaster 5200-D/5400-D Page 3 - 11 Kubota Diesel Engines
Muffler

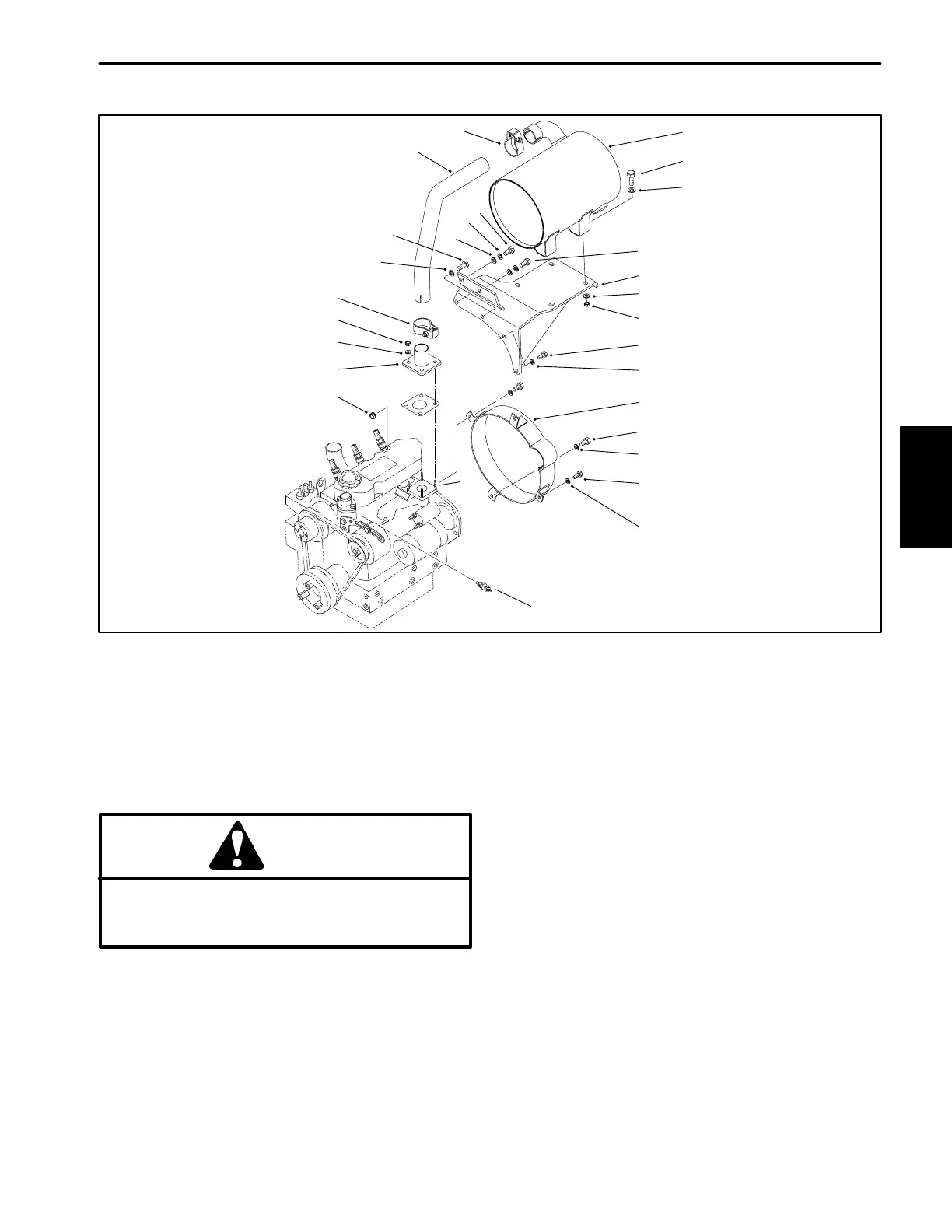

Figure 18
1. Muffler
2. Muffler bracket
3. Cap screw
4. Flat washer
5. Muffler clamp
6. Lock nut
7. Exhaust tube
8. Flat washer
9. Muffler clamp
10. Exhaust pipe
11. Lock nut
12. Lock washer
13. Lock nut
14. Flywheel guard
15. Cap screw
16. Cap screw
17. Lock washer
18. Temperature sender
19. Stud
20. Cap screw
1
2
3
4
5
7
8
9
10
15
17
11
12
13
4
6
15
12
14
15
12
16
17
18
19
20
12
20
Muffler Removal
CAUTION
The muffler and exhaust pipe may be hot. To
avoid possible burns, allow the engine and ex-
haust system to cool before working on the muf-
fler.
1. Park machine on a level surface, lower cutting units,
stop engine, engage parking brake, and remove key
from the ignition switch.
2. Remove muffler and/or muffler bracket from the en-
gine as necessary using Figure 18 as a guide.
Muffler Installation
Note: If a new gasket is to be installed, make sure
muffler flange and exhaust manifold sealing surfaces
are free of debris or damage that may prevent a tight
seal.
1. Install new gasket if original gasket is damaged or
torn.
2. Install muffler and/or muffler bracket to the engine
using Figure 18 as a guide. Replace gasket if damaged
or torn.
Kubota Diesel
Engines
