Rev. A

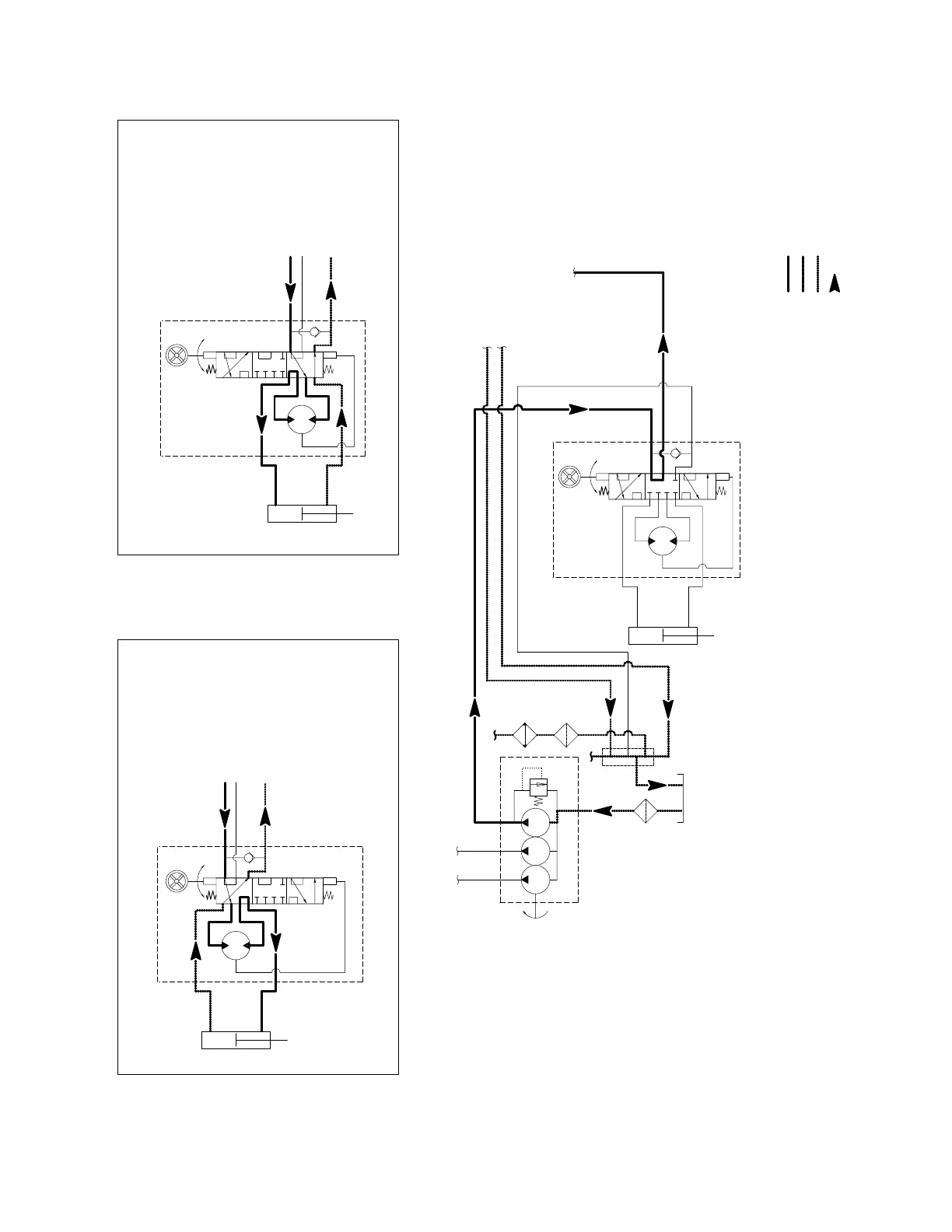

Reelmaster 5200-D/5400-DHydraulic System Page 4 - 18
Steering
High Pressure
Low Pressure (Charge)
Return or Suction
Flow
Reelmaster 5200-D/5400-D
P3P1 P2
STEERING
CYLINDER
AUX
STRAINER
IN
OUT
INPUT SHAF T
TRANSMIS SION
CCW
LH
RH
STEERING CONTROL V ALVE
GEAR PUMP
1250 PSI
OIL
FILTER
OIL
COOLER
(IN T ANK)
ROT ATION
(STRAIGHT AHEAD)
TO LIF T
CYLINDERS
STEERING
CYLINDER
AUX (TO LIF T CYLINDERS)
IN (FROM P3)
OUT (TO T ANK)
LH
RH
STEERING CONTROL V ALVE
(RIGHT TURN)
STEERING
CYLINDER
AUX (TO LIF T CYLINDERS)
IN (FROM P3)
OUT (TO T ANK)
LH
RH
STEERING CONTROL V ALVE
(LEF T TURN)
