Reelmaster 5200-D/5400-DHydraulic System Page 4 - 22

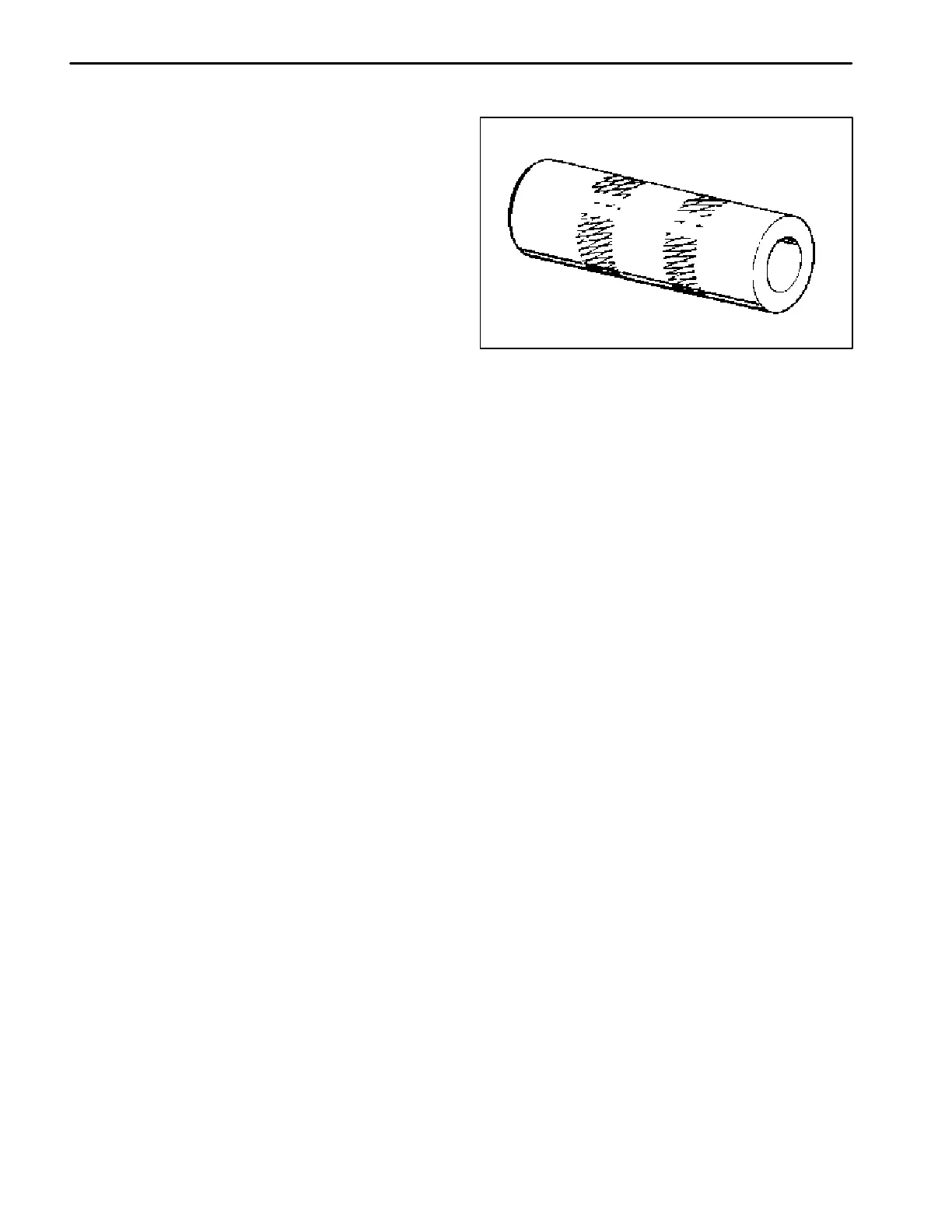

Seal Installer - TOR491450
Use installer and a small hammer to drive the reel motor
shaft seal into position in the bore of the reel motor body.
Use with seal protector - TOR491430.
Figure 14
