22 Description of Each Component
Description of Each Component

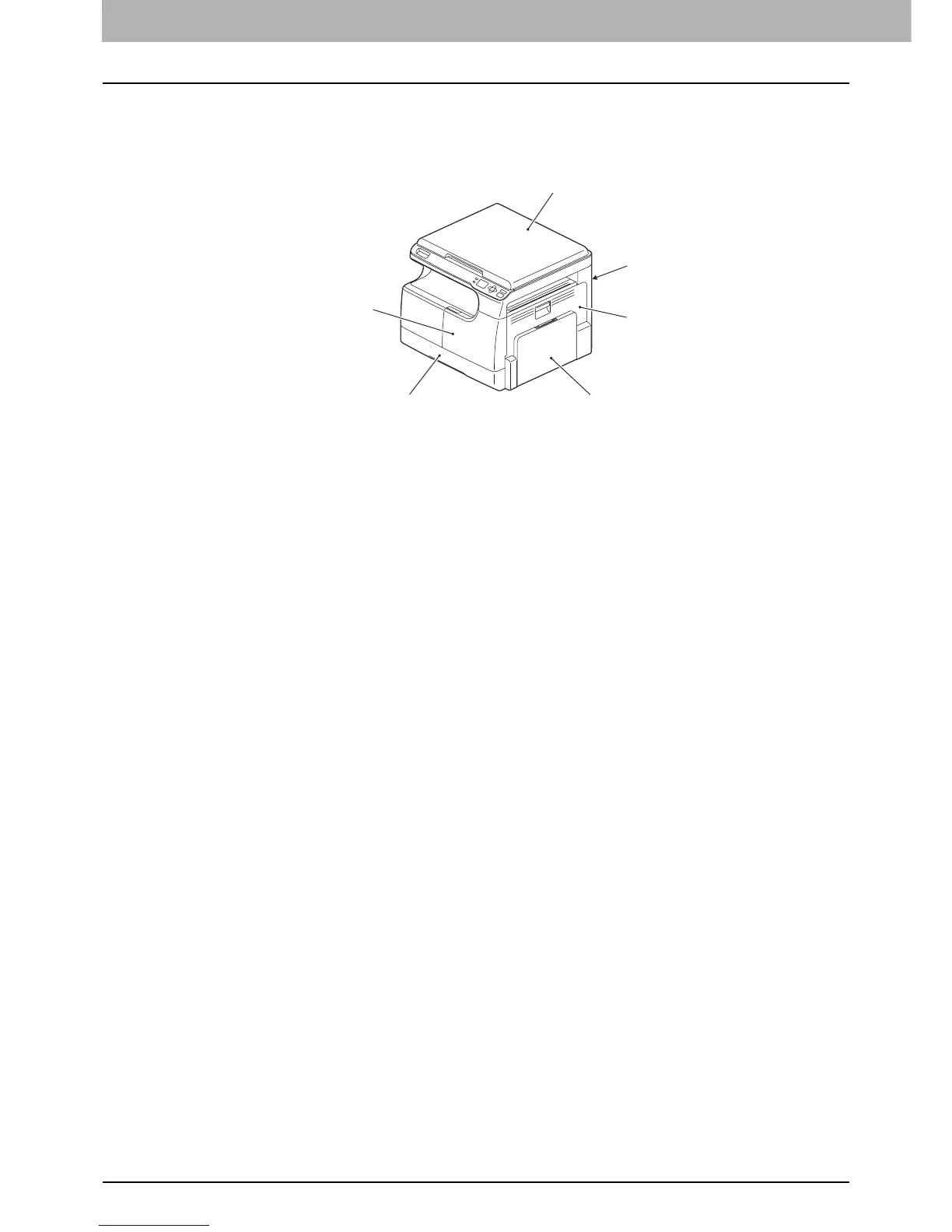

Front/Right side
1. Platen cover
Place an original on the original glass and start copying or scanning with this cover closed.
2. Operator’s Manual Pocket (Back side) (optional, KK-1660)
Keep the manual in this pocket.
3. Side cover
4. Bypass tray
Use this to copy or print on special media types such as thick paper, overhead transparencies or tracing paper.
P.33 “Loading paper on the bypass tray”
P.35 “Loading an envelope on the bypass tray”
5. Drawer
Maximum 250 sheets of plain paper can be loaded in one go.
P.31 “Loading paper in the drawer”
6. Front cover
Open this cover when you replace the toner cartridge.
P.146 “Replacing Toner Cartridge”
1
2
3
4
6
5
