Trane TR200 Series User Manual

How to Program
Keypad
How to operate graphical keypad
The following instructions are valid for the keypad.

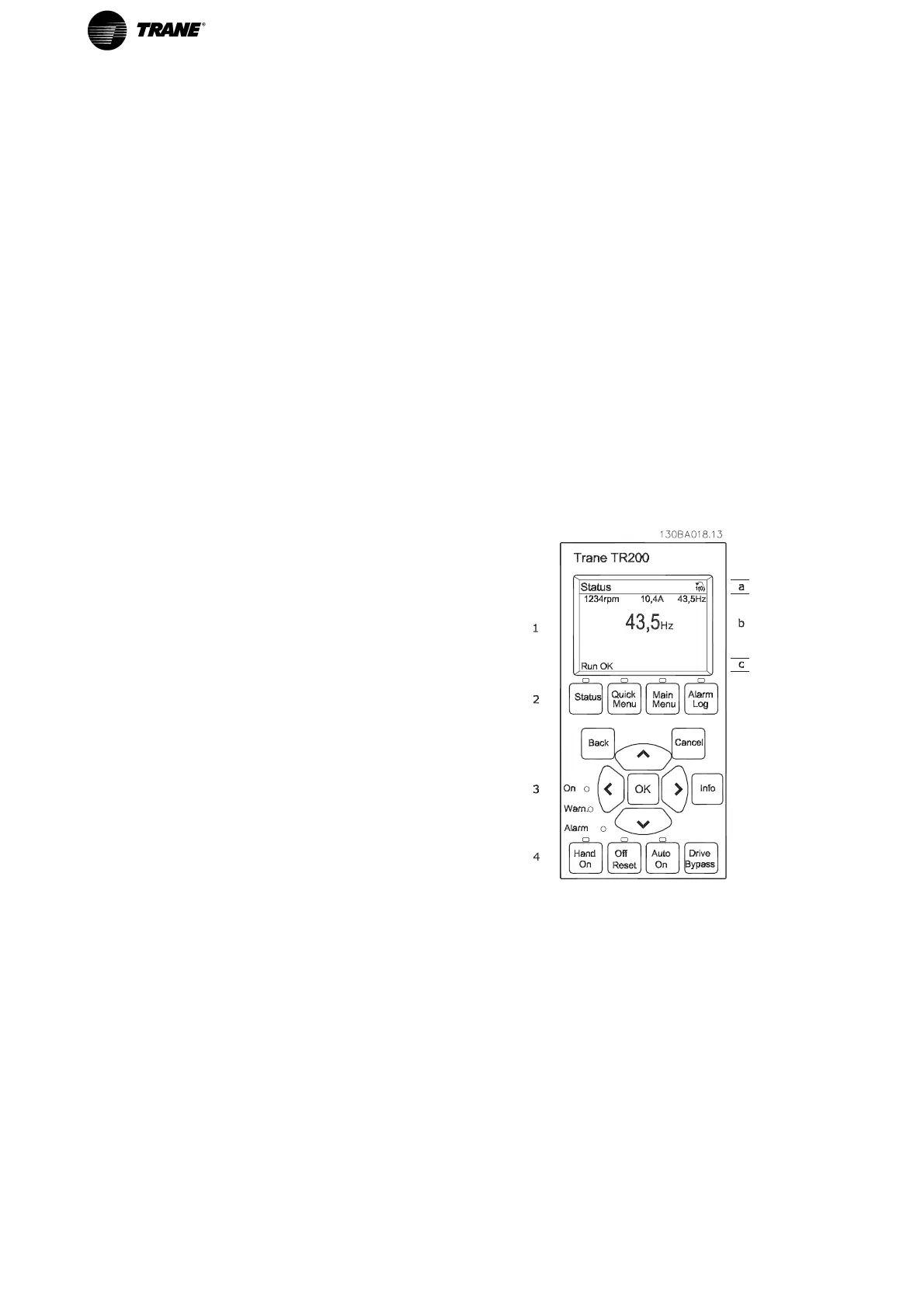

The keypad is divided into four functional groups:
1. Graphical display with Status lines.
2. Menu keys and indicator lights (LED's) - selecting mode, changing parameters and switching between dis-
play functions.
3. Navigation keys and indicator lights (LEDs).
4. Operation keys and indicator lights (LEDs).
Graphical display:
The LCD-display is back-lit with a total of 6 alpha-numeric lines. All data is displayed on the keypad which can
show up to five operating variables while in [Status] mode.
Display lines:
a.
Status line: Status messages displaying icons
and graphics.
b.
Line 1-2: Operator data lines displaying data and
variables defined or chosen by the user. By
pressing the [Status] key, up to one extra line can
be added.
c.
Status line: Status messages displaying text.
20 TR200 Programming Guide
