Main Menu Mode

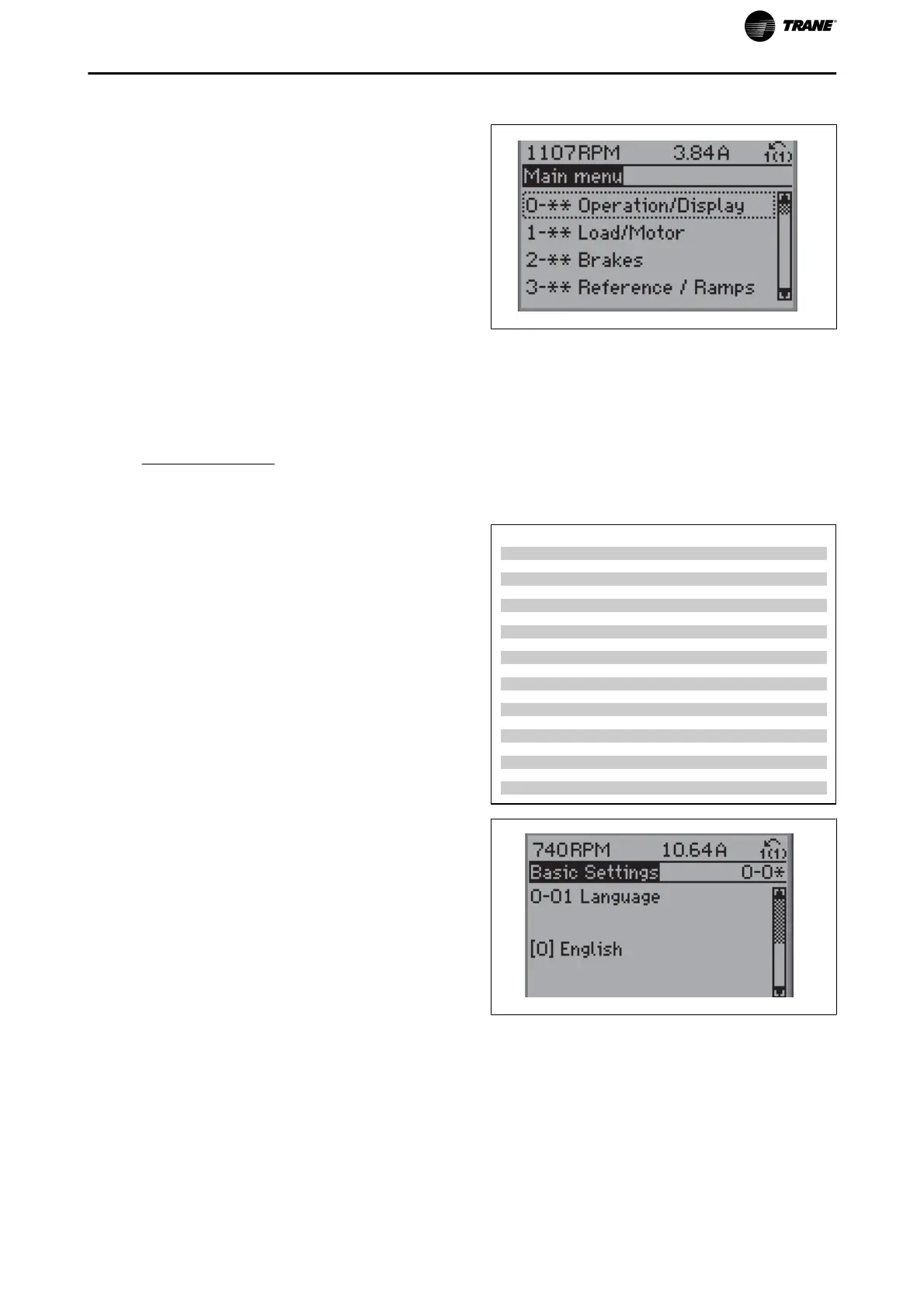

Select the Main Menu mode by pressing the [Main
Menu] key. The below read-out appears on the dis-
play.
The middle and bottom sections on the display show
a list of parameter groups which can be chosen by
toggling the up and down buttons.
1
Each parameter has a name and number which remain the same regardless of the programming mode. In the
Main Menu mode, the parameters are divided into groups. The first digit of the parameter number (from the
left) indicates the parameter group number.
All parameters can be changed in the Main Menu. However, depending on the choice of configuration (par.
1-00
Configuration Mode), some parameters can be hidden.
Parameter Selection
In the Main Menu mode, the parameters are divided
into groups. You select a parameter group by means
of the navigation keys.
The following parameter groups are accessible:
Group no. Parameter group:
0 Operation/Display
1Load/Motor
2 Brakes
3 References/Ramps
4 Limits/Warnings
5 Digital In/Out
6 Analog In/Out
8 Comm. and Options
11 LonWorks
13 Smart Logic
14 Special Functions
15 Drive Information
16 Data Readouts
18 Data Readouts 2
20 Drive Closed Loop
21 Ext. Closed Loop
22 Application Functions
23 Time-based Functions
24 Application Functions 2
After selecting a parameter group, choose a param-
eter by means of the navigation keys.
The middle section on the display shows the param-
eter number and name as well as the selected pa-
rameter value.
1
Changing Data
The procedure for changing data is the same whether you select a parameter in the Quick menu or the Main
menu mode. Press [OK] to change the selected parameter.
The procedure for changing data depends on whether the selected parameter represents a numerical data value
or a text value.
How to Program
TR200 Programming Guide 35
