CTV-SVU01B-EN • Tracer AdaptiView Display Operations Guide 27
Data Graphs
You can use the Tracer AdaptiView display to view a variety of default data graphs and
to create up to six custom data graphs. The data sample rate is 30 seconds, and the data
storage duration is 48 hours. These rates cannot be adjusted.
Viewing the Data Graphs Screen
Tou ch t he Data Graphs button in the main menu area (Figure 1, p. 7) to view the Data
Graphs screen (Figure 11, p. 27). Each button on the screen links to a data graph.
The buttons under the Default Graphs heading are:
When you create custom graphs, they appear under the Custom Graphs heading with
names such as “Custom 1” and “Custom 2,” as shown in Figure 11.
• Chiller Overview 1
• Chiller Overview 2
• Approach Temperature
• Evaporator
• Motor
• Condenser
• Motor Temperature
• Compressor
•Purge
• Oil System

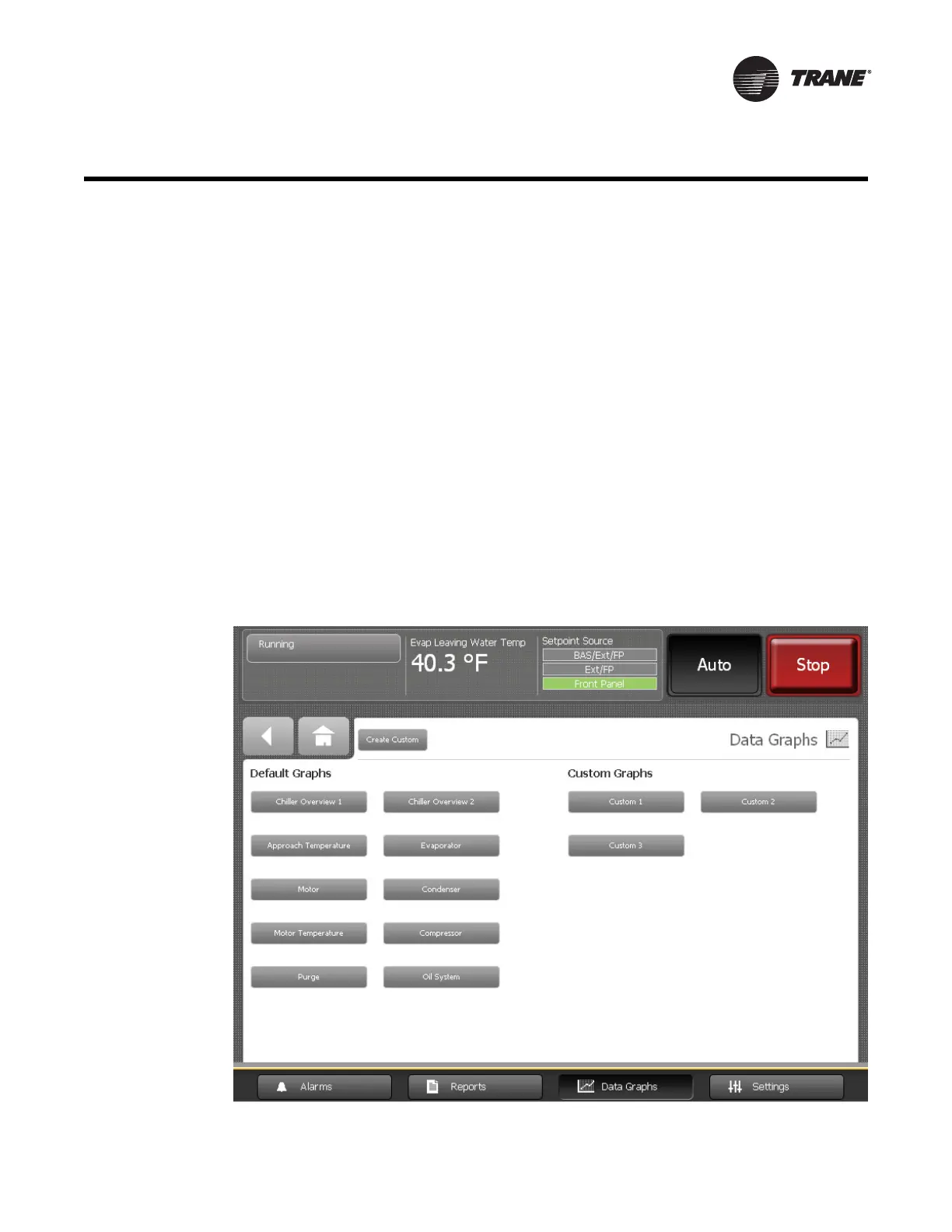

Figure 11. Data Graphs screen
