8 Tracer AdaptiView Display Operations Guide • CTV-SVU01B-EN
Introduction
Chiller Status Area
The chiller status area (shown in Figure 1, p. 7) remains visible from every screen on the
Tracer AdaptiView display. Basic information about chiller status and control appears on
the face of the buttons and touch targets. When touched, the buttons and touch targets
open other screens that provide more information and control access. Tabl e 1 provides
the details.

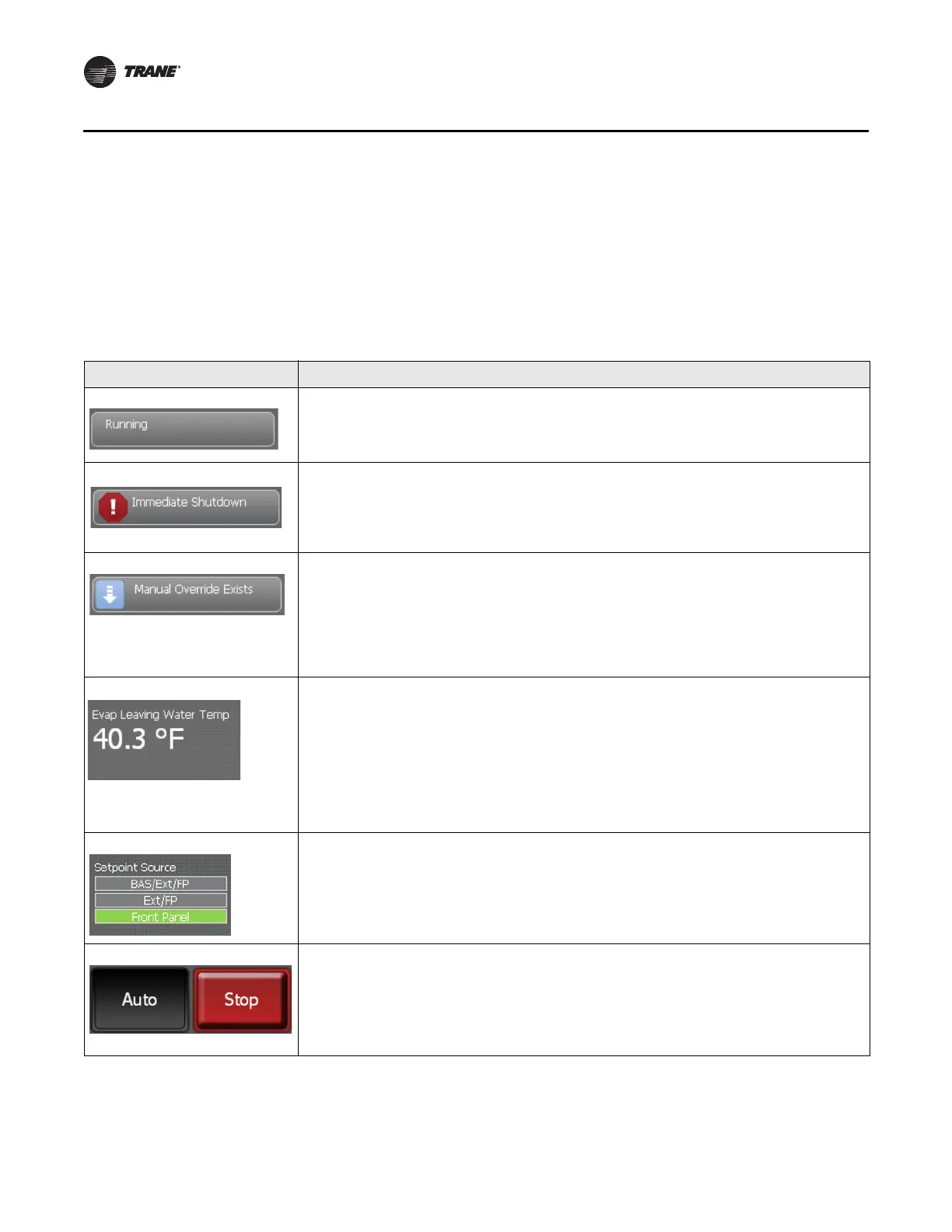

Table 1. Chiller status area
Button/Touch target Description
Chiller status button The top-level operating mode of the chiller appears on the chiller status button. Touch this
button to view the Chiller Operating Mode screen.
Note: For more information, see “Reports,” p. 19.
Alarm indicator button If an active alarm exists, the alarm indicator button appears with the alarm severity
indicated on it. If there is more than one alarm, the most severe appears. You can touch
this button as an alternate way to view the Alarms screen.
Note: For more information, see “Alarms,” p. 16.
Manual override button If a manual override exists but no active alarm exists, a manual override button appears
in the same location as the alarm indicator button.
If neither an alarm nor a manual override
exist, no button appears.
If a manual override exists, you can touch this button as an alternate way to view the Manual
Control Settings screen.
Note: For more information, see “Manual Control Settings,” p. 44.
Water temperature touch target The water temperature touch target shows one of the following, depending on whether the
chiller is in heating or cooling mode (also referred to as the Active Control Type):
• If the Active Control Type is chilled water, the Evaporator Leaving Water Temperature
appears and the touch target links to the evaporator component screen.
• If the Active Control type is hot water, the Condenser Leaving Water Temperature, and
the touch target links to the condenser component screen.
Note: For more information on the evaporator and condenser component screens, see “Component
Screens,” p. 12.
Setpoint source touch target The current setpoint source is highlighted in green on the setpoint source touch target.
Touch this target to view the Setpoint Source screen, where you can change the setpoint
source.
Note: For more information, see “Changing the Setpoint Source,” p. 40.
Auto/Stop buttons Auto and Stop are toggle buttons: One appears raised when the other is appears
depressed.
•Touch Auto to activate the chiller startup process.
•Touch Stop to active the chiller shutdown process.
Note: For more information, see “Stopping/Restarting Chiller Operation,” p. 14.
