Introduction
Screen Overview
The touch-sensitive areas of the Tracer AdaptiView display screen are described in detail
in this section.
In Figure 1, three areas are identified, which correspond to the following subsections:
1. “Chiller Status Area,” p. 8
2. “Main Display Area/Home Screen,” p. 9
3. “Main Menu Area,” p. 13

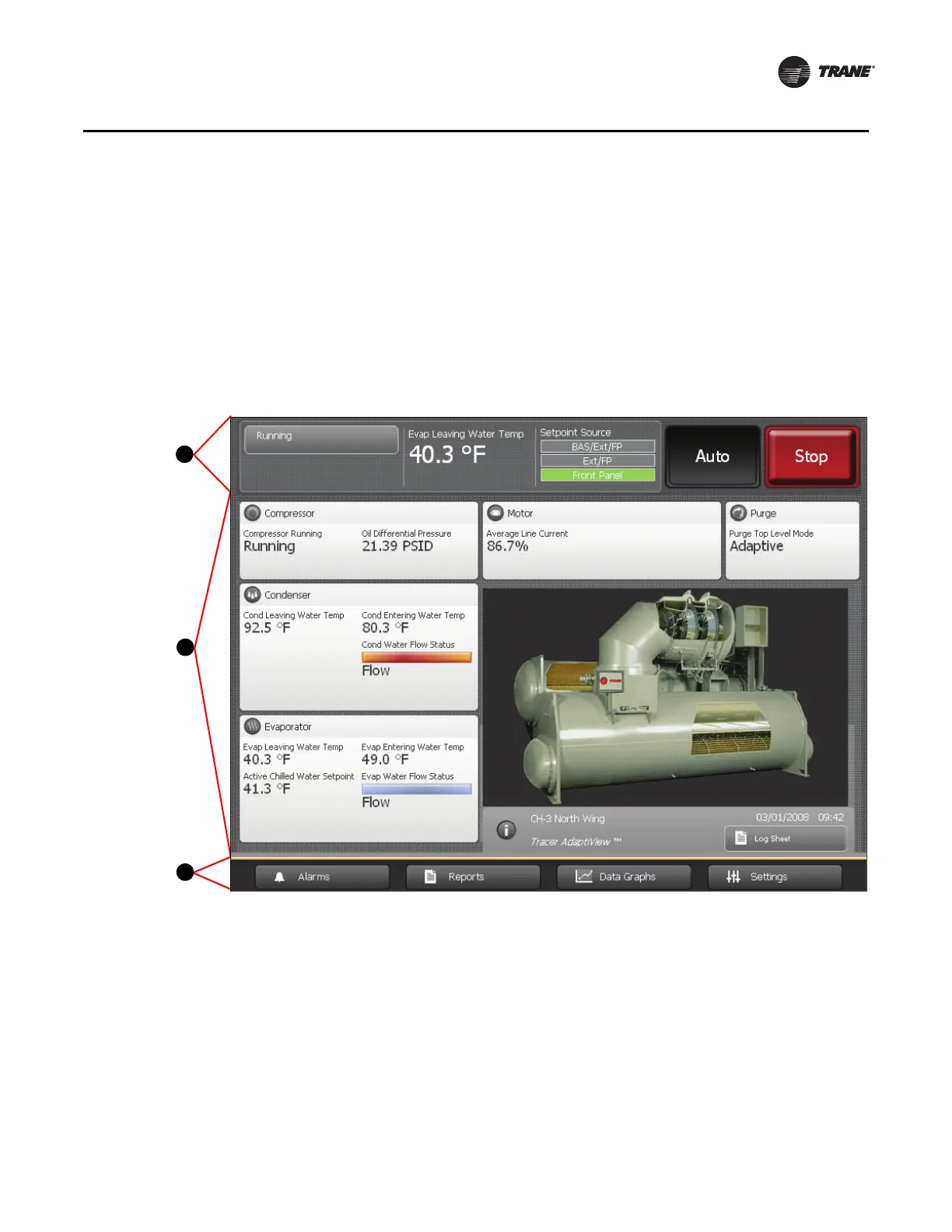

Figure 1. Tracer AdaptiView display (Home screen is shown in example)
1
2
3
