CTV-SVU01B-EN • Tracer AdaptiView Display Operations Guide 9
Introduction
Main Display Area/Home Screen
All screens appear within the main display area. The main display area is between the
chiller status area (p. 8) and the main menu area (p. 13).
Note: The main display area in Figure 1, p. 7, shows the home screen.
Chiller status information
The home screen (Figure 1, p. 7) provides the most frequently needed chiller status
information on “touch targets” (the entire white rectangular areas) for each chiller
component. Touching any touch target displays a screen with data for each component
(see “Component Screens,” p. 12). Each of the touch targets is described in Ta ble 2 .
In the lower right corner of the screen, you can view the date and time from the home
screen as well as view additional chiller information. For details, see the last three rows
of Tab le 2 .

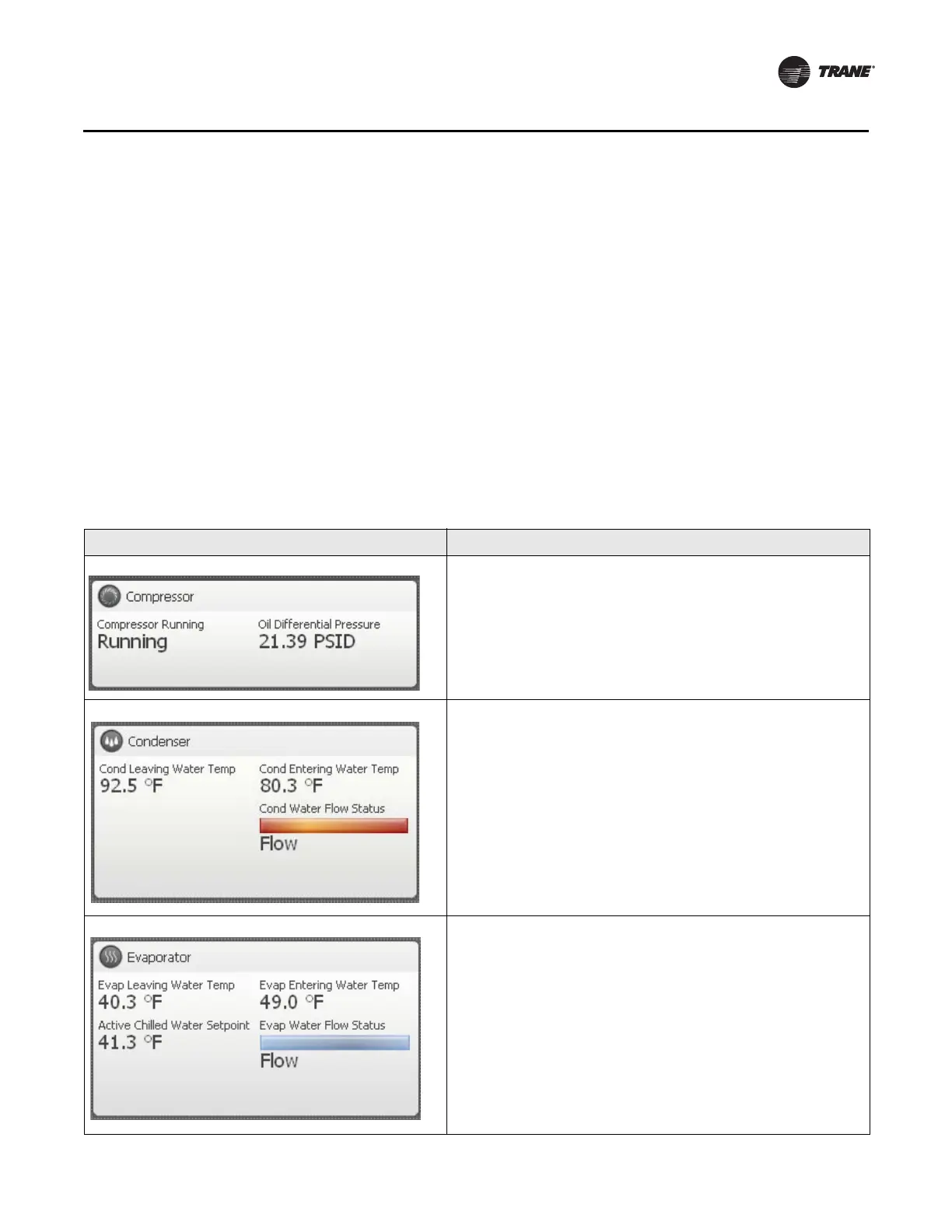

Table 2. Home screen
Touch target Description
Compressor The compressor touch target provides information on:
• Compressor Running Status
• Differential Oil Pressure
Touch anywhere within the white rectangular area to view the
compressor component screen.
Condenser The condenser touch target provides information on:
• Condenser leaving water temperature
• Condenser entering water temperature
• Active hot water setpoint (if hot water control is available)
• Condenser water flow (animation in graphic indicates if
condenser is running)
Touch anywhere within the white rectangular area to view the
condenser component screen.
Evaporator The evaporator touch target provides information on:
• Evaporator leaving water temperature
• Evaporator entering water temperature
• Active chilled water setpoint (if chilled water control is available)
• Evaporator water flow (animation in graphic indicates if
evaporator is running)
Touch anywhere within the white rectangular area to view the
evaporator component screen.
