Connect wireless devices using WPS
Wireless (2.4GHz, 5GHz1, or 5GHz2) > WPS
Note: Please note that wireless bandwidth control is only available when using AP mode.
WPS (Wi-Fi Protected Setup) is a feature that makes it easy to connect devices to your
wireless network. If your wireless devices support WPS, you can use this feature to
easily add wireless devices to your network.
Note: You will not be able to use WPS if you set the SSID Broadcast setting to Disabled or
if you are using WEP security.
There are two methods the WPS feature can easily connect your wireless devices to
your network.
Push Button Configuration (PBC) method
o WPS Software/Virtual Push Button - located in the management
page
PIN (Personal Identification Number) Method - located in the management
page
Note: Refer to your wireless device documentation for details on the operation of WPS.
For connecting additional WPS supported devices, repeat this process for each
additional device.
1. Log into your management page (see “Access the management page” on page
8).
2. Click on the Wireless network you want to configure button (Wireless 2.4GHz,
5GHz1, or 5GHz2) and click WPS.

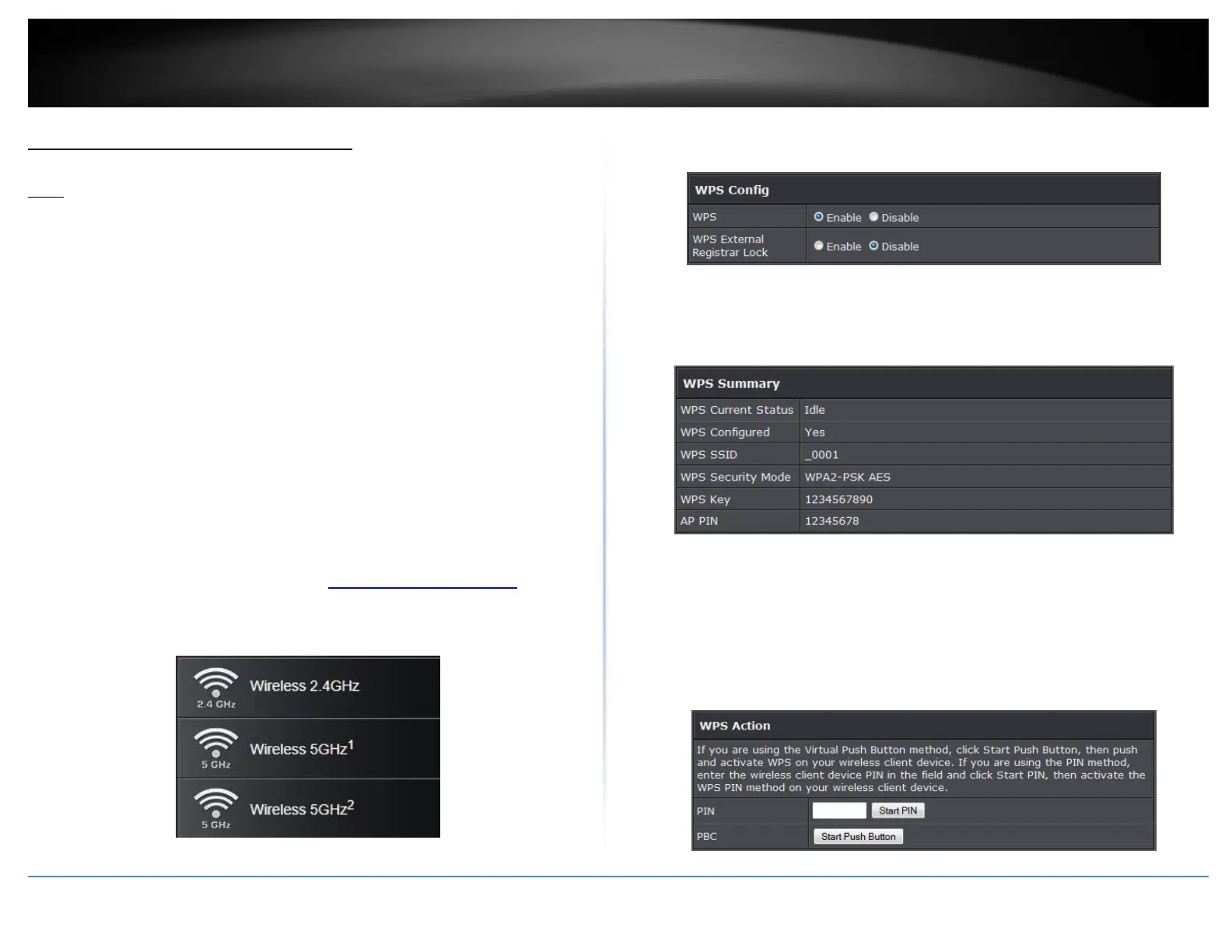

3. Review the following WPS settings:
WPS Config
WPS: Select enable to turn on WPS feature
WPS External Registrar Lock: Select to enable or disable external registrar
feature on the select wireless band.
WPS Summary
WPS Current Status: Displays the status of WPS feature on the selected
wireless band
WPS Configure: Displays the configured mode of the WPS feature
WPS SSID: Displays the SSID of the WPS network
WPS Security Mode: Display the security mode of the WPS network
WPS Key: Displays the security password
AP PIN: Display the WPS PIN information.
WPS Action
