Enkapsis & EnerSure Platform Installation Guide Rev07.2
41

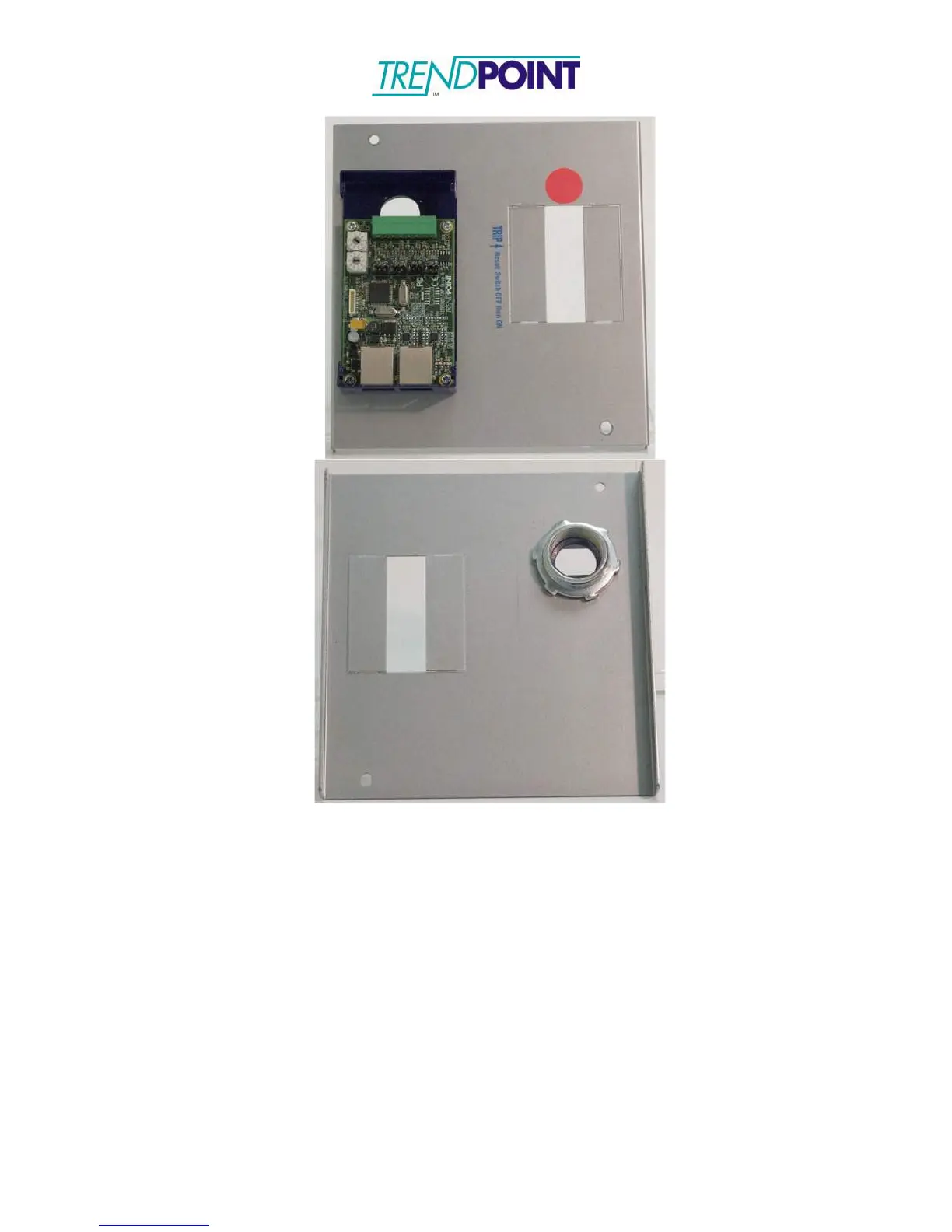

Figure 22: Bus Tap Card mounted on Tap Box and Retention Collar
2.) Connect the Current Transformers to the circuits that are being monitored by this
system. The CT’s should be securely snapped around the wires and placed with the
label facing toward the source of power (bussway rails).
