5700/5800 GPS Receiver User Guide 31
Setting up the Receiver 3
5700 Operation

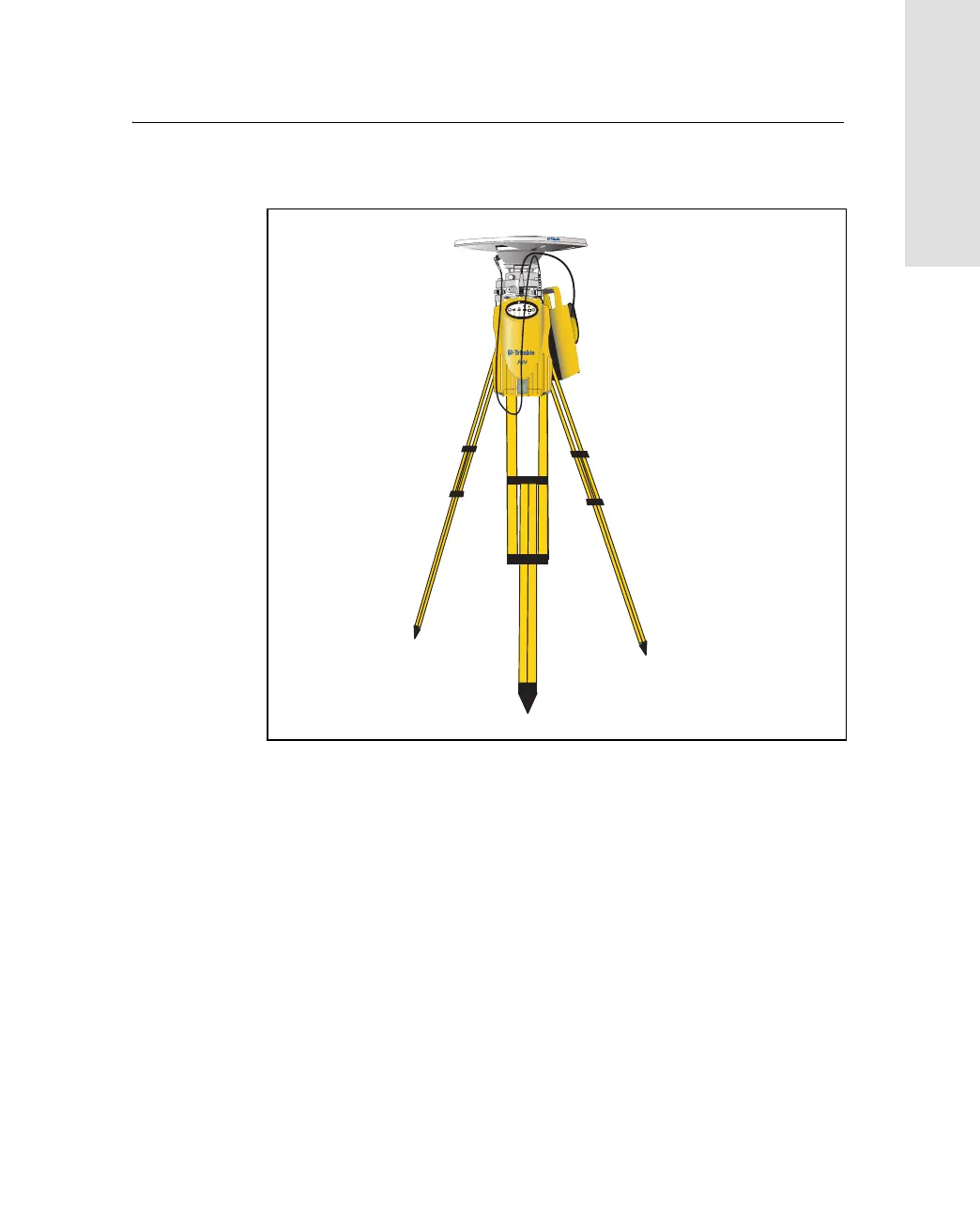

Figure 3.6 shows the 5700 receiver postprocessed setup.
Figure 3.6 Postprocessed setup
Note – Instead of hanging the receiver on the tripod, you can place the
receiver in its base case. Run the antenna cable out of the portal in the
side of the base case to the antenna so that the case can stay closed
while the receiver is running.
