3 Setting up the Receiver
42 5700/5800 GPS Receiver User Guide
5700 Operation

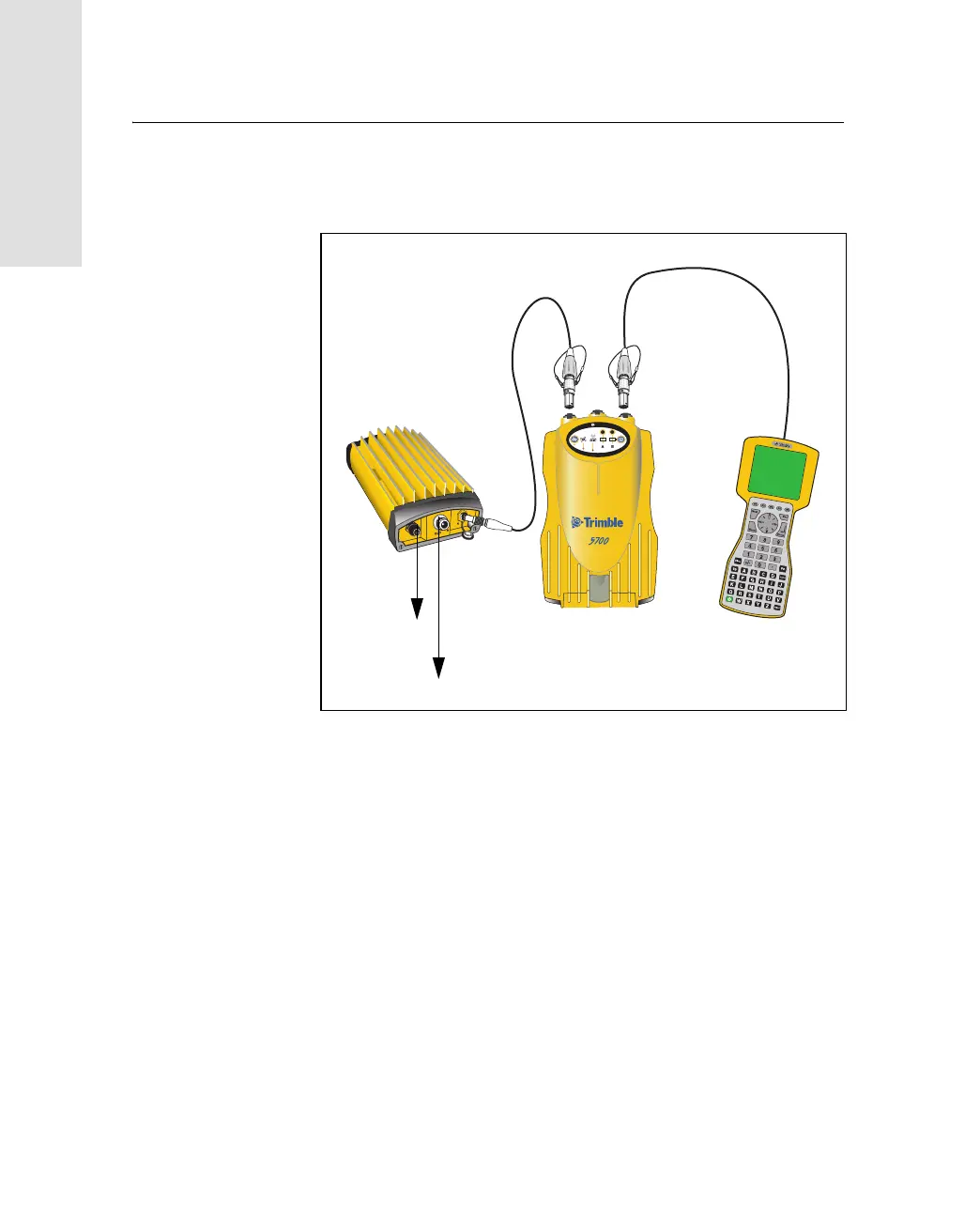

Figure 3.12 shows a TRIMMARK 3 connected to a 5700
receiver.
Figure 3.12 Connecting an external radio
5. Connect an external power source to Port 2 on the receiver.
Note – External rover radios must have their own power source
because the internal Lithium-Ion batteries do not supply enough
voltage. Alternatively, supply external power to port 2 of the
5700 receiver, and enable power out on port 3.
Base radios must have their own power source because of their
high power consumption
2
3
t
To antenna
To power supply
