Triple E COMMANDER Series - DASH CONTROLS (LEFT SIDE)

4-2
COMMANDER / EMBASSY
2. Left Side:
a. Mirror Adjustment - Commander only:
This cluster of switches controls the position
of the rear view mirrors on both sides. Use
the center switch to select the left or right
mirror. Depress and hold the four outer
switches as required to move the mirror to
the desired position.
b. Jacks Down Light (Optional Included With Levelling
System):
This red light indicator alerts the
driver that the levelling jacks are in their
down position. It comes on when the igni-
tion switch is switched on and the jacks are
down.
c. Antenna
d. Headlights:
Ford Chassis has a 3 position rotary switch
which controls the power to the vehicle head
lights. Turn fully counterclockwise to turn
o. Turn clockwise to the rst detent for the
parking and panel lights. Turn fully clockwise
to turn the headlights on at full power.
Workhorse Chassis has a rocker switch. De-
press the switch one notch to turn the park
lights on. Depress it all the way to turn the
headlights on.
e. Panel Lights:
This rotary switch controls the power to the
instrument panel lights. Roll the dial up
decrease the power and turn the lights o.
Roll down to increase power level and light
intensity.
f. Hourmeter (Optional):
IMPORTANT
The Daytime Running Lights (DRL) come
on at partial power whenever the engine
is running. The headlight switch must be
turned on for the headlights to operate at
full power.

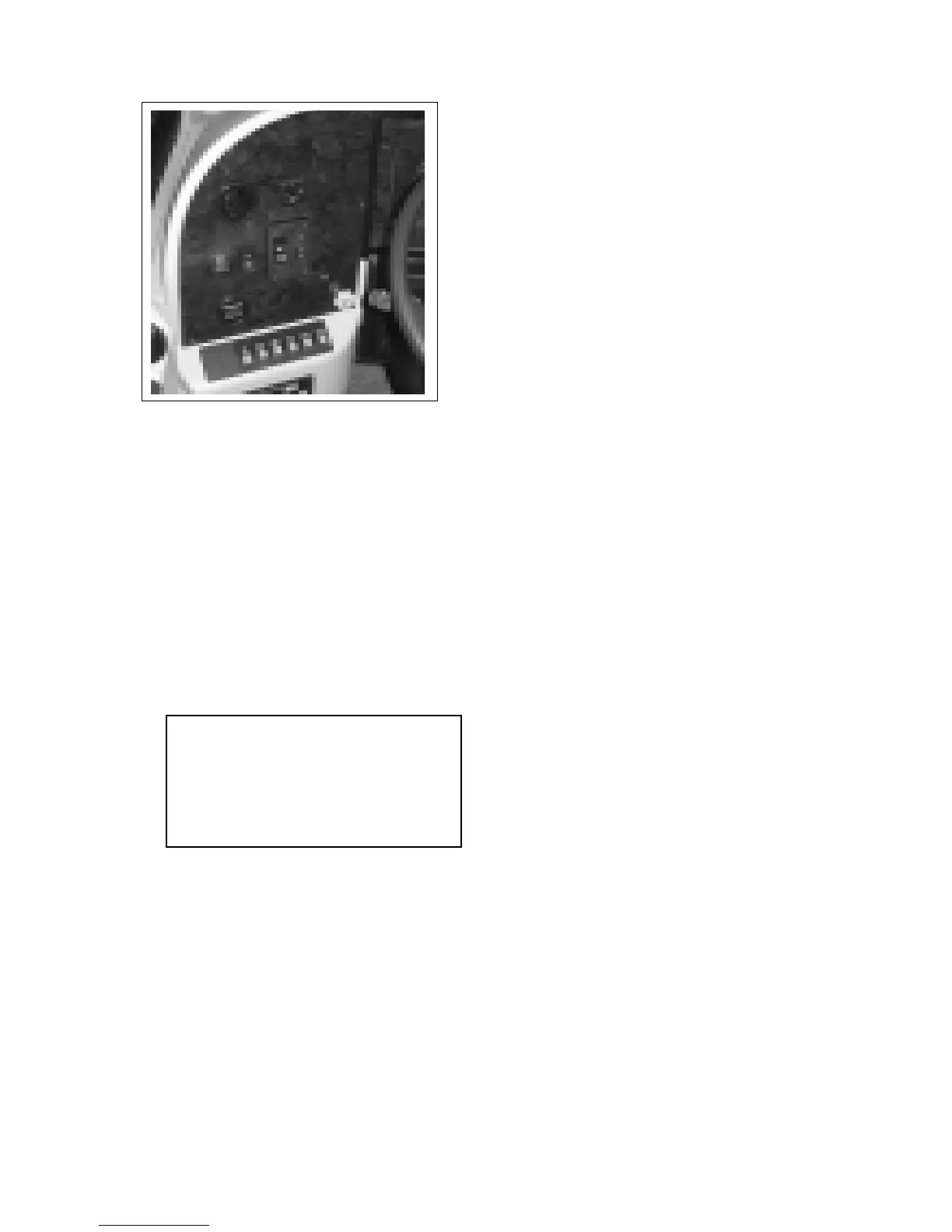

Fig. 4-3 LEFT SIDE - UPPER
e
d
a
b
h
c
This meter displays the generator operating
hours and accumulates time whenever the
generator is running.
g. Park Brake (Workhorse Chassis)
Pull the control knob to engage the parking
brake (See Chassis Operators Manual for
further detaisl).
h. Blank spot (room to add another switch)
k. Blank spot (room to add another switch)
m. Power sunvisor passenger side: (optional):
This push button switch controls the power
to the electric sun visor. Depress the bottom
portion of the switch to lower the sunvisor and
depress the top portion of the switch to raise
it up.
n. Driving Lights
Depress the bottom portion of this switch
to activate the fog lights (only come on with
the headlights in low beam). Depress the top
portion of the switch to turn them o.
o. Rear Docking lights:
This push button switch controls the power
to the rear docking lights. Depress the
bottom of the switch to turn the docking
lights on and the top portion of the switch to
turn it o.
p. Cockpit Overhead Fans (Optional):
This push button switch controls the power
to the fans mounted on the bottom of the
overhead cabinet. Depress the bottom
portion of the switch to turn the fan on and
the top portion of the switch to turn o.
The fans can be rotated to any position you
require.
r. Mirror Heaters - (Commander only):
This push button switch controls the power
to the exterior rear view mirror heaters.
Depress the bottom portion of the switch
to turn the heaters on and the top portion
to turn o. The heater will automatically be
shut o when the ignition switch is turned
o. The heater will also shut o once it
reaches its desired temperature.
s. Coach Battery Connect:
This spring loaded push button switch
controls the interconnect circuit between
the auxiliary and chassis batteries. Depress
and hold the switch to connect the auxiliary
batteries to the chassis batteries. Release the
switch to disconnect. Use this interconnect
only when the chassis batteries are too run
down to start the engine.
f
k
m
n
o
p
r
s
g
