12.1.9 EXTERNAL WATER SUPPLY
The external water source will supply your motorhome
water system with water at city pressure when the water
pump is switched o.
1. Connecting:
a. Turn water pump switch to o.
b. Attach garden hose to city water connection
at water ll selection valve. Turn the water
selector valve to "city water".
c. Turn on external water supply.
IMPORTANT
After connecting to the external water supply, open the
faucets in your motorhome slowly and cautiously. Air
trapped in the line can cause the water to splash into
the sink. You may want to drape a wash cloth over the
faucet to prevent excessive splashing.
2. Turn the water heater by-pass valves to
normal to be sure that water enters the
heater and hot water is available for use.
Water from the external supply is prevented from
entering the water tank and the water pump by
means of a check-valve.
IMPORTANT
Some campgrounds have an excessively high
water pressure which can cause problems. It is
a good idea to get a pressure reducer from your
RV center and attach it to your incoming external
water supply hose to ensure safe pressure for your
unit.
COMMANDER / EMBASSY

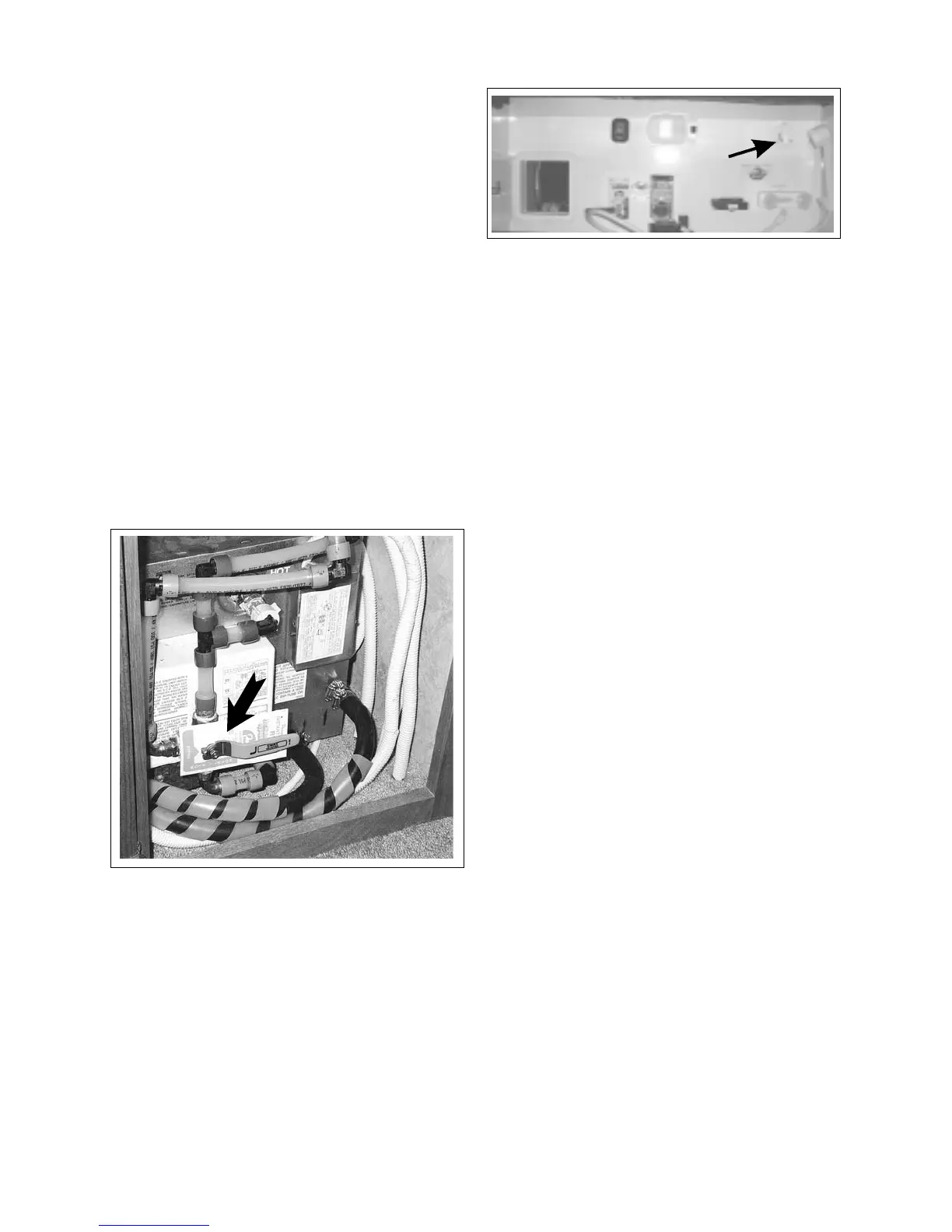

Fig. 12-7 BYPASS VALVE
Fig. 12-6 WATER CONNECTION
(COMMANDER ONLY)
3. Disconnecting:
a. Turn o the external water tap.
b. Relieve water pressure on the line by opening
a faucet in the motorhome.
c. Disconnect hose from the motorhome.
d. Replace the protective plug back over the
water connection.
12.2 WASTE SYSTEMS
12.2.1 GREY WATER - WASTE
HOLDING TANK
The drainage from the kitchen sinks, bathtub and
shower pan is collected in a separate grey water hold-
ing tank. This tank has its own dump valve but ties
into the same termination valve outlet as the waste
holding tank.
IMPORTANT
If grey water holding tank is allowed to overll, the over-
ow may back up through the bathtub/shower drain.
12.2.2 BLACK WATER - WASTE
HOLDING TANK
The black water holding tank collects all the waste
from the toilet and vanity sink. Before using your
waste holding tank, deoderize it by adding one gal-
lon water and a commercial holding tank deoderizer
through the toilet.
IMPORTANT
If holding tank is allowed to overll, the overow may
back up through the toilet drain.
