Triple E COMMANDER Series - Entrance Door

4-9
COMMANDER / EMBASSY
4.9 ENTRANCE DOOR
The entry doorway is equipped with a
switch panel that controls the following
functions:
1. Porch Light:
This 2 position rocker switch con-
trols the power to the outside porch
light. Depress the upper portion of
the switch to turn the porch light on
and the lower portion for o.
2. Step Power:
This 2 position rocker switch con-
trols the power to the side entry
step. Depress the upper portion
of the switch to turn the step
mechanism power on and the lower
portion for o. The step will extend
when the door is opened
and retract when the door is closed. Refer to the
Step System Operator's Manual in the information
package for more detailed instructions on step
extension when occupied, “last out” feature and
retraction for driving.
3. Interior Light:
This 2 position rocker switch controls the
power to a coach interior light. Depress the upper
portion of the switch to turn the light on and the
lower portion for o. The switch on the light must
be in the 'on' position.
4. Storage Lights:
This 2 position rocker switch controls the power
to the lights in all the exterior storage compart-
ments. Depress the upper portion of the switch
to turn the power to the lights on and the lower
portion to turn o. This master switch must be
on before any of the light switches in any exterior
compartment will work.

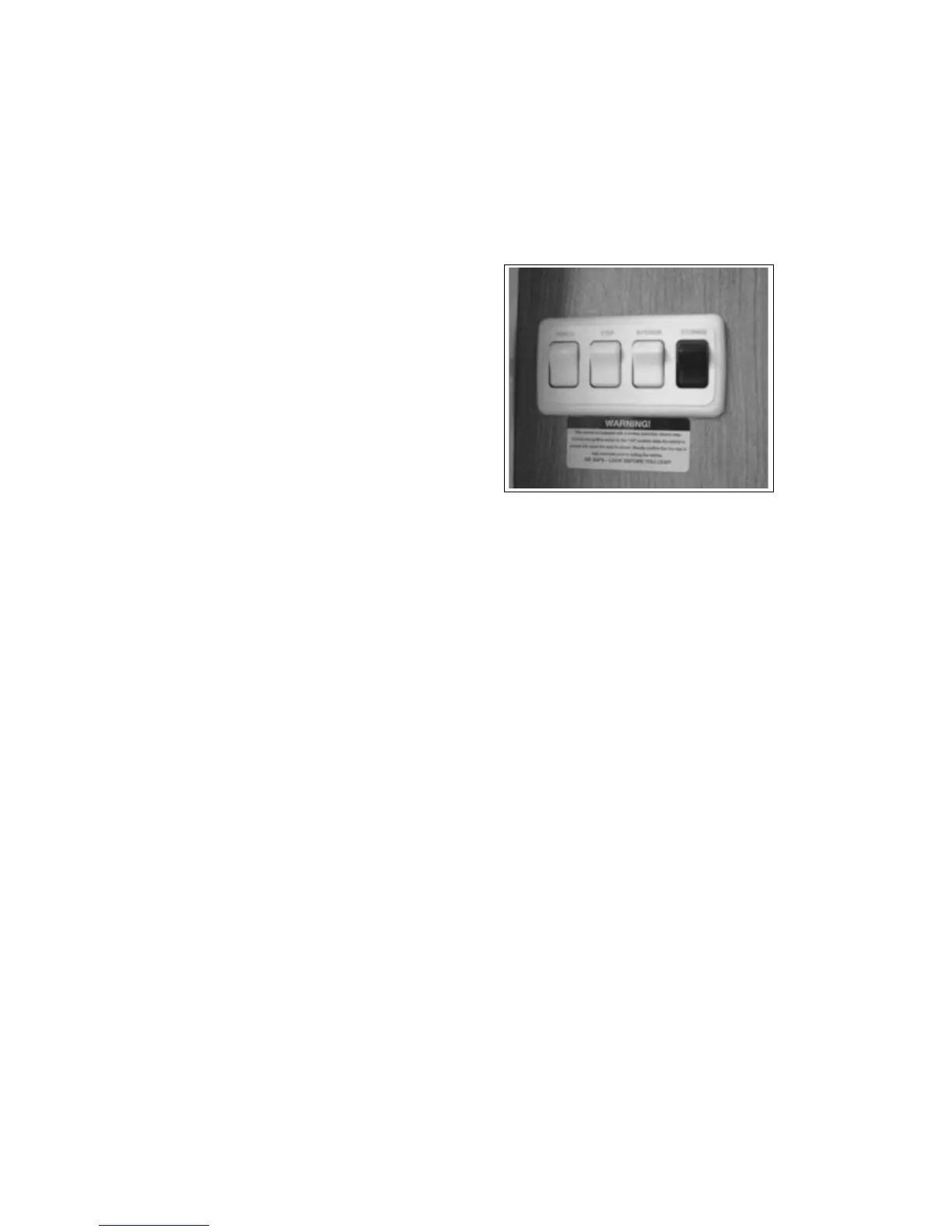

Fig. 4-14 SIDE ENTRY
1
2
3
4
