Triple E COMMANDER Series - Slide-Out Room (Optional)

4-25
COMMANDER / EMBASSY

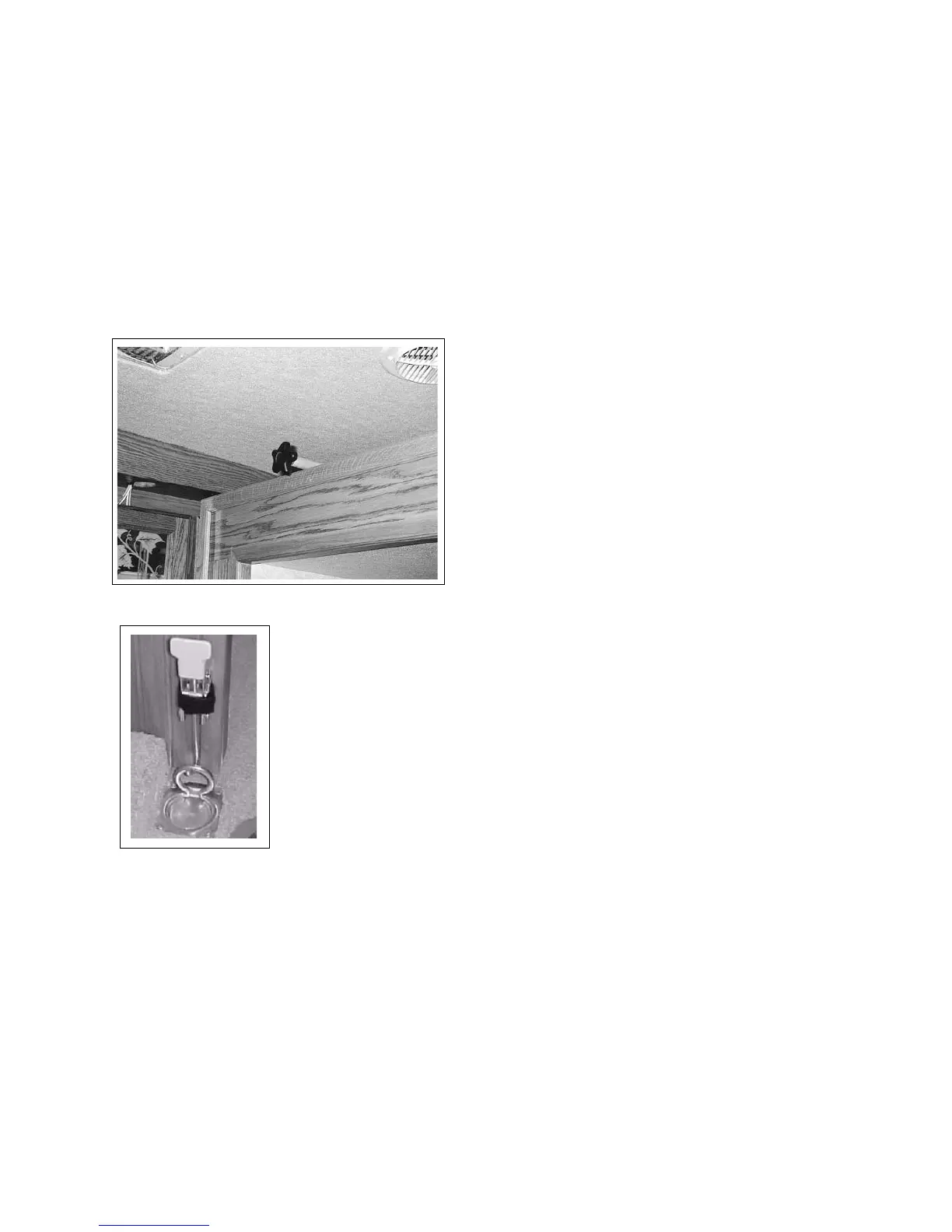

Fig. 4-35 TRAVEL LOCKS (top mounted)
NOTE
Refer to section 9.3 for detailed operating
instructions.
Fig. 4-36 TRAVEL LOCKS (Floor mounted)
3. Slide-Out Room Locks:
This slide-out room assembly is designed with locks
that hold it securely in place for transport. Top
mounted locks are located on the top of the room,
one at each end, Floor mounted locks are located on
the oor. Turn clockwise to secure lock and counter-
clockwise to release. Always secure locks whenever
room is retracted prior to moving the motorhome.
4-25
COMMANDER / EMBASSY
Fig. 4-35 TRAVEL LOCKS (top mounted)
NOTE
Refer to section 9.3 for detailed operating
instructions.
Fig. 4-36 TRAVEL LOCKS (Floor mounted)
3. Slide-Out Room Locks:
This slide-out room assembly is designed with locks
that hold it securely in place for transport. Top
mounted locks are located on the top of the room,
one at each end, Floor mounted locks are located on
the oor. Turn clockwise to secure lock and counter-
clockwise to release. Always secure locks whenever
room is retracted prior to moving the motorhome.
