Triple E COMMANDER Series - SLIDE-OUT ROOM OPERATION

4-24
COMMANDER / EMBASSY

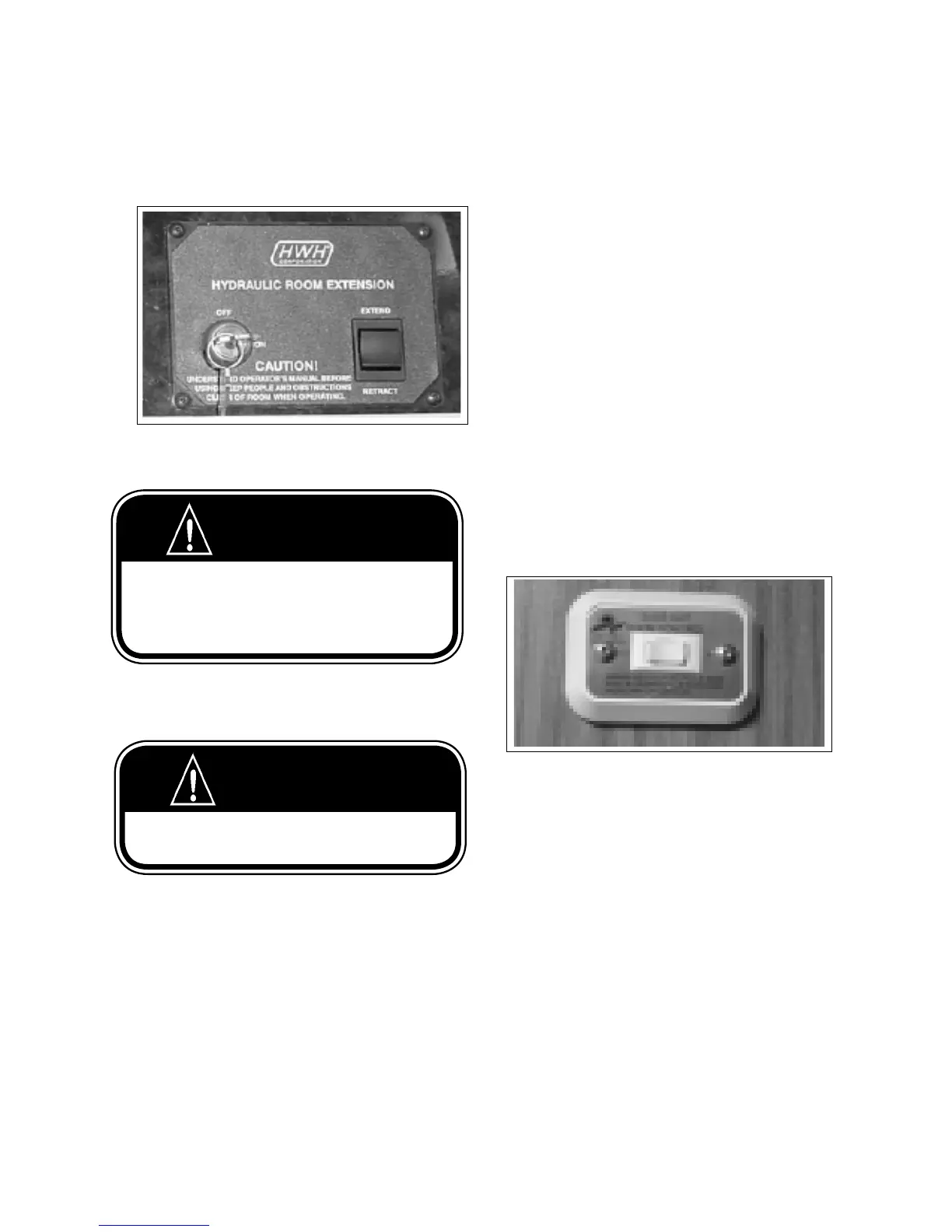

Fig. 4-33 MAIN & GALLEY SLIDE
CONTROL PANEL
1. Control Panel (Main or Galley Slides):
This panel controls the operation of the Main or
Galley slide-out room. Review the extend/retract
procedure before operating these controls.
a. Key Switch:
This key switch controls the power to the
pump that supplies pressurized oil to the
hydraulic cylinders that extend and retract the
room. Always turn the switch o unless mov-
ing the slide-out room. See operating instruc-
tions in the Owner's Information Package.
4.19 SLIDE-OUT ROOM (SLIDE-OUT EQUIPPED MODELS ONLY)
a
b
Fig. 4-34 BEDROOM AND WARDROBE SLIDE CONTROL
SWITCH
b. Extend/Retract:
This spring-loaded to center neutral rocker
switch controls the movement and direction
of the slide-out room. Depress and hold the
top portion of the switch to extend the room.
Depress and hold the bottom portion of the
switch to retract the room. Release the switch
for it to return to centre and the room will
stop moving.
IMPORTANT
Release the switch when the extend/retract cylinders
reach the end of their stroke. The pressure of the hy-
draulic circuit will change when the cylinders reach the
end of their strokes and the pump sound will change.
Release the switch when the sound changes.
2. Control Panel (Bedroom & Wardrobe Slide):
This panel controls the operation of the Bedroom
or Wardrobe slide. Review the extend/retract pro-
cedure before operating these controls.
Extend/Retract:
This spring-loaded to center neutral rocker
switch controls the movement and direction
of the slide-out room. Depress and hold the
'out' side of the switch to extend the room.
Depress and hold the 'in' side of the switch to
retract the room. Release the switch for it to
return to centre and the room will stop mov-
ing.
CAUTION
Extend levelling jacks on to a rm supporting base
and level unit before extending room.
Make sure travel locks are removed before extending
the slide-out.
Make sure travel locks are fastened securely before
moving the motorhome.
WARNING
Keep People clear of room while in operation. Make
sure room area is free of obstacles.
WARNING
