Triple E COMMANDER Series - SLIDE OUT ROOM OPERATION

9-3
COMMANDER / EMBASSY
9.3 SLIDE OUT ROOM
A motorhome may be equipped with one or more
expandable slide out room(s) to provide more living
area for the occupants. Triple E supplies a video
explaining the operation of the slide out system with
each slide out equipped model. Please use this video
to familiarize yourself with the operations of this
system.
9.3.1 SLIDE OUT ROOM OPERATION
Follow this procedure when using slide out room:
1. Be sure that motorhome is properly levelled
before opening the slide-out room(s).
IMPORTANT
If the unit is not properly levelled before extending
the room, the slide out mechanism may bind and be
damaged. The levelling jacks must be down and the
lights on the jack control panel on in order for the
slide out control to operate.
2. Before operating slide out:
a. If this is the rst time you are operating the
slide-out, take time to view the video on
Operating the Slide-Out that you received
from your dealer at the time of delivery.
b. Level the motorhome following the instructions
in Levelling Your Motorhome.
c. Make sure there is adequate space beside
your motorhome for the slide-out room to be
extended.
d. Remove the two travel locks located at oor
level on a galley slide unit or above the slide-
out on all other slide models.
e. Check the interior of the slide-out to make
sure there are no obstructions on the oor

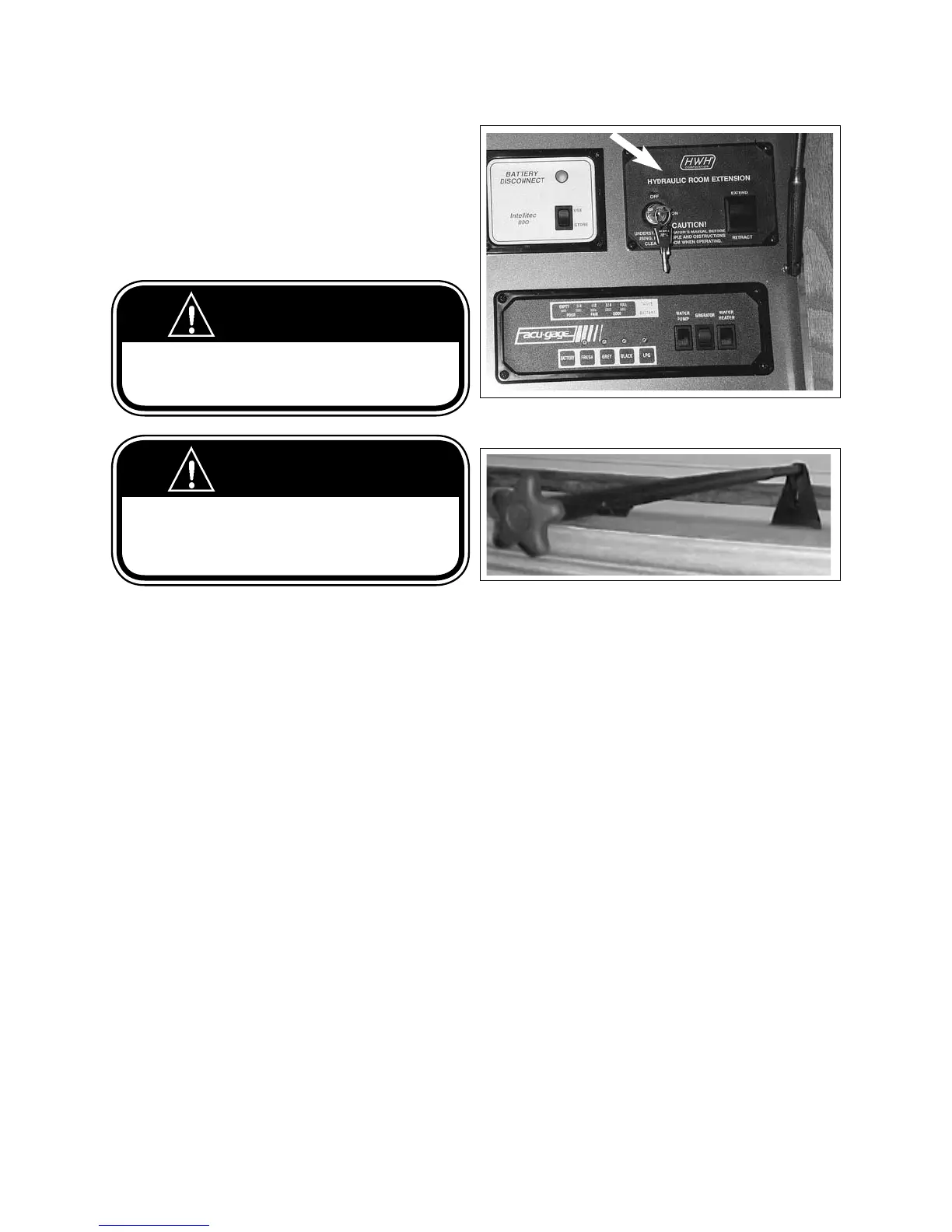

Fig. 9-3 CONTROL PANEL
Fig. 9-4 TRAVEL LOCKS
or leaning against the walls. Close all cabinet
doors.
f. Check the exterior of the unit to ensure all
baggage doors are closed and all obstructions
are removed.
g. Make sure all people stand clear before
operating the slide-out room controls.
IMPORTANT
The hydraulics that operate the Main and Galley
slide-out are run by a 12-volt pump. When
operating the slide-out, make sure your batteries
are fully charged or you are hooked up to 120 volt
power. You may also choose to use the Generator
(optional) on your motorhome.
CAUTION
If your Motorhome is equipped with more than one
slide-out, Do Not operate both at once. This could
overload the electrical circuit and cause it to trip.
Make very sure that everyone is standing clear of the
interior and exterior path of the slide-out as you extend
and retract it.
WARNING
Make sure travel locks are removed before extending
the slide-out.
Make sure travel locks are fastened securely before
moving the motorhome.
WARNING
9-3
COMMANDER / EMBASSY
9.3 SLIDE OUT ROOM
A motorhome may be equipped with one or more
expandable slide out room(s) to provide more living
area for the occupants. Triple E supplies a video
explaining the operation of the slide out system with
each slide out equipped model. Please use this video
to familiarize yourself with the operations of this
system.
9.3.1 SLIDE OUT ROOM OPERATION
Follow this procedure when using slide out room:
1. Be sure that motorhome is properly levelled
before opening the slide-out room(s).
IMPORTANT
If the unit is not properly levelled before extending
the room, the slide out mechanism may bind and be
damaged. The levelling jacks must be down and the
lights on the jack control panel on in order for the
slide out control to operate.
2. Before operating slide out:
a. If this is the rst time you are operating the
slide-out, take time to view the video on
Operating the Slide-Out that you received
from your dealer at the time of delivery.
b. Level the motorhome following the instructions
in Levelling Your Motorhome.
c. Make sure there is adequate space beside
your motorhome for the slide-out room to be
extended.
d. Remove the two travel locks located at oor
level on a galley slide unit or above the slide-
out on all other slide models.
e. Check the interior of the slide-out to make
sure there are no obstructions on the oor
Fig. 9-3 CONTROL PANEL
Fig. 9-4 TRAVEL LOCKS
or leaning against the walls. Close all cabinet
doors.
f. Check the exterior of the unit to ensure all
baggage doors are closed and all obstructions
are removed.
g. Make sure all people stand clear before
operating the slide-out room controls.
IMPORTANT
The hydraulics that operate the Main and Galley
slide-out are run by a 12-volt pump. When
operating the slide-out, make sure your batteries
are fully charged or you are hooked up to 120 volt
power. You may also choose to use the Generator
(optional) on your motorhome.
CAUTION
If your Motorhome is equipped with more than one
slide-out, Do Not operate both at once. This could
overload the electrical circuit and cause it to trip.
Make very sure that everyone is standing clear of the
interior and exterior path of the slide-out as you extend
and retract it.
WARNING
Make sure travel locks are removed before extending
the slide-out.
Make sure travel locks are fastened securely before
moving the motorhome.
WARNING
