Triple E COMMANDER Series - DRIVERS;CO-PILOT SEAT OPERATION

4-4
COMMANDER / EMBASSY

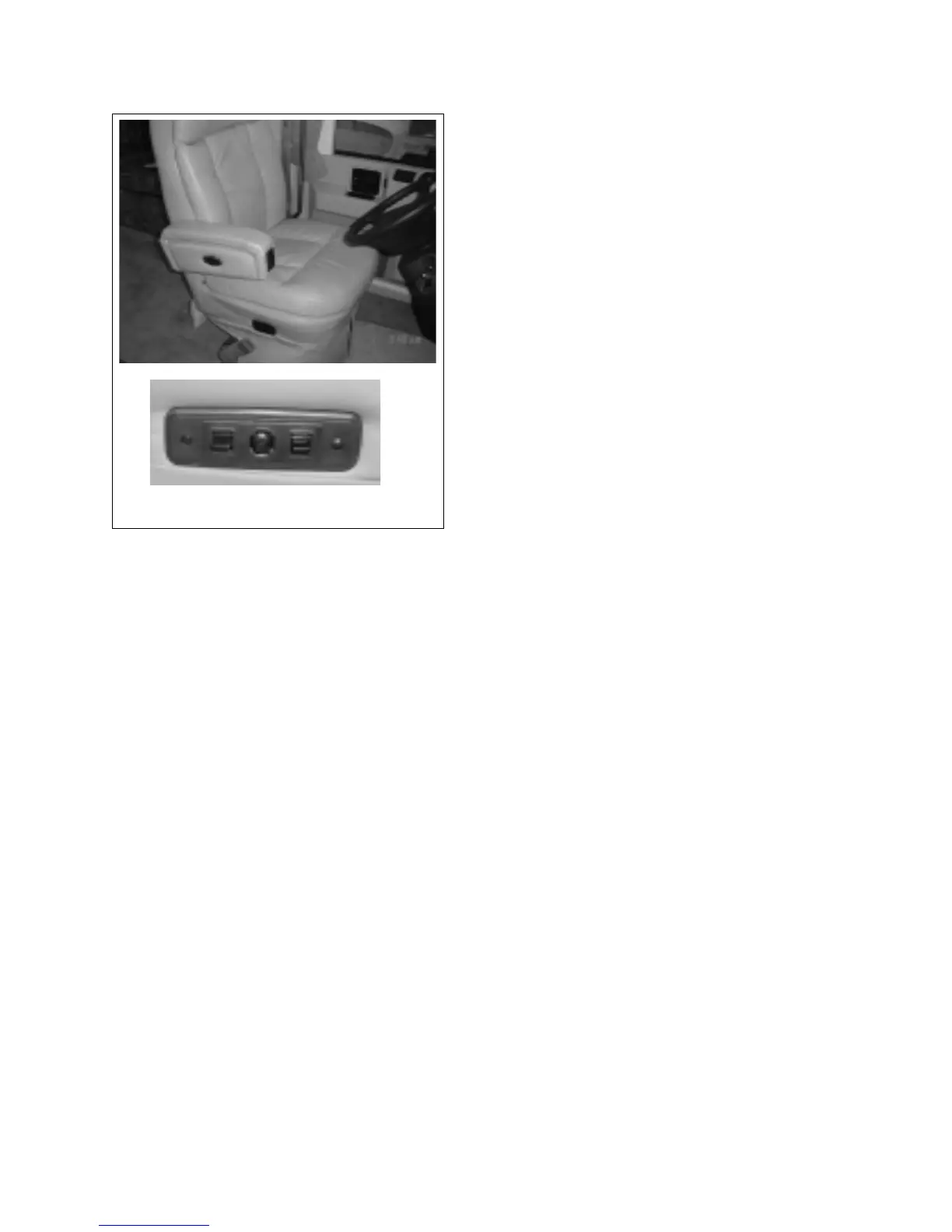

Fig. 4-7 CO-PILOT SEAT CONTROL (TYPICAL)
3
1
a
4.4 DRIVERS/CO-PILOT SEAT
1. Forward-Back Position (Non-Powered Seat): Both
the drivers and co-pilot seats are designed with
a sliding base to allow the seat to be moved
forward or backward for occupant comfort.
A spring loaded latch is located at the right side
of the seat to release the sliding base. Pull on the
latch to release the lock, slide the seat as desired
and release the latch to lock it in position.
2. Swivel Lock:
Both the drivers and co-pilot seats are designed
with a swivel base to allow the seat to be used for
driving or as part of the living room.
A spring loaded latch is located at the right side
of the seat to release the swivel lock. Pull up on
the latch to release the lock. Swivel the seat as
desired. When the seat is turned facing forward
the swivel lock will automatically engage and
secure the seat. Do not move the vehicle unless
the drivers and co-pilots seats are locked in the
forward facing direction. On some oor plans the
seat may have to be moved to the most forward
position to rotate it.
3. Arm Rest Lock:
The arm rests are designed for individual
adjustment. A spring loaded lever is located at the
tip of the arm rest. Pull the lever to release and
adjust the arm rest. Release the lever to lock it in
place.
4. Back Rest Angle:
This spring loaded lever located on the left
side of the seat controls the lock on the back rest
angle position mechanism. Pull the lever up and
hold to release the position lock. Gently lean
back to push the back rest down. Lean forward
to allow the back rest to tilt up. Release the lever
to engage the lock and hold the back rest in
position.
Power Seat Control (Optional on some mod-
els):
a. Front Of Seat Height:
This spring loaded to centre toggle switch sets
the height of the front of seat. Pull up and hold
the switch to raise the front of the seat. Push
down and hold to lower the front of the seat.
b. Forward-Back Up-Down Position:
This spring loaded to centre toggle switch sets
the longitudinal (forward-back) and the height
position of the seat. Push the switch forward
and hold to move the seat forward. Push the
switch rearward and hold to move the seat
back. Push the switch up and hold to move
the seat up. Push the switch down and hold to
move the seat down.
c. Back Of Seat Height:
This spring loaded to centre toggle switch sets
the height of the back of the seat. Pull up and
hold to raise the rear of the seat. Push down
and hold to lower the back of the seat.
