Triple E COMMANDER Series - SLIDE-OUT ROOM EMERGENCY OPERATION

9-5
COMMANDER / EMBASSY
9.3.2 SLIDE-OUT ROOM EMERGENCY
OPERATION
1. Main Slide
The slide out room can be manually retracted in
case of system failure.
Before starting to manually retract the Slide-out
room check the battery voltage. If the voltage is
low have the batteries recharged and try again.
Before manually retracting the slide-out room
check to see if there are any obstructions. See the
Owners's information package for information how
to release the hydraulic system pressure. Attach
the winch to the entrance door step or the cocktail
chair pedestal (depending on the model) and then
hook the strap to the couch seat belt or special
bracket attached to the base of the couch. Turn the
winch crank to apply pressure to the room.
CAUTION
Maintain a rm grip on the winch handle at all
times. Never release the handle when rachet lever
is in the o position and the winch is loaded.
The winch handle could spin violently and cause
personal injury.
Lift up the room on both sides at the same time
(about 10 milimeters or half and inch at a time)
using two bottle jacks placed in the opening
underneath the slide-out room. Use a block of
wood to protect the slide-out oor from being
damaged by the jack. See Fig.9-6. Raise each jack
about 10 mm (half an inch) at a time Keep turning
the winch crank to move the room up and in.
Install travel locks.
Refer to the Triple E supplied video and the HWH

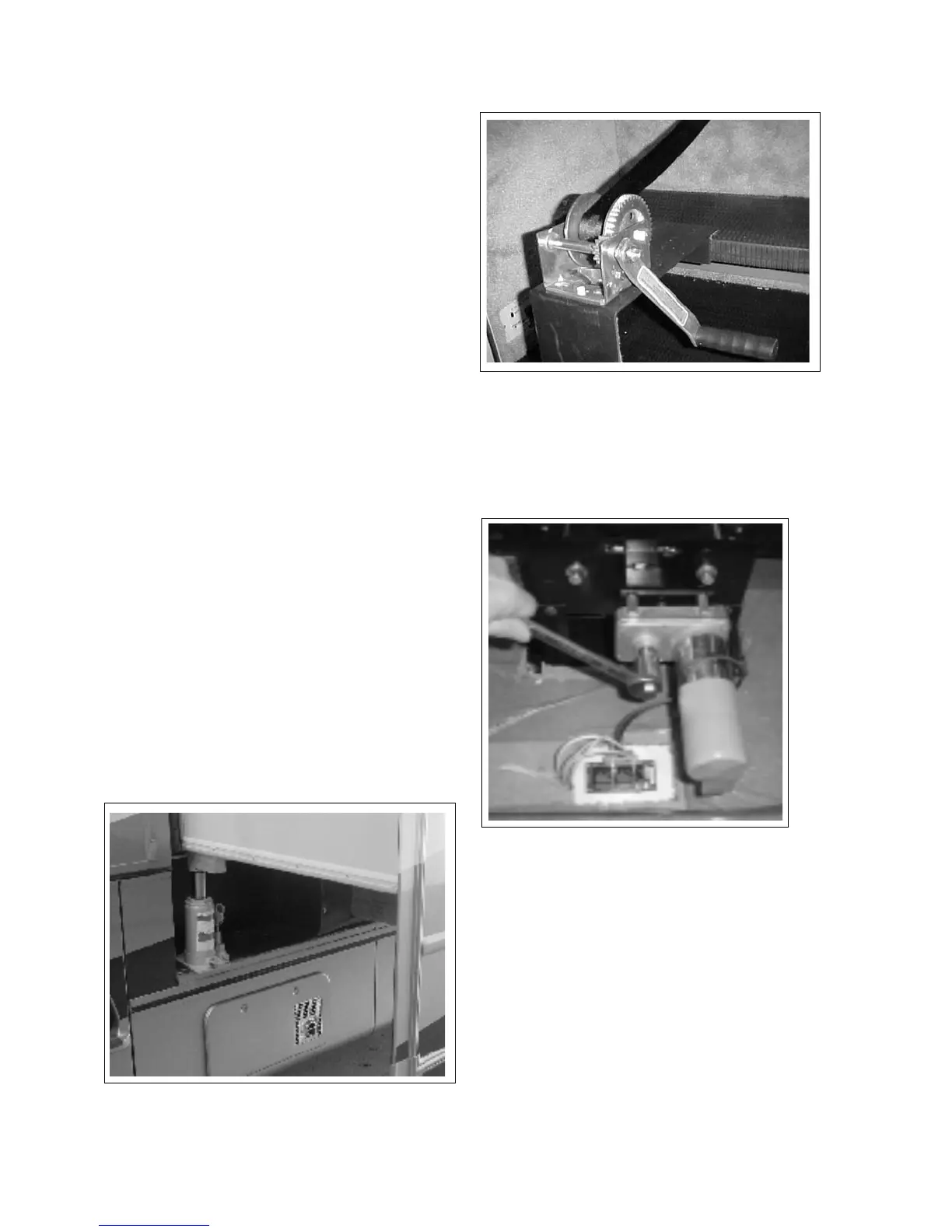

Fig. 9-6 BOTTLE JACK LOCATION
Fig. 9-7 WINCH ANCHORS
Operator's manual in the Owner's Information
package for further information.
2. BEDROOM & WARDROBE SLIDE
The slide out room can be manually retracted in
Fig. 9-8 ELECTRIC MOTOR
1
2
case of system failure.
Before starting to manually retract the Slide-out
room check the battery voltage. If the voltage is low
have the batteries recharged and try again.
Before manually retracting the slide-out room check
to see if there are any obstructions.
Locate the electric motor under the bed or below
the oor. Push the power lock control lever '1'
sideways to disengage the motor. Apply a wrench
to the manual control tting '2' and turn it to bring
the slide-out room in. Install the travel locks.
9-5
COMMANDER / EMBASSY
9.3.2 SLIDE-OUT ROOM EMERGENCY
OPERATION
1. Main Slide
The slide out room can be manually retracted in
case of system failure.
Before starting to manually retract the Slide-out
room check the battery voltage. If the voltage is
low have the batteries recharged and try again.
Before manually retracting the slide-out room
check to see if there are any obstructions. See the
Owners's information package for information how
to release the hydraulic system pressure. Attach
the winch to the entrance door step or the cocktail
chair pedestal (depending on the model) and then
hook the strap to the couch seat belt or special
bracket attached to the base of the couch. Turn the
winch crank to apply pressure to the room.
CAUTION
Maintain a rm grip on the winch handle at all
times. Never release the handle when rachet lever
is in the o position and the winch is loaded.
The winch handle could spin violently and cause
personal injury.
Lift up the room on both sides at the same time
(about 10 milimeters or half and inch at a time)
using two bottle jacks placed in the opening
underneath the slide-out room. Use a block of
wood to protect the slide-out oor from being
damaged by the jack. See Fig.9-6. Raise each jack
about 10 mm (half an inch) at a time Keep turning
the winch crank to move the room up and in.
Install travel locks.
Refer to the Triple E supplied video and the HWH
Fig. 9-6 BOTTLE JACK LOCATION
Fig. 9-7 WINCH ANCHORS
Operator's manual in the Owner's Information
package for further information.
2. BEDROOM & WARDROBE SLIDE
The slide out room can be manually retracted in
Fig. 9-8 ELECTRIC MOTOR
1
2
case of system failure.
Before starting to manually retract the Slide-out
room check the battery voltage. If the voltage is low
have the batteries recharged and try again.
Before manually retracting the slide-out room check
to see if there are any obstructions.
Locate the electric motor under the bed or below
the oor. Push the power lock control lever '1'
sideways to disengage the motor. Apply a wrench
to the manual control tting '2' and turn it to bring
the slide-out room in. Install the travel locks.
