4-19
COMMANDER / EMBASSY
9. Discharge Outlet:
a. Discharge Fitting:
This tting carries the discharge
from the grey and black water tanks.
Connect the discharge line to the
tting and route into an approved
sanitary disposal system. Install dust
cap when the discharge hose is
removed.
b. Black Water Tank Valve:
This is the discharge valve for the
black water tank. Pull out to open
valve and push in to close.
c. Grey Water Tank Valve:
This is the discharge valve for the
grey water tank. Pull out to open
valve and push in to close. Always
empty black water tank rst and
then the grey water. This procedure
will use the grey water to rinse the
discharge sewer hose.

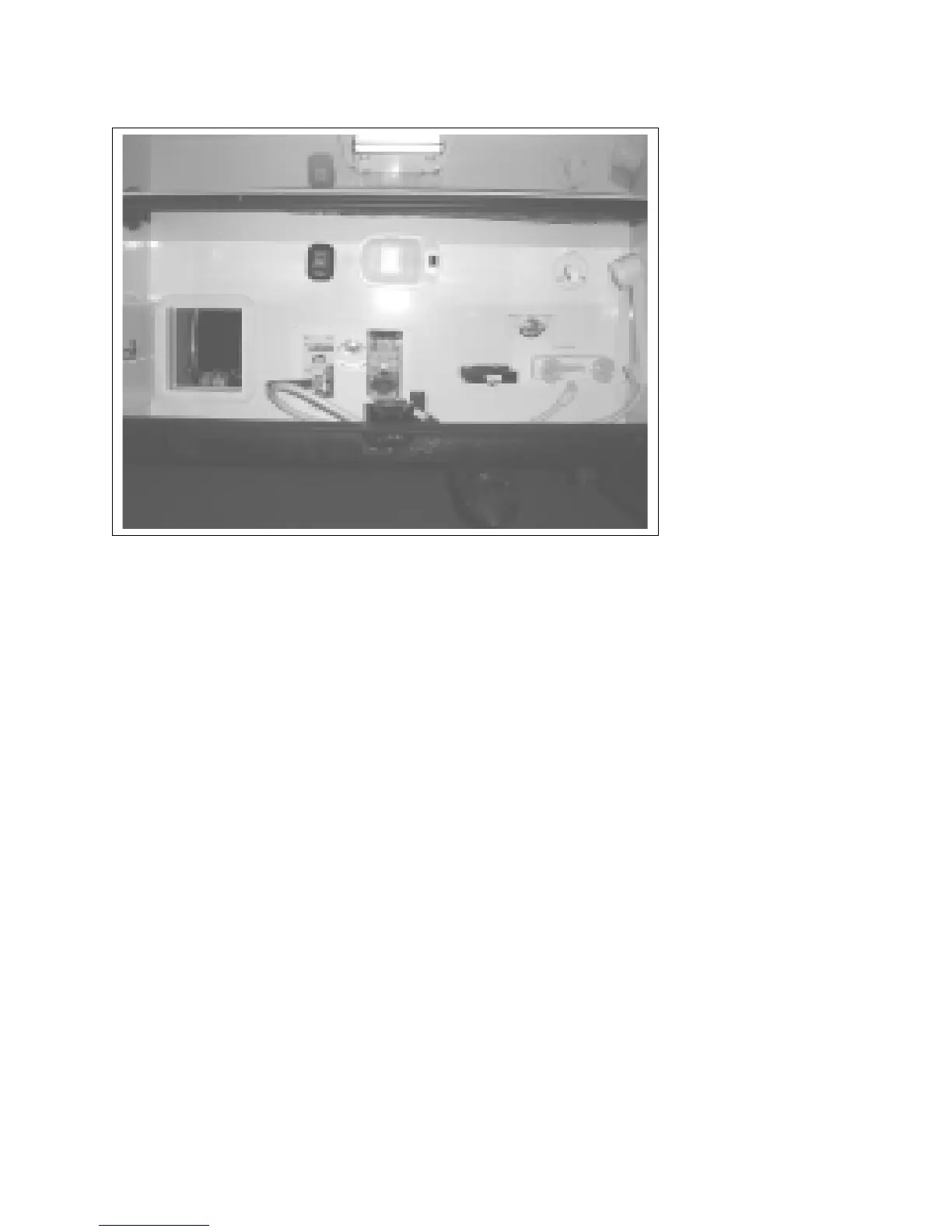

Fig. 4-25 UTILITY COMPARTMENT
9
b
c
a
4-19
COMMANDER / EMBASSY
9. Discharge Outlet:
a. Discharge Fitting:
This tting carries the discharge
from the grey and black water tanks.
Connect the discharge line to the
tting and route into an approved
sanitary disposal system. Install dust
cap when the discharge hose is
removed.
b. Black Water Tank Valve:
This is the discharge valve for the
black water tank. Pull out to open
valve and push in to close.
c. Grey Water Tank Valve:
This is the discharge valve for the
grey water tank. Pull out to open
valve and push in to close. Always
empty black water tank rst and
then the grey water. This procedure
will use the grey water to rinse the
discharge sewer hose.
Fig. 4-25 UTILITY COMPARTMENT
9
b
c
a
