Trolex Sentro 8 - Page 31

TX9165 User Manual
TX9165-UM-EN-07 31

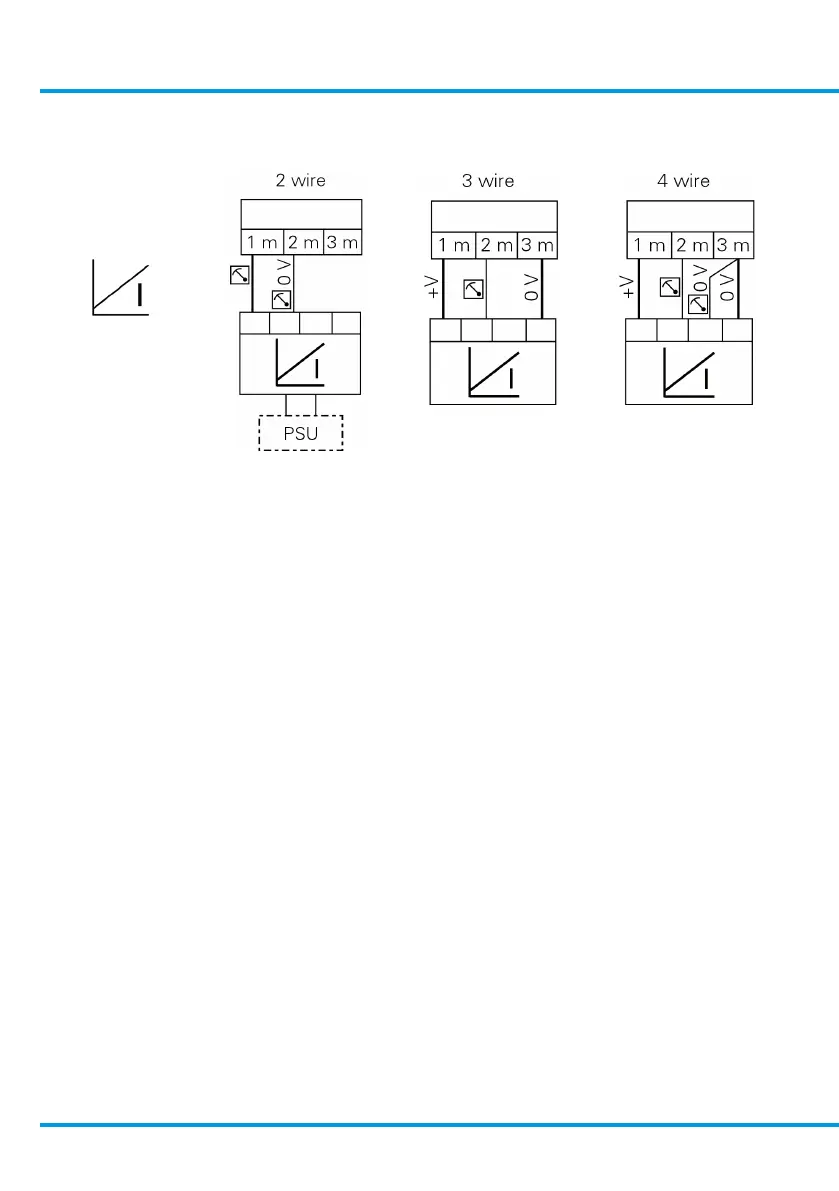

0.4 to 2 V Analogue Sensing Module
TX9160.303
• 2 wire voltage
signal
• Sensor powered
from independent
or integral local
power supply
• 2 wire voltage
signal
• + V power supply to
sensor
• 0 V power supply to
sensor combined
with 0 V signal
• 2 wire voltage
signal
• + V power supply to
sensor
• 0 V power supply to
sensor combined
with a 0 V signal
on separate
conductors
rModule
Max. cable length 10 mA
Sensor
40 mA
Sensor
10 mA
Sensor
40 mA
Sensor
1.5 mm
2
2.5 mm
2
4000 m
10000 m
80 m
200 m
20 m
50 m
200 m 2000 m
Volt drop introduced
on to the common 0 V
line by the supply feed
to the sensor will be
superimposed on to
the signal. The signal
accuracy shift caused
by this is the factor that
limits the cable length.
The potential cable
length is limited by the
permissible volt drop in
the + V and 0 V power
supply feed conductors
to the sensor, that will
ensure an adequate
operating voltage supply
at the sensor.
Input impedance >10 k ohms
Sensor voltage
TX9165.01
TX9165.03
Use 12 V dc sensor
Use 24 V dc sensor
12 V dc via module
24 V dc via module
12 V dc via module
24 V dc via module
Sensor current
available
Line powered 100 mA 100 mA
