Trolex Sentro 8 - Pulse Time; Assign Fault

TX9165 User Manual
TX9165-UM-EN-07 79
Latch
The output relay will power-down when the
Setpoint Command is activated On and
Latch until reset.
To reset a latched relay:

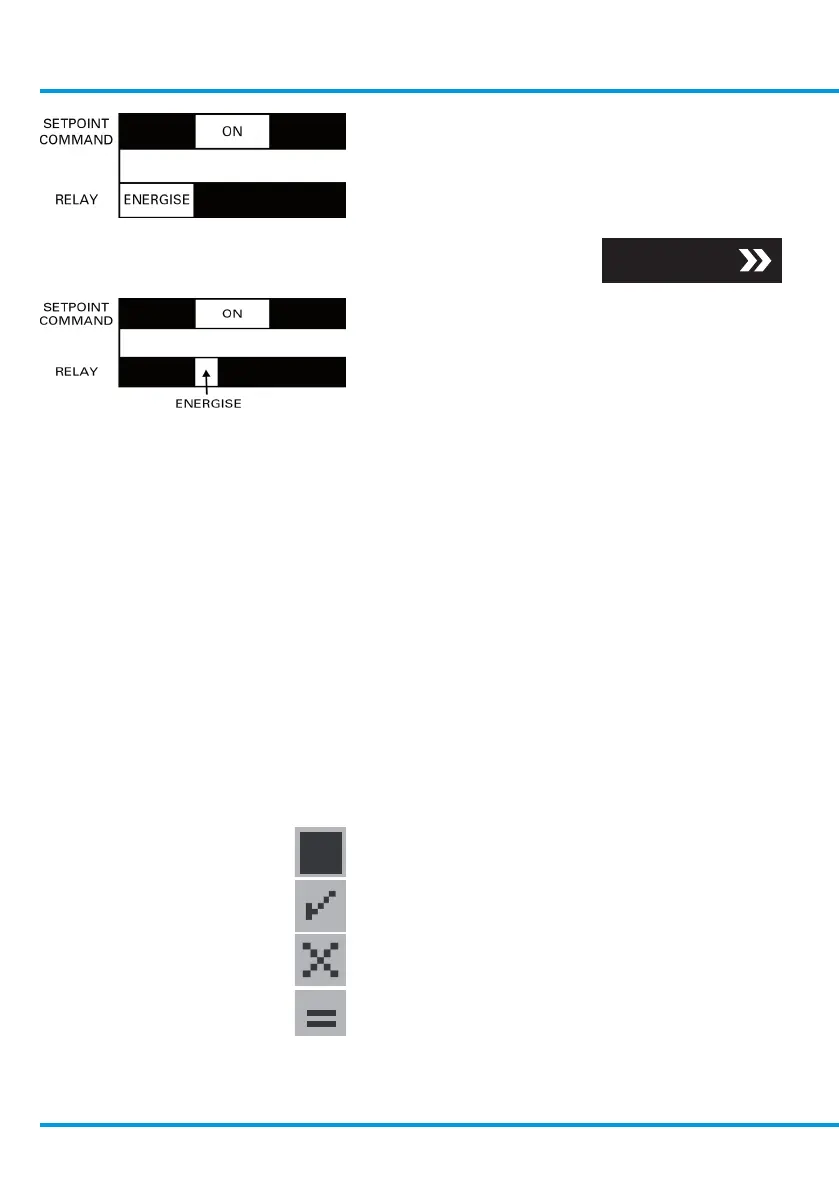

Pulse
The output relay will power-up when the
Setpoint Command is activated On and
power-down after an adjustable time.
4.6.2 Pulse Time
Set the length of relay pulse when operating
in Pulse Mode, 0 to 25 seconds.
4.6.3 Assign Fault
The function of each relay is monitored for
correct operation and the Setpoint On alarm
state can be assigned to:
• Relay 1 output
• Relay 2 output
• Relay 3 output
• Relay 4 output
• The on-board audio/visual alarm
The screen prompts are as follows:
• Cursor
• Power-up the selected relay
• Reset a latched relay
• Audio alarm severity
