Trolex Sentro 8 - Start-Up Screen; Base Screens

40 TX9165-UM-EN-07

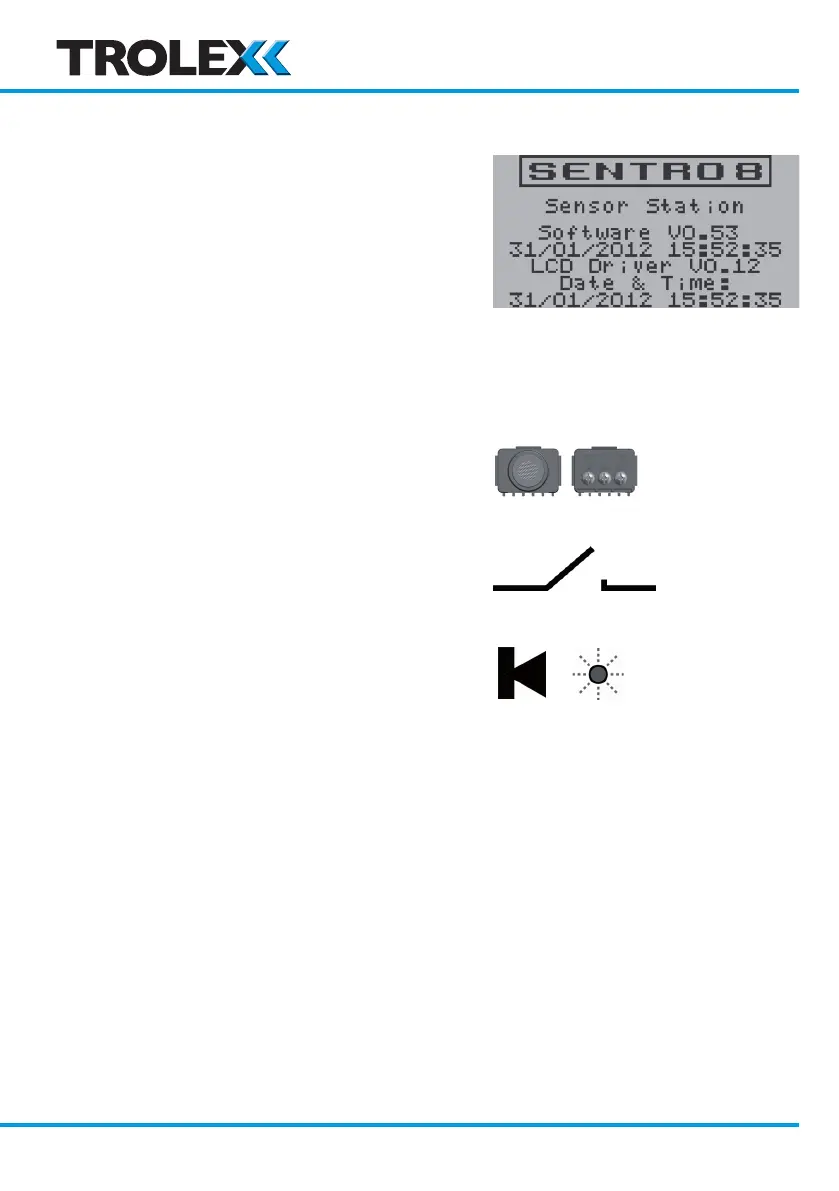

When the Sentro 8 Sensorstation is
initially powered-up the Start screen will
be displayed for a few seconds. The Start
screen displays basic information about the
Sentro system.
4.2.1 Base Screens
After initial power-up is completed the first of
the four Base Screens will appear. The four
Base Screens display the following:
• 1 & 2 - Sensor Inputs Overview - two
screens, one displaying channel group A
to D and the other channel group E to H
• 3 - Relay Outputs Overview - one
screen displaying the current state of the
four relays
• 4 - Audio/Visual Alarms Overview -
one screen displaying the current state
of the Audio/Visual Alarms
Use the navigation keypad to scroll through
the four Base Screens.
