Trolex Sentro 8 - Page 41

TX9165 User Manual
TX9165-UM-EN-07 41
1.
2.
3.
4.
1 and 2 - Sensor Inputs Overview

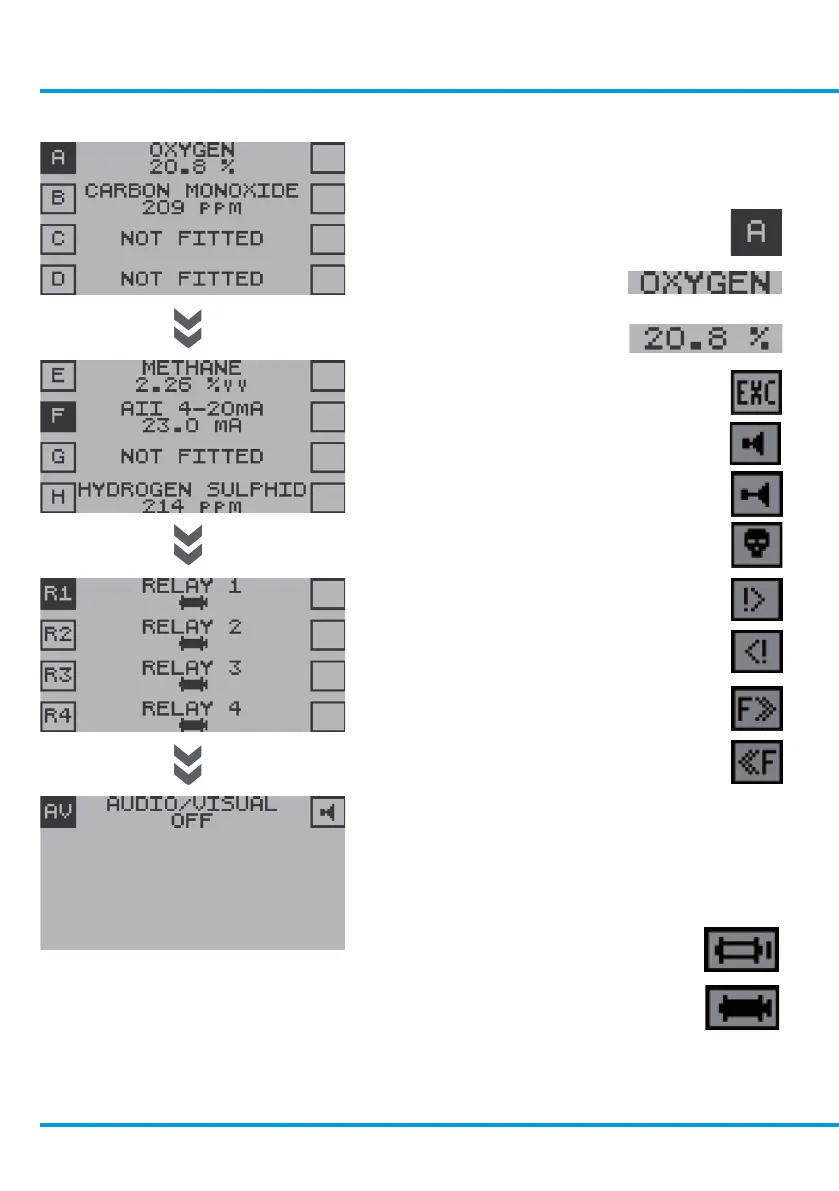

The Sensor Inputs Overview displays the
following information about the sensors fitted
to the Sentro 8 Sensorstation:
• Channel address
• Duty text
• Signal status with units
• Any channel exclusions
• Setpoint 1 alarm (SP1)
(General alarm)
• Setpoint 2 alarm (SP2)
(High alarm)
• Exposure alarms (TWA/STEL)
• Over range input signal
• Under range input signal
• High fault
• Low fault
3 - Relay Outputs Overview
The Relay Outputs Overview displays the
state of the of the four relay outputs on the
Sentro 8 Sensorstation:
• Output relay state
• Power-off
• Power-on
4 - Audio/Visual Alarms Overview
The Audio Visual Alarms Overview displays
the alarm status.
