76 TX9165-UM-EN-07
4.5.5 Calibrate PT100
If a PT100 Temperature rModule is fitted
Calibrate will appear in the menu. Trim the
signal to suit site measured conditions.
4.5.6 Setup of an On/Off Input
rModule
The On/Off Sentro rModules will respond
to signals from simple switching sensors
such as thermostats, pressure switches and
interlock limit switches. The switches may be
conventional contacts or NAMUR proximity
sensors.
Setup functions are the same as for
Analogue input rModules.

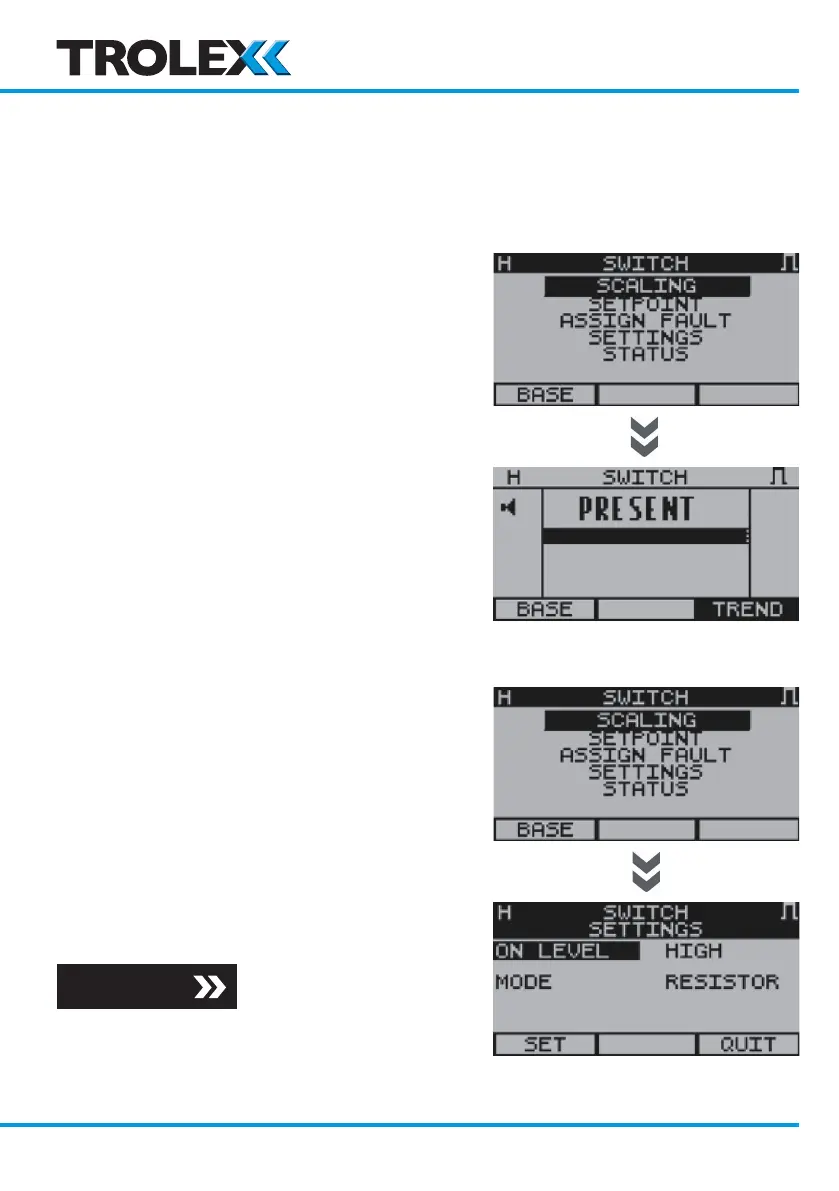

Mono View
The Mono View will display the Present/
Absent status of the input switch signal.
4.5.7 Setup of an On/Off Diode
Input rModule
The input is also configured to accept
an input from switching devices such
as pressure switches, limit switches,
thermostats, etc with a diode connected in
series at the remote point.
This rModule has the same basic functions
as the On/Off Input rModule.
In addition it will respond to Open Circuit
and Short Circuit conditions by generating a
discrete High Fault alarm.
Section 4.5.6
