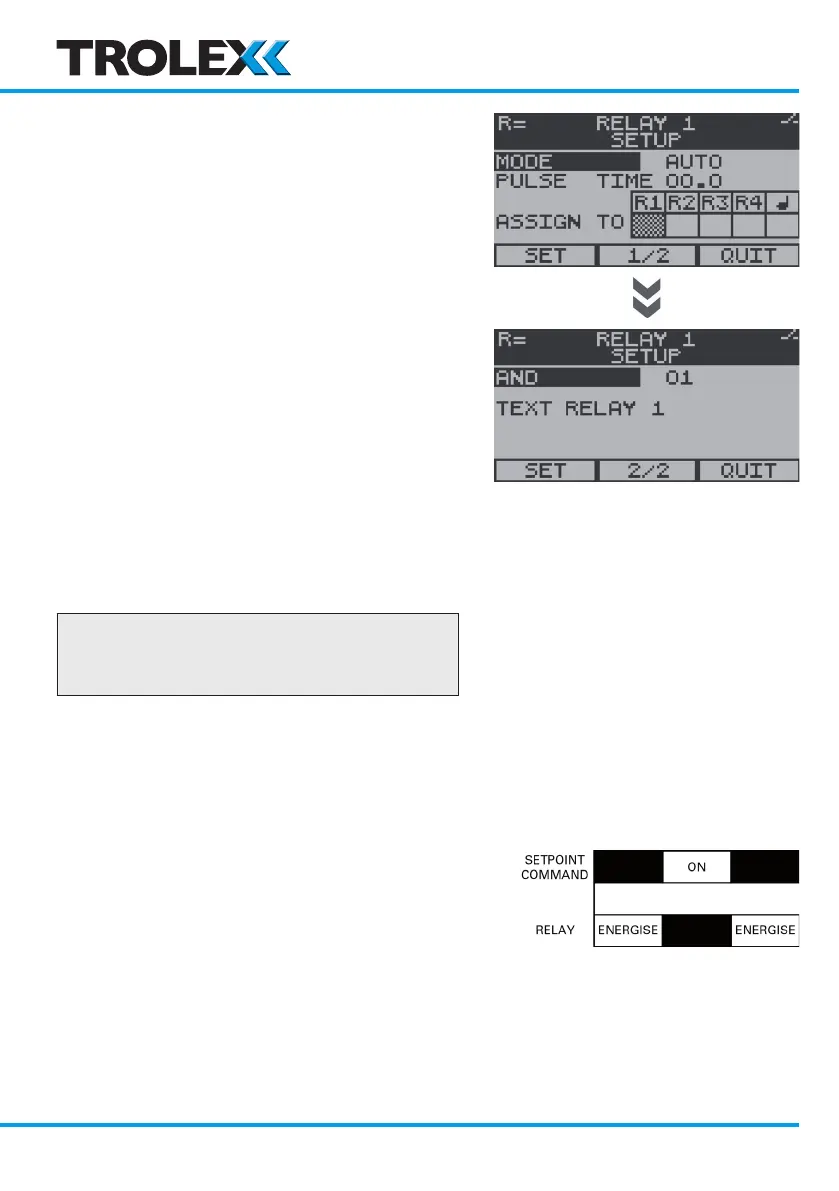

4.6 Output Relays Setup
The Sentro 8 Sensorstation is equipped with
four integral output relays for external alarm
and control purposes.
Initiating control commands can be assigned
to any of the four relays:
• From Setpoint 1 (SP1) (General alarm)
on modules A to H
• From Setpoint 2 (SP2) (High alarm)
on modules A to H
• From a Fault on modules A to H
• From other relays fault monitoring
• From the A/V Alarm fault monitoring
The response characteristics of each of the
relays can be setup according to functional
requirements.
Checkpoint
The LED relay indicator is on when the
relay is powered-down (Alarm State).
4.6.1 Mode
Each relay can be independently setup to
respond in three different ways.
Auto Reset
The output relay will power-down when the
Setpoint Command is activated On and
power-up when the Setpoint Command is
activated Off.
