Use the navigation keypad, scroll up or down
on the first digit to the required Level value.
Scroll right to the second digit. Repeat the
above for the second and third digit in Level
and select OK.
Use the navigation keypad, scroll to Set or
Quit and select OK.

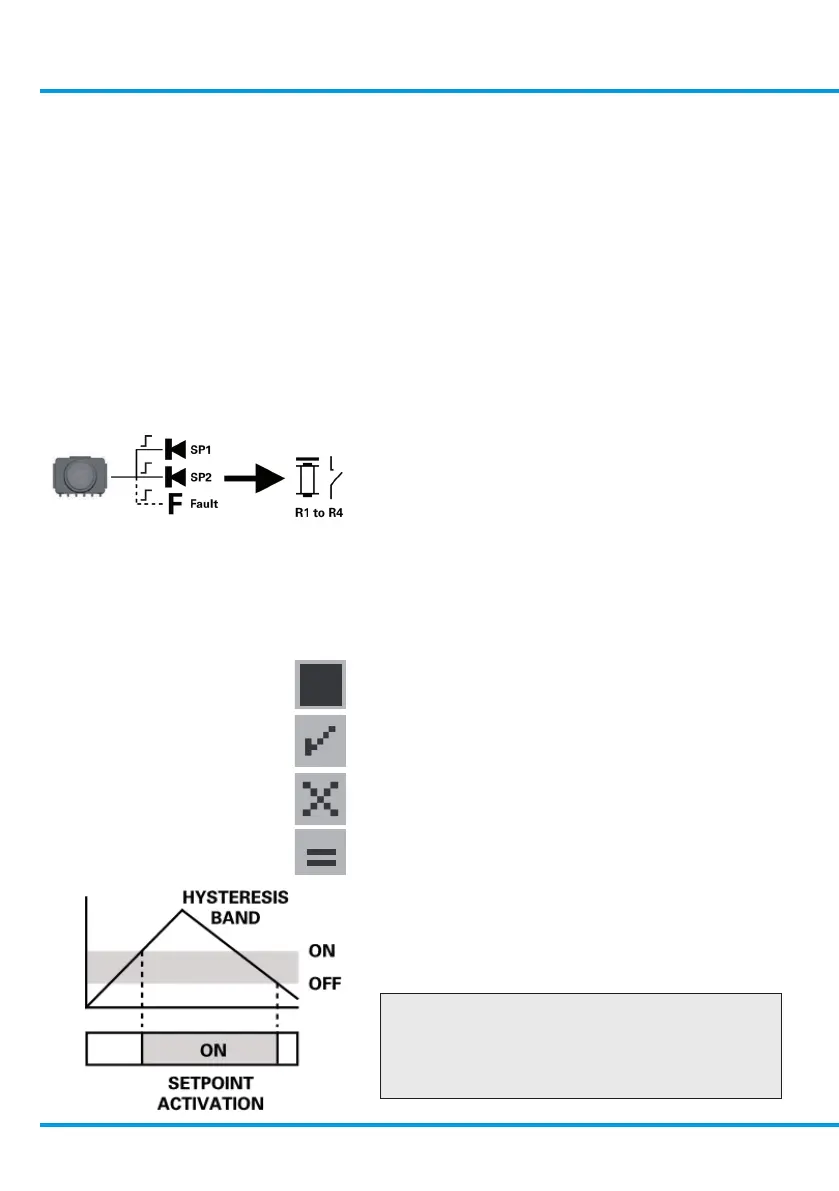

Assign To
The Setpoint On alarm state can be
assigned to the following:
• Relay 1 output
• Relay 2 output
• Relay 3 output
• Relay 4 output
• The on-board audio/visual alarm
The Assign To of Setpoint 1 (SP1) (General
alarm) and Setpoint 2 (SP2) (High alarm)
can be setup to preference. The screen
prompts are as follows:
• Cursor
• Power-up the selected relay
• Reset a latched relay
• Audio alarm severity
Hysteresis
Hysteresis is the deadband between the
setpoint Activating On and Activating Off
as the input signal increases and decreases.
Checkpoint
The Activating Off level is defined with
respect to the programmed Activating On
setpoint level.
